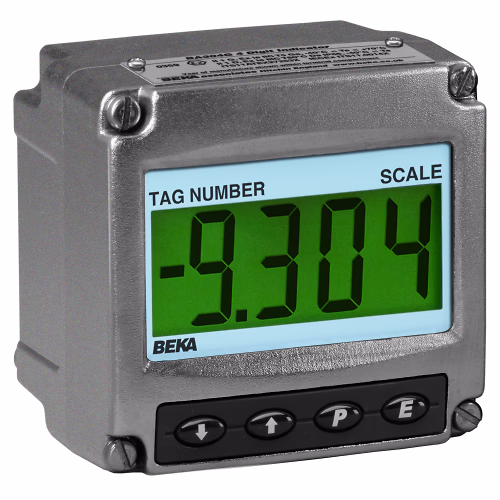

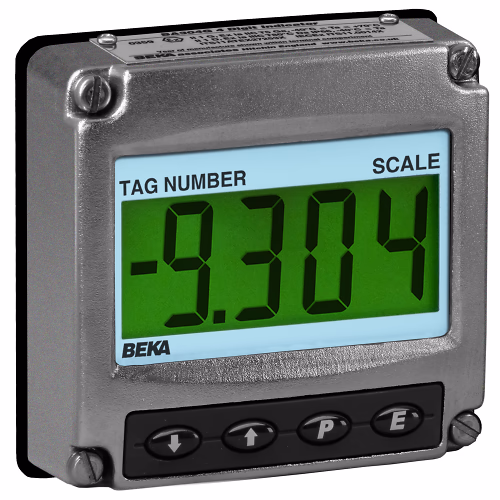

Rugged Stainless Steel 4/20mA Loop powered indicators, panel mounting – BA304G-SS-PM
Features:
Intrinsically safe and general purpose models
Component certified indicator enclosures permit installation in Ex e, Ex p or Ex t panel enclosure without invalidating the panel enclosure’s certification
Large non multiplexed displays, models with:
4 digits: 34mm or 15mm high5 digits: 29mm or 11mm high + bargraph
IP66 and impact resistant stainless steel front panels
-40°C to +70°C operation
Internal calibrator
Root extractor and lineariser
Tare function
Optional:
Backlight – may be loop or separately poweredAlarms
Display optionsProduct dimensionsRugged indicators product summaryApplication guide AG300
| Approvals | ATEX, IECEx |
|---|---|
| Display | 4 digits34mm high |
| Protection class | IP20, IP66 |
| Brand | Beka |
| Mounting | Panel |
| Options Available | Backlight, Alarms, Scale Labelling |
Product details
Rugged, intrinsically safe 4/20mA loop powered indicators with 316 stainless steel enclosures that provide front of panel impact and IP66 protection. Allows installation into an aperture in an Ex e, Ex p or Ex t certified panel enclosure without invalidating the panel enclosure’s certification.
Operating over an extended temperature range, the fourth generation design and extensive thermal and vibration testing provides maximum reliability supported by a three year guarantee.
No charge is made for factory configuration or printing slide-in scale card with customer specified information. Indicators can easily be recalibrated on-site.
