S15L Series In-Line Sensor Status Indicator – Banner – S15LGRPQ
S15L Series: 2-Color In-Line Sensor Status Indicator
Voltage: 10-30 V dc; Housing: Polyurethane; IP67
Input: PNP; Colors: Green Red
Male-Female 4-pin M12 Integral QD
| Color Option 2 | Red |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| Feature: Audible | No |
| Input Type | PNP |
| Pin / Wire Count | 4.0 |
| Animation Option 1 | Solid On |
| Animation Option 2 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 625 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Green |
| Environmental Rating | IP66; IP67 |
| EPLAN Original Sent Date | 12/07/2024 |
| EPLAN Status | Published |
| Eye Shield | No |

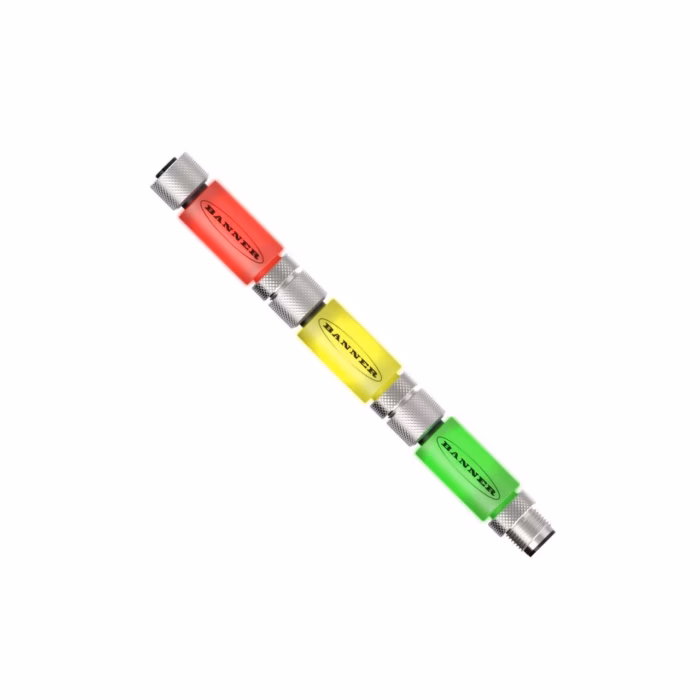

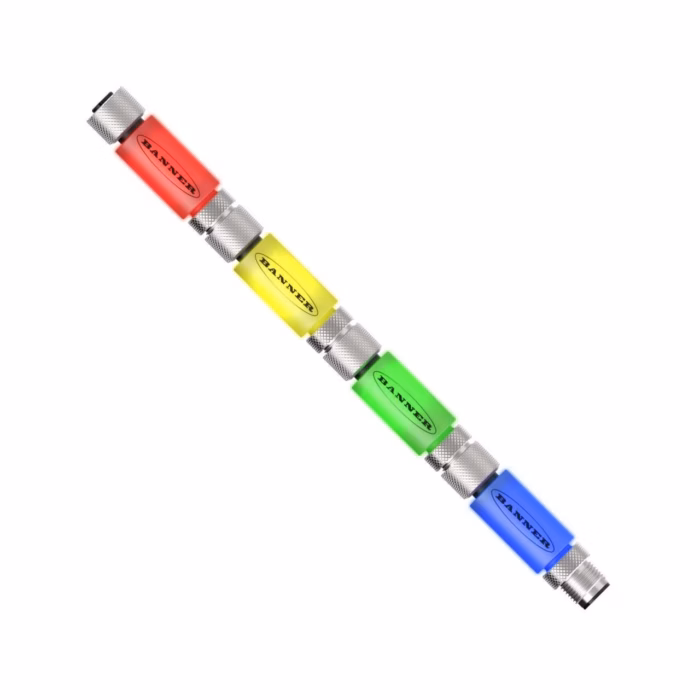

| Feature | Cascade, Quick Disconnect |
| Housing Style | Barrel – Straight |
| Indication | Yes |
| Item Status | RELEASED |
| Light type | No |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Mounting | No Thread |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 2 |
| Number of Conductors | 4.0 |
| Operating voltage | 10-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 15.0 X 58.0 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP66, IP67 |
| Radio interface | No |
| Receptacle housing material B | PUR |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 15 |
| Max Current Color (mA) | 15.0 |
| Storage Temp (C) | -40 to 70 |
| Options Available | 4-20mA Output |
Description
S15L Series: 2-Color In-Line Sensor Status Indicator
Voltage: 10-30 V dc; Housing: Polyurethane; IP67
Input: PNP; Colors: Green Red
Male-Female 4-pin M12 Integral QD
