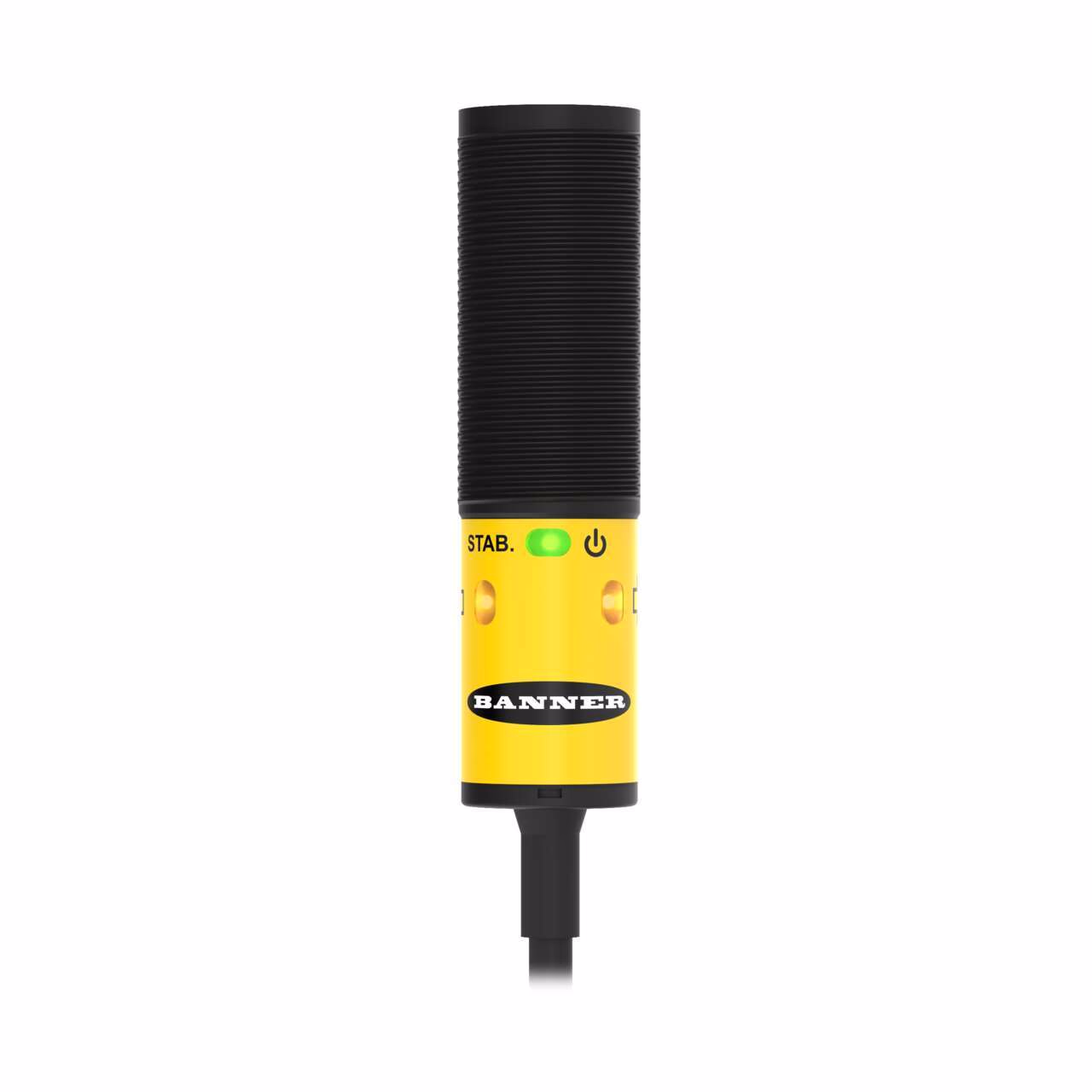

S18-2 Series Cost Effective Plastic 18 mm Barrel – Banner – S18-2VPLP-5M
S18-2 Series: Polarized Retroreflective
Range: 6 m; Input: 10-30 V dc
Outputs: complementary PNP
5 m 4-conductor PVC Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Outputs | PNP |
| Sensing Mode (General) | Retroreflective |
| Connection technology signal | Polarized |
| DeviceNet | No |
| Feature | Ecolab Certified |
| Homerun Exit Location | 1.5 ms ON, 0.75 ms OFF |
| Housing Style | Barrel |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 624 |
| Slot width (mm) | 5 |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 6000.0 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Barrel Diameter (mm) | 18.0 |
Description
S18-2 Series: Polarized Retroreflective
Range: 6 m; Input: 10-30 V dc
Outputs: complementary PNP
5 m 4-conductor PVC Cable
