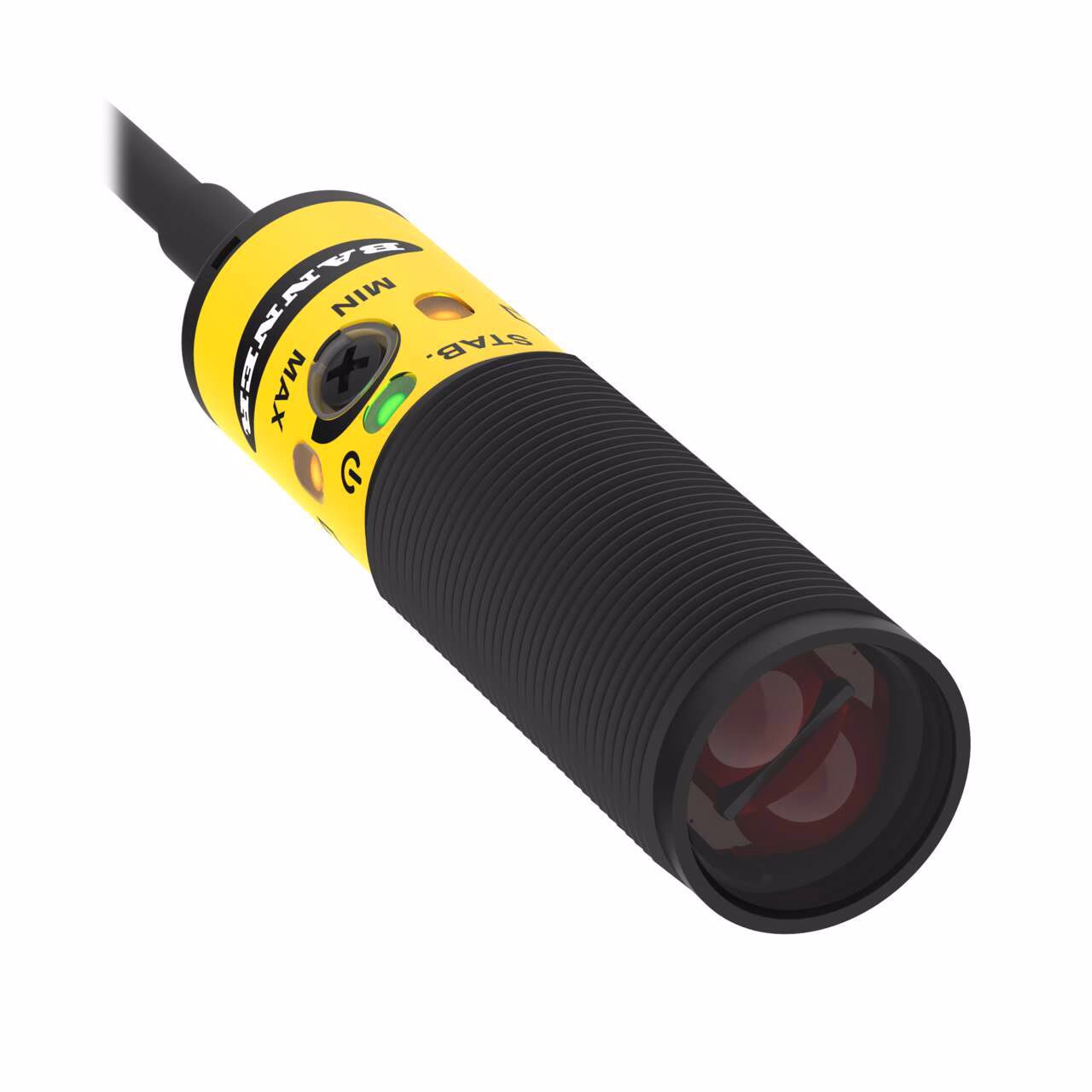

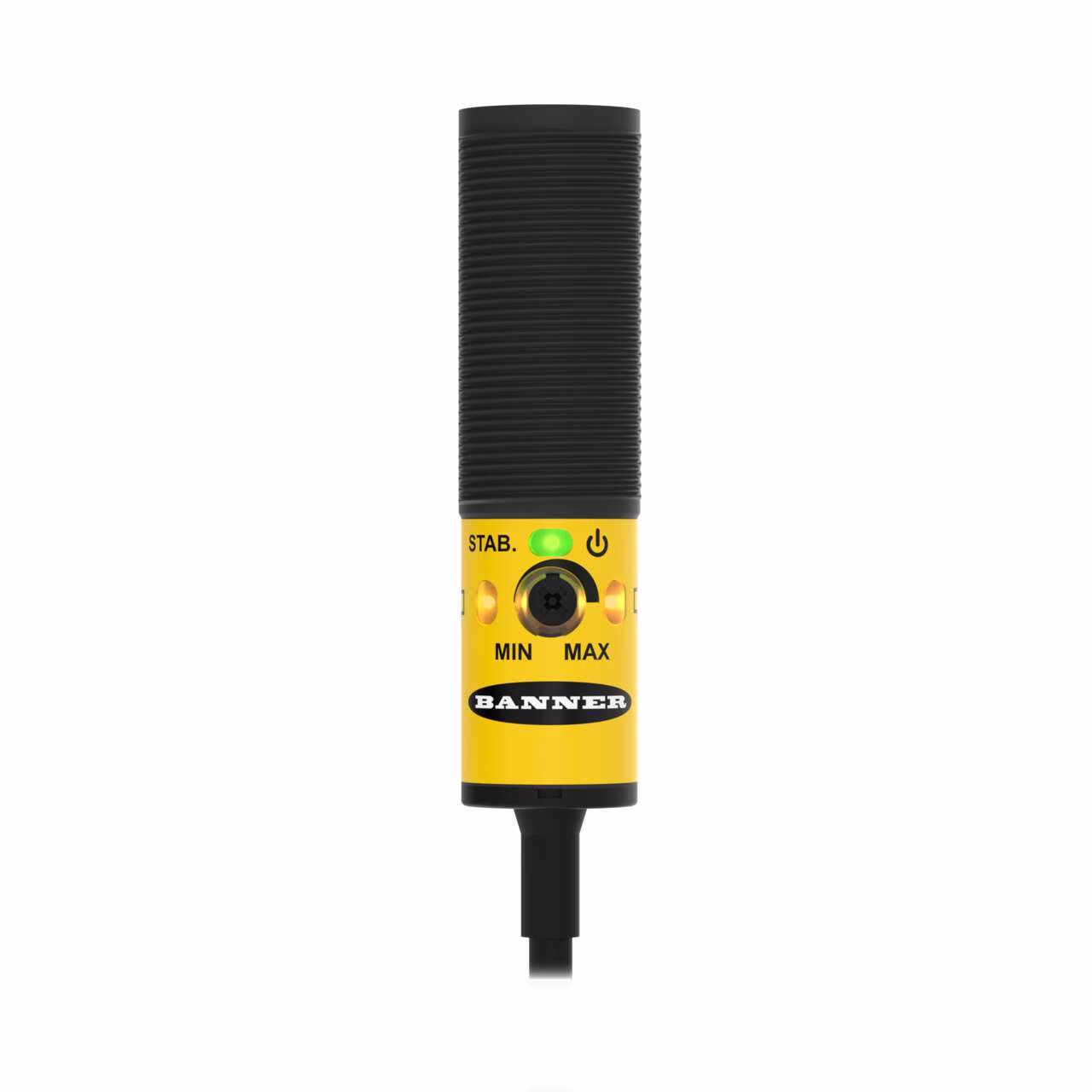

S18-2 Series Cost Effective Plastic 18 mm Barrel – Banner – S18-2VPRS-Q5
S18-2 Series: Receiver with pot
Range: variable to 25 m; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) 4-pin M12 PVC Pigtail QD
| Connection | Pigtail QD |
|---|---|
| Feature: Audible | No |
| Outputs | PNP |
| Sensing Mode (General) | Opposed |
| Adjustments | Potentiometer |
| Connection technology signal | Receiver |
| DeviceNet | No |
| Feature | Ecolab Certified, Quick Disconnect |
| Homerun Exit Location | 1.5 ms ON, 1 ms OFF |
| Housing Style | Barrel |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Opposed Mode Emitter/Receiver | Receiver |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Visible Red LED |
| Slot width (mm) | 0.15 |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 25000.0 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Barrel Diameter (mm) | 18.0 |
Description
S18-2 Series: Receiver with pot
Range: variable to 25 m; Input: 10-30 V dc
Outputs: Complementary PNP
150 mm (6 in) 4-pin M12 PVC Pigtail QD
