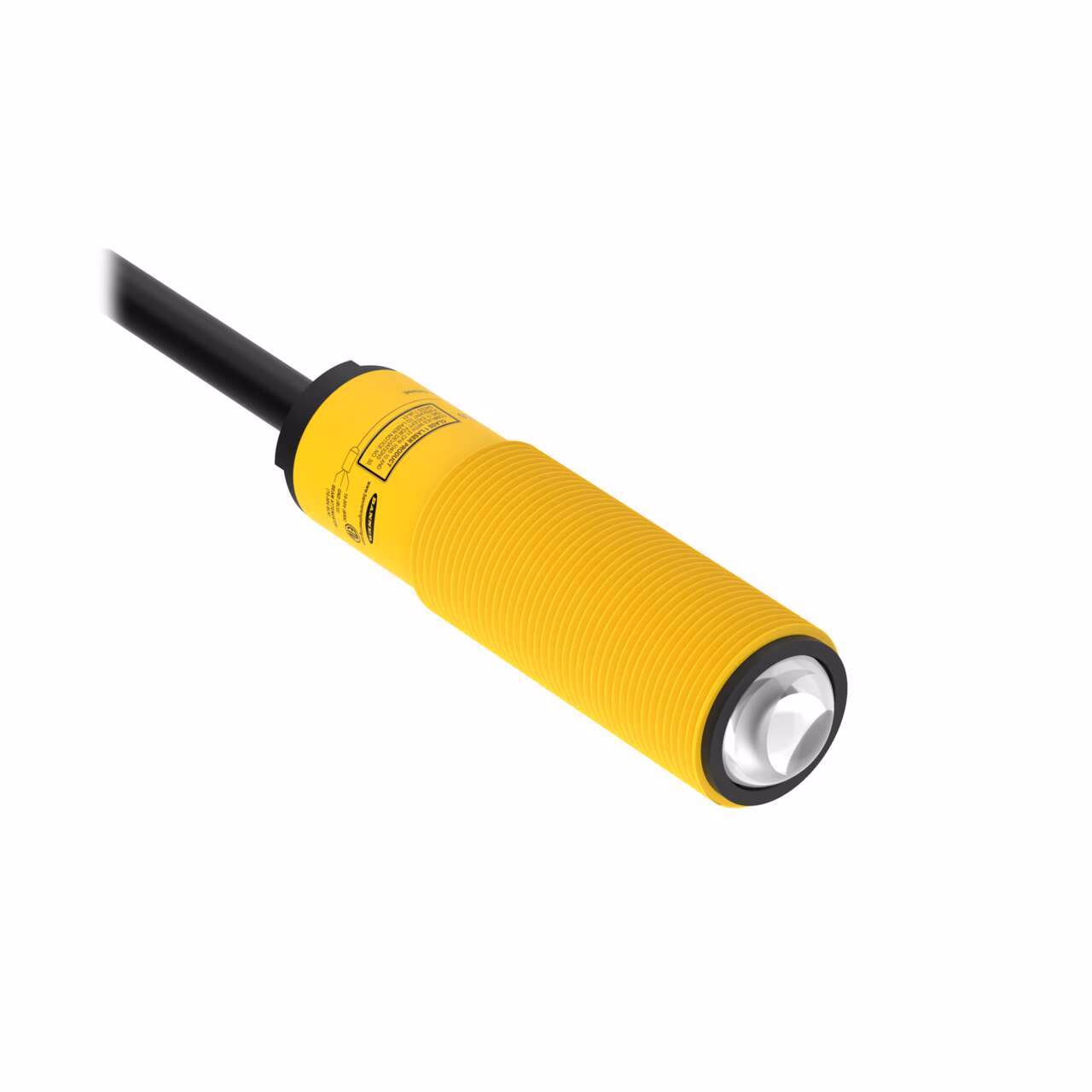

S186ELD Plastic Barrel Laser Emitter – Banner – S186ELD W/30
S186ELD Laser: Emitter
Range: depends on receiver; Input: 10-30 V dc
Output: Not Applicable
9 m (30 ft) Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Laser Classification | Class 1 |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Laser Emitter |
| DeviceNet | No |
| Feature | Ecolab Certified, Washdown Rated |
| Housing Style | Barrel |
| Indicator | LEDs |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Lens Material | Polycarbonate |
| Number of pins | 2 |
| Operating voltage | 10-30 V dc |
| Opposed Mode Emitter/Receiver | Emitter |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Visible Red Laser |
| Min Op. Temperature (C) | -40 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 9 |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 15000 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Barrel Diameter (mm) | 18 |
| Repeatability (µs) | 375 |
| Small Visible Spot | Laser |
Description
S186ELD Laser: Emitter
Range: depends on receiver; Input: 10-30 V dc
Output: Not Applicable
9 m (30 ft) Cable
