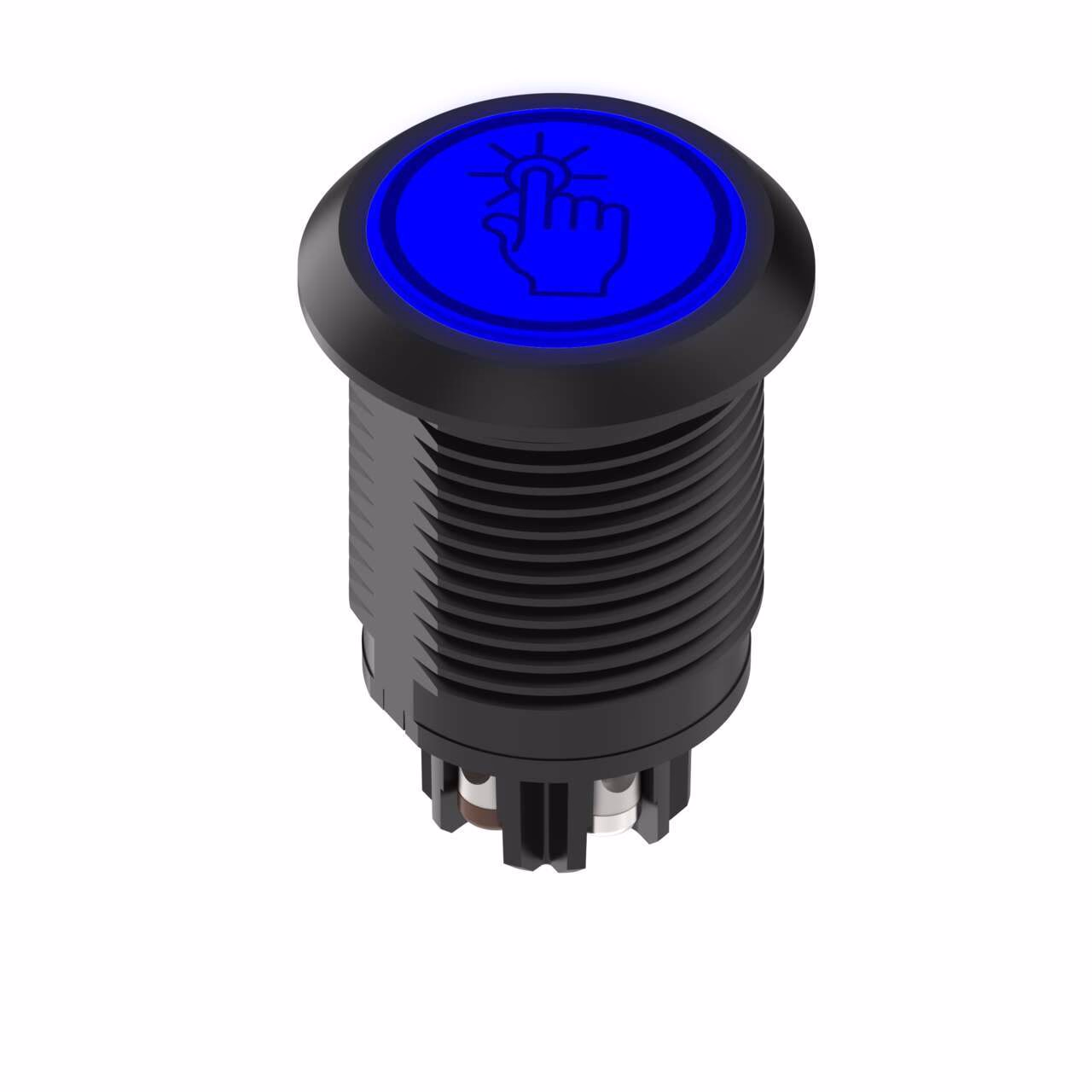

S22 Indicators, Touch Buttons, and Pick-to-Light Devices – Banner – S22AMTSBXDT
S22 Pro Touch Series: 1-color RGB Touch Sensor
Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K
Output: Bipolar, NO, Momentary; Color: Blue
5-screw Terminal Wiring
| Color Technology | RGB Configurable |
|---|---|
| Connection | Terminal |
| Feature: Audible | No |
| Input Type | Bimodal (PNP/NPN) |
| Job Light | Blue |
| Pick-to-Light Function | D |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | Yes |
| Actuation | Yes |
| Button Operation | Momentary |
| Color 1 - Wavelength/Color Temp/Coordinates | 465 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Blue |
| Environmental Rating | IP66; IP67; IP69K |
| Eye Shield | No |
| Feature | Washdown Rated |
| Housing Style | Barrel Mount – Flat Window |
| Indication | No |
| Item Status | RELEASED |
| Light type | No |
| Lumens Color 1 | 0.03 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Mounting | M22 x 1.5 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 5.0 |
| Operating mode | Capacitive Touch |
| Operating voltage | 10-30 V dc |
| Operation | Normally Open |
| Output type | Bipolar (NPN & PNP) |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 27.3 x 39.1 |
| Power Good Output | DC |
| Protection class shaft | IP66, IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 22 |
| Max Current Color (mA) | 80.0 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 20.0 |
| Max Output Response Time (ms) | 300.0 |
| Options Available | 4-20mA Output |
Description
S22 Pro Touch Series: 1-color RGB Touch Sensor
Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K
Output: Bipolar, NO, Momentary; Color: Blue
5-screw Terminal Wiring
