S22 Indicators, Touch Buttons, and Pick-to-Light Devices – Banner – S22AMTSRGCQ

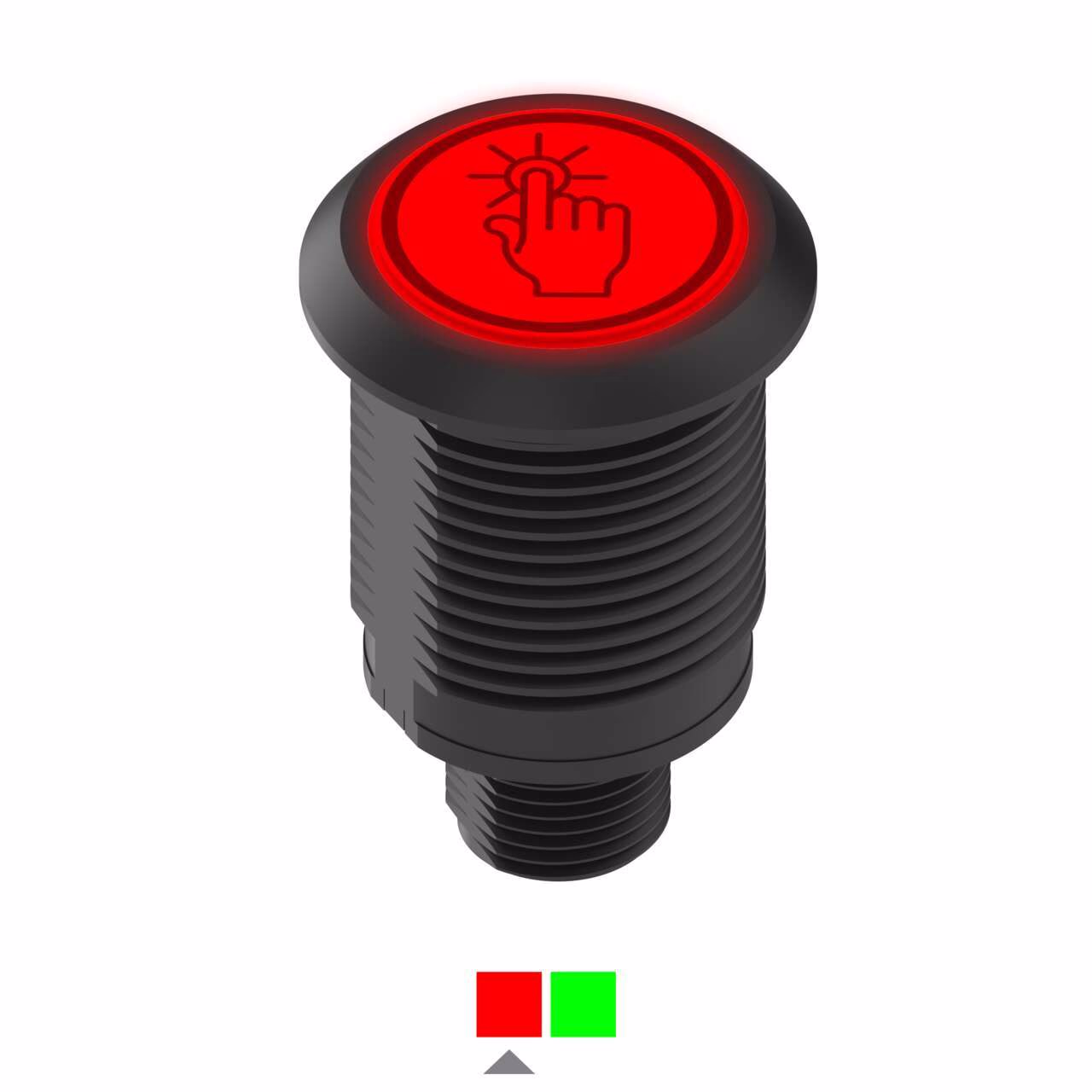

S22 Pro Touch Series: 2-color RGB Touch Sensor
Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K
Input/Output: Bimodal, NO, Momentary; Colors: Red Green
5-pin M12 Integral QD
| Acknowledge (Sense) Light | Red |
|---|---|
| Color Option 2 | Green |
| Color Technology | RGB Configurable |
| Connection | Integral QD |
| Discrete | Yes |
| Feature: Audible | No |
| Input Type | Bimodal (PNP/NPN) |
| Job Light | Green |
| PICK-IQ (Modbus RTU) | No |
| Pick-to-Light Function | C |
| Pin / Wire Count | 5.0 |
| Power Over Ethernet (PoE) | No |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | Yes |
| Actuation | Yes |
| Button Operation | Momentary |
| Color 1 - Wavelength/Color Temp/Coordinates | 625 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 527 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Red |
| Device type | Touch Button |
| Environmental Rating | IP66; IP67; IP69K |
| EtherNet/IP | No |
| Eye Shield | No |
| Feature | Quick Disconnect, Washdown Rated |
| Housing Style | Barrel Mount – Flat Window |
| Indication | No |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lumens Color 1 | 0.08 |
| Lumens Color 2 | 0.18 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Modbus RTU | No |
| Mounting | M22 x 1.5 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 2 |
| Number of Conductors | 5.0 |
| Operating mode | Capacitive Touch |
| Operating voltage | 10-30 V dc |
| Operation | Normally Open |
| Output type | Bipolar (NPN & PNP) |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 27.3 x 40.2 |
| Port | M12 |
| Power Good Output | DC |
| Programmable | Yes |
| Protection class shaft | IP66, IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 22 |
| Max Current Color (mA) | 80.0 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 20.0 |
| Max Output Response Time (ms) | 300.0 |
| Application.1 | Pick-to-Light |
| Options Available | 4-20mA Output |
Description
S22 Pro Touch Series: 2-color RGB Touch Sensor
Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K
Input/Output: Bimodal, NO, Momentary; Colors: Red Green
5-pin M12 Integral QD
