S4B Series Mute Arm Sensor Kits – Banner – S4BA-MT-LPQ20
S4B Safety Light Curtain, Accessory

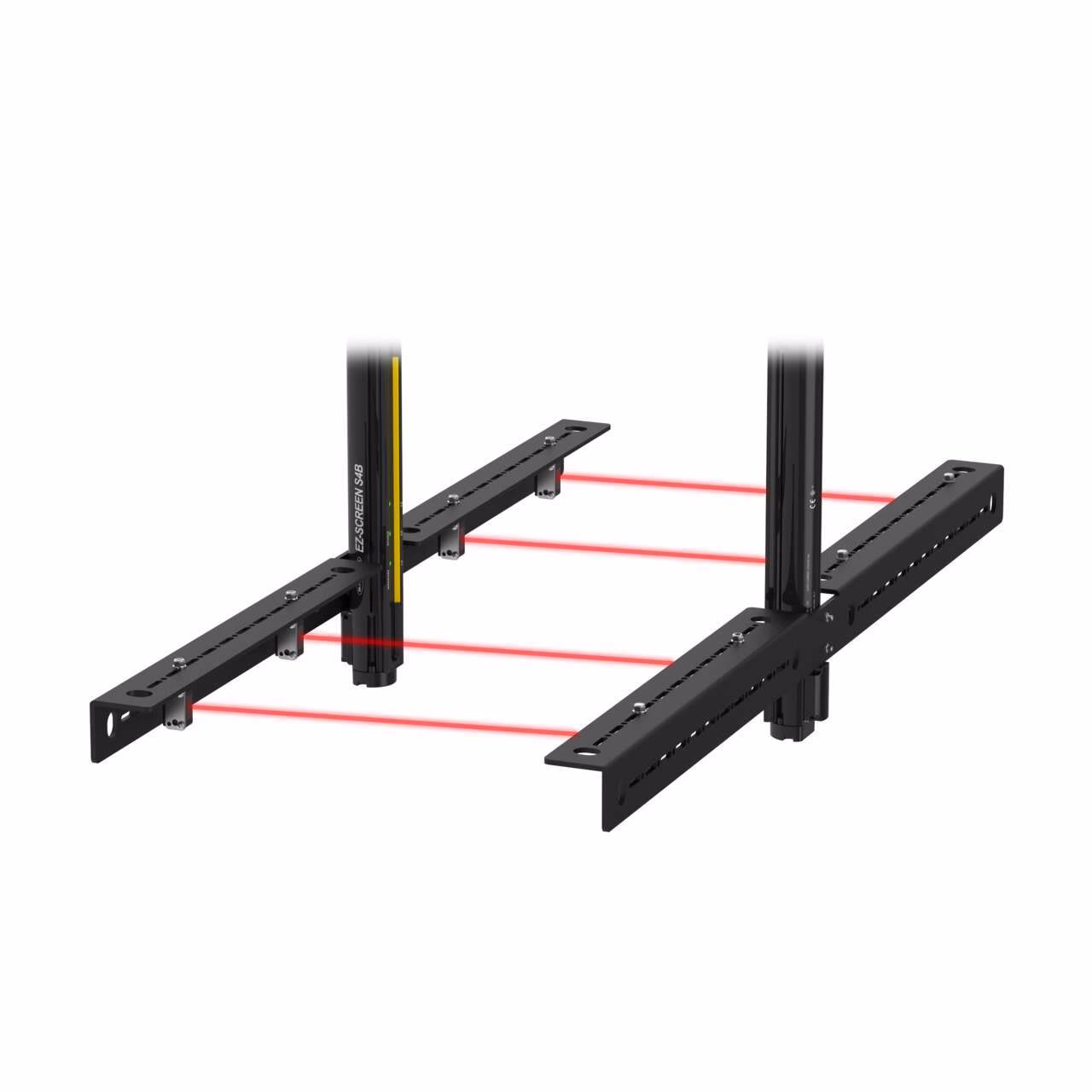

Mute Arm Kit: T Configuration; Double Sided Left and Right

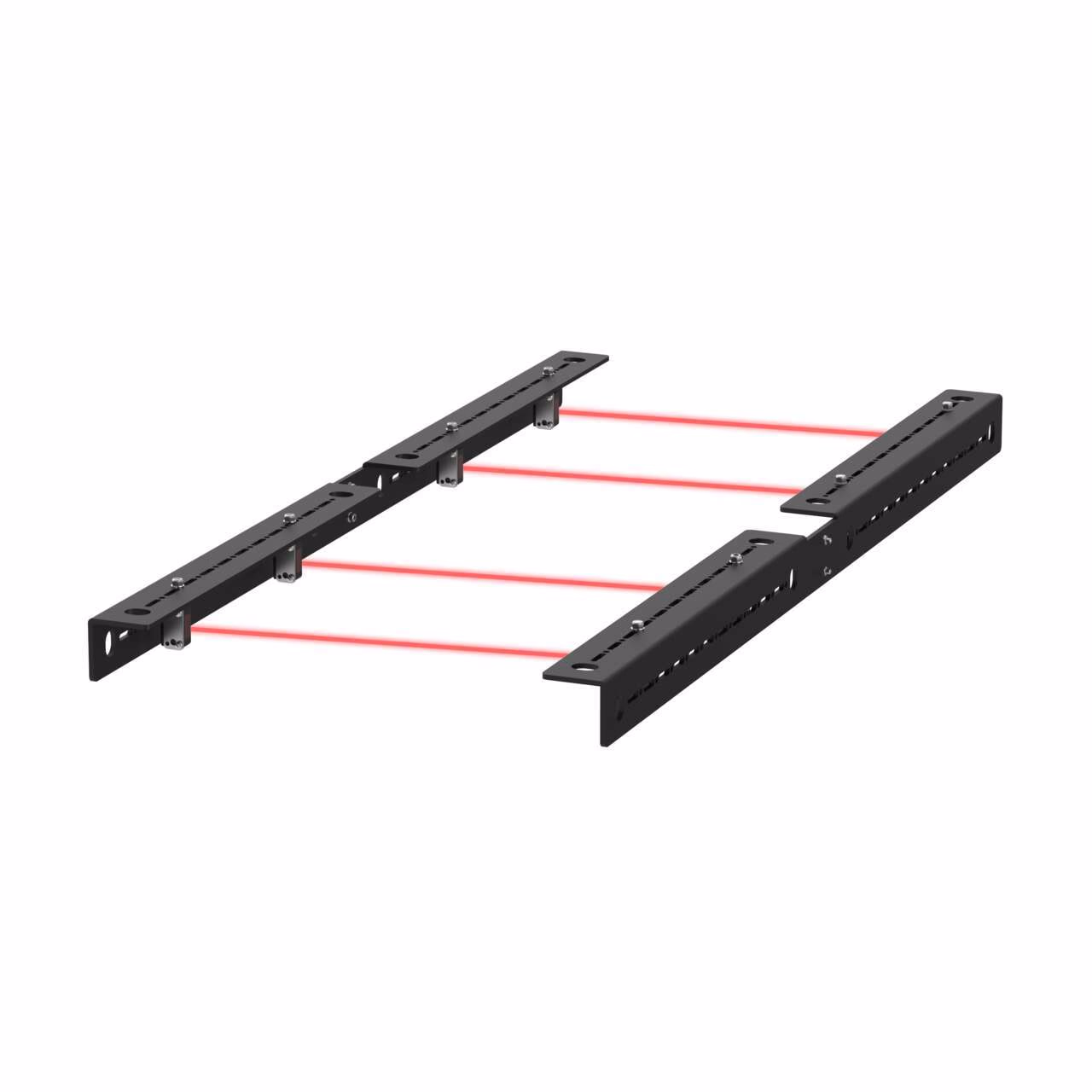

Includes: One extended Sensor Arm with Four Q20-2 Sensors Installed on the Arm
One extended Reflector Arm with Four Reflectors Installed on the Arm, and Mounting Hardware
| Connection | Pigtail QD |
|---|---|
| Outputs | PNP |
| QD Type/Cable Length | M12 |
| Feature | Quick Disconnect |
| Homerun Exit Location | 0.6 |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Sensing Beam | Visible Red LED |
| Shock | 10..55 Hz |
| Vibration | 0.35 mm |
| Min Op. Temperature (C) | -25.0 |
| NEMA / UL Type Rating | NEMA 6 |
| Delay at Power-up (ms) | 120 |
| Max Sensing Distance (mm) | 5000.0 |
| Max Op. Temperature (C) | 70.0 |
| Dimensions WxDxL (mm) | 50 x 50 x 900 |
| Number of Reflectors | 4.0 |
| Number of Sensors | 4.0 |
| SF-Water Detection | No |
| Number of Reflector Arms | 1.0 |
| SF-Intrinsically Safe | No |
| Number of Sensor Arms | 1.0 |
| Repeatability | 144.0 |
| SF-Alarm/Health Output | No |
| SF-Remote Teach | No |
| Max Op Relative Humidity [%] | 95% @ 50°C |
| Configuration | T Configuration |
Description
S4B Safety Light Curtain, Accessory
Mute Arm Kit: T Configuration; Double Sided Left and Right
Includes: One extended Sensor Arm with Four Q20-2 Sensors Installed on the Arm
One extended Reflector Arm with Four Reflectors Installed on the Arm, and Mounting Hardware
