SAB Sensor Array Bar Series – Banner – SAB-497AB1LP6-Q5E

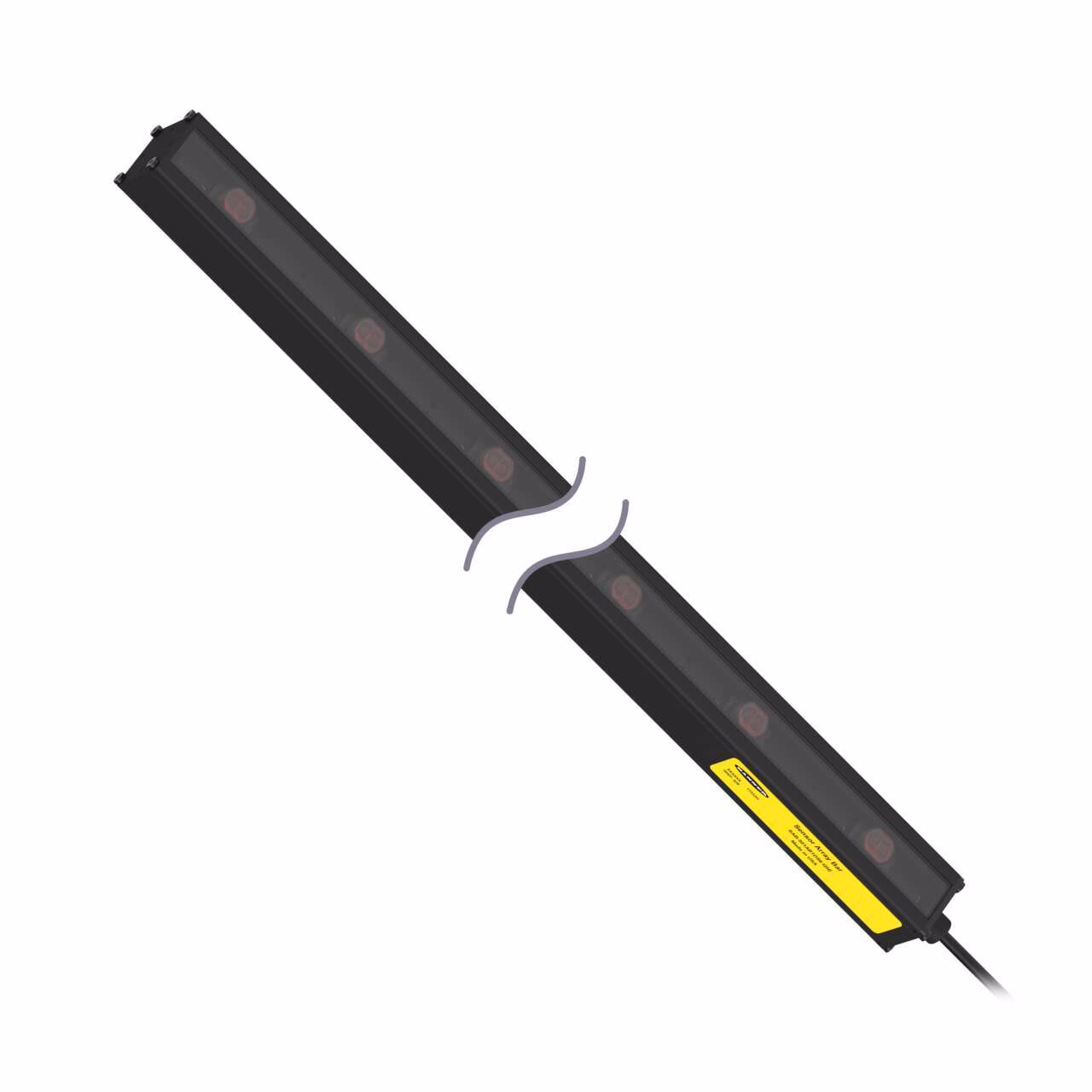

WORLD-BEAM QS18 Series: 6 Beam Sensor Array
Polarized Retro
Range: 1 m; Input: 10-30 V dc
Outputs: Bipolar NPN and PNP Light Operate
150 mm (6 in) 4-pin M12 Pigtail QD
| Connection | Pigtail QD |
|---|---|
| Max Op. Temperature [?C] | 55.0 |
| Max Sensing Range (mm) | 1000.0 |
| Min Op. Temperature [?C] | -20.0 |
| Outputs | Bipolar (NPN & PNP) |
| Power Supply/Supply Voltage | 10-30 V dc |
| Feature | Quick Disconnect |
| Homerun Exit Location | 1.5 |
| Housing Style | Sensing Array Bar |
| Indicator | Indicator LEDs |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of beams | 6.0 |
| Number of pins | 4 |
| Operation | Light Operate |
| Port | M12 |
| Protection class shaft | IP50 |
| Receptacle housing material B | Black Anodized Aluminum |
| Slot width (mm) | 0.2 |
| Max op. relative humidity (%).1 | 95% @ 50°C |
| Slot Overall Depth (mm) | 36.0 |
| Slot Depth/Array Length (mm) | 497.0 |
| Distance to First Beam [mm] | 42.0 |
| Beam to Beam Spacing [mm] | 82.55 |
Description
WORLD-BEAM QS18 Series: 6 Beam Sensor Array
Polarized Retro
Range: 1 m; Input: 10-30 V dc
Outputs: Bipolar NPN and PNP Light Operate
150 mm (6 in) 4-pin M12 Pigtail QD
