Safety Light Curtain SLC4P24-160P44
Safety Light Curtain
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Approvals | CE, cULus |
| Cable length (m) | 0.3 |
| Cascadable | No |
| Category acc. to ISO 13849-1:2008 | 4 |
| Connector type | M12 × 1 |
| Design | Rectangular |

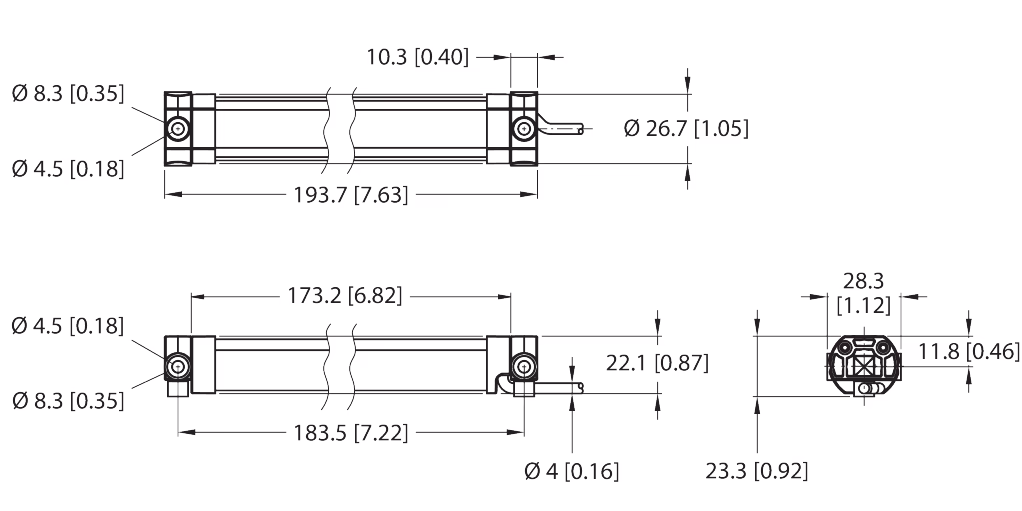

| Dimensions | 22.1 mm x 26.7 mm x 173.2 mm |
| Electrical output | Cable with connector |
| Function | Light screen |
| Housing material | Plastic |
| Housing quality | PC |
| Light type | IR |
| Max. range (mm) | 2000 |
| Optical resolution (mm) | 24 |
| Output function | 2 × PNP |
| PL acc. to EN ISO 13849-1 | Level e |
| Protection class | IP65 |
| Scan field (mm) | 160 |
| SIL acc. to IEC 61508 | 3 |
| Start/Restart interlock | no |
| Switching element function | NC contact |
| Wavelength (nm) | 860 |
| With muting function | No |
| Coding level/tamper protection | Uncoded |
