Safety Light Curtain SLLCE14-1190-S
Safety Light Curtain
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Cascadable | Yes |
| Design | Rectangular |

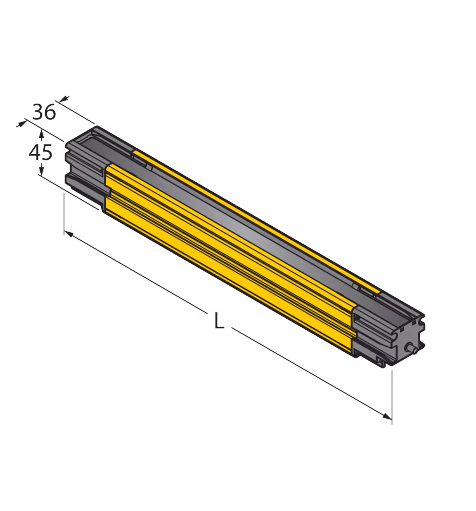

| Dimensions | 45 mm x 36 mm x 1195 mm |
| Electrical output | Flat connector |
| Function | Light screen |
| Housing material | Metal |
| Housing quality | AL |
| Light type | IR |
| Max. range (mm) | 12000 |
| Number of beams | 136 |
| Optical resolution (mm) | 14 |
| Protection class | IP67 |
| Scan field (mm) | 1190 |
| Start/Restart interlock | no |
| With muting function | No |
