Safety Light Curtain SLPK14-690P88-1RE15
Safety Light Curtain
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | |
| Cable length (m) | 0.3 |
| Cascadable | No |
| Connector type | M12 × 1 |
| Design | Rectangular |

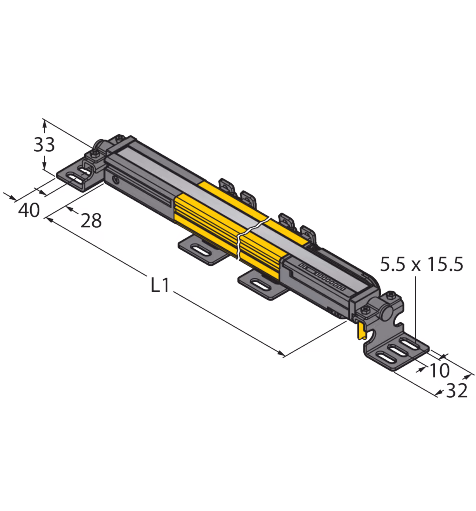

| Dimensions | 26 mm x 28 mm x 689 mm |
| Electrical output | Cable with connector |
| Function | Light screen |
| Housing material | Metal |
| Light type | IR |
| Max. range (mm) | 7000 |
| Number of beams | 69 |
| Optical resolution (mm) | 14 |
| Output function | 2 × PNP |
| Protection class | IP65 |
| Scan field (mm) | 690 |
| Start/Restart interlock | adjustable |
| Switching element function | 2 x NC contact |
| Wavelength (nm) | 850 |
| With muting function | No |
