Safety Technology SI-HGZ63FQDR
Safety Technology
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cascadable | No |
| Category acc. to ISO 13849-1:2008 | 4 |
| Connector type | M12 × 1 |
| Design | Rectangular |

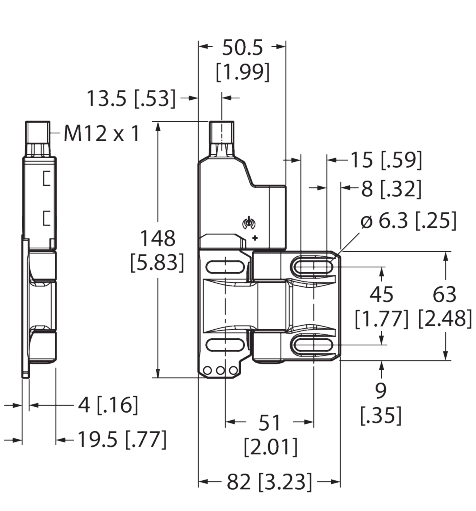

| Dimensions | 82 mm x 19.5 mm x 147 mm |
| Electrical output | Connector |
| Function | Hinge safety switch |
| Housing material | Die-cast zinc |
| Housing quality | ZN |
| Output function | Potential-free |
| PL acc. to EN ISO 13849-1 | Level e |
| Protection class | IP67 |
| SIL acc. to IEC 61508 | 3 |
| Special features | Wash down |
| Switching element function | 2 x NC contact |
| Coding level/tamper protection | Uncoded |
