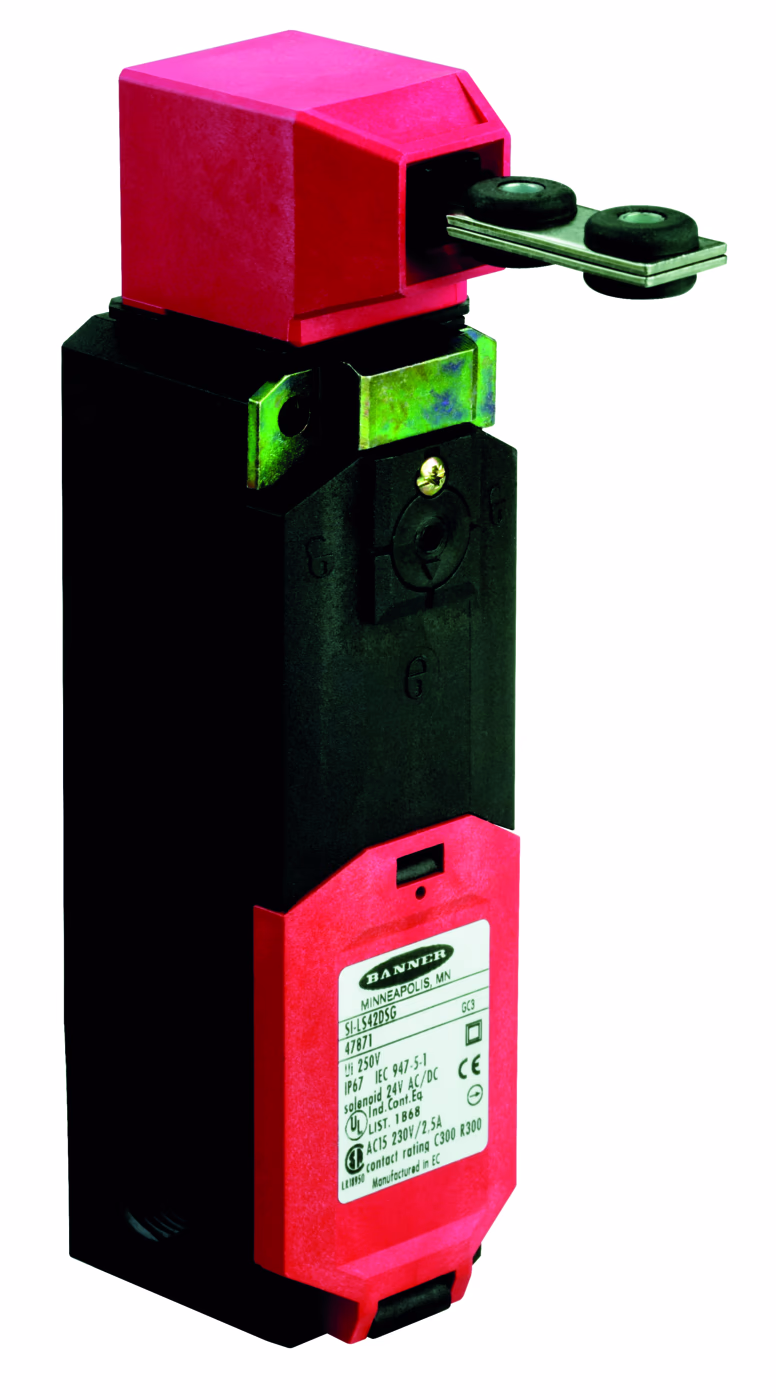

Safety Technology SI-LS42DSH
Safety Technology
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cascadable | No |
| Category acc. to ISO 13849-1:2008 | 4 |
| Connector type | Terminal box with cable gland |
| Design | Rectangular |
| Electrical output | Terminal chamber |
| Function | Guard locking safety switch |
| Housing material | Plastic |
| Housing quality | Thermoplastic material |
| Output function | Potential-free |
| PL acc. to EN ISO 13849-1 | Level e |
| Protection class | IP65 |
| SIL acc. to IEC 61508 | 3 |
| Special features | Lockable |
| Switching element function | 2 x NC contact |
| Coding level/tamper protection | Low |
