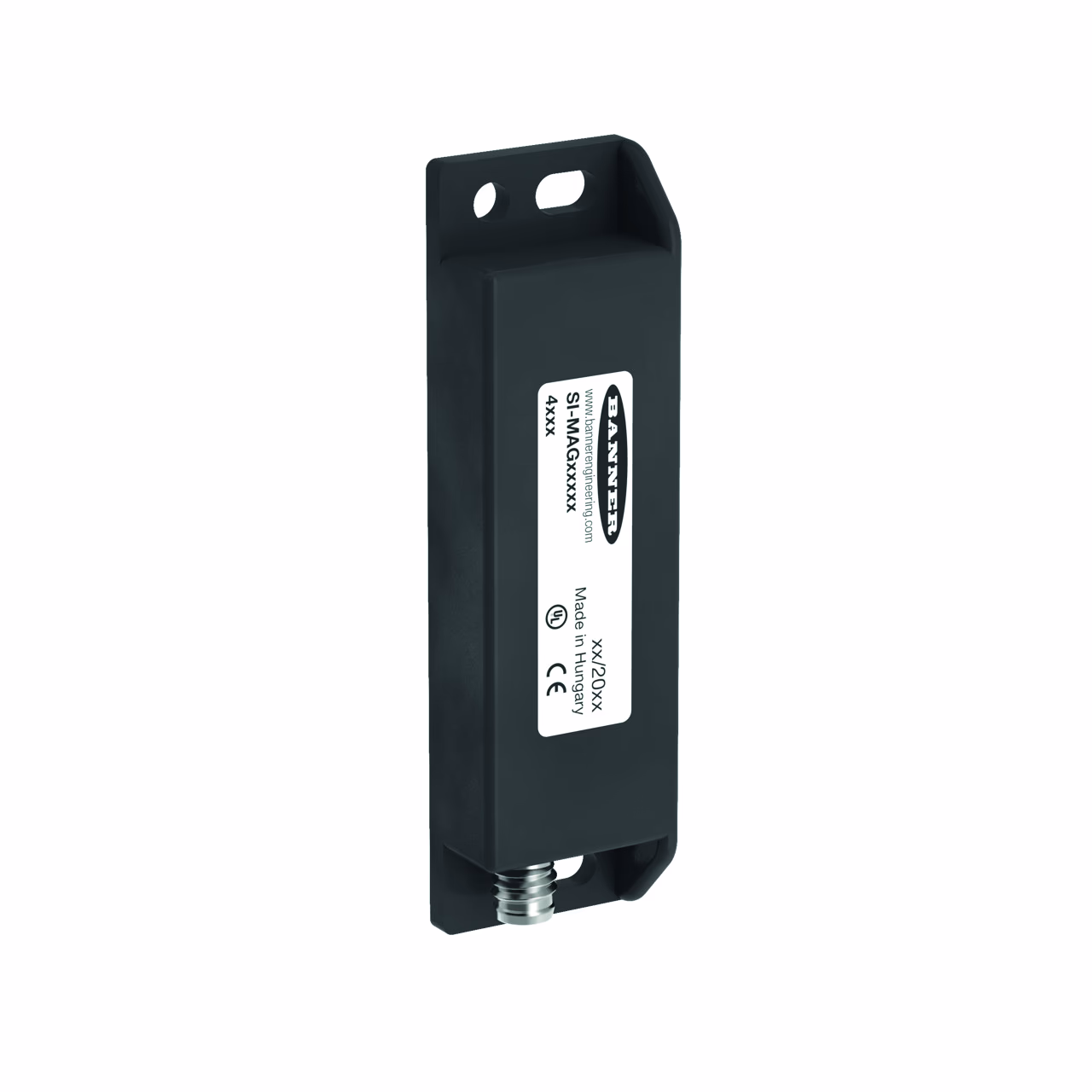

Safety Technology SI-MAGB1SMQD
Safety Technology
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Cascadable | No |
| Category acc. to ISO 13849-1:2008 | 4 |
| Connector type | M8 x 1 |
| Design | Rectangular |
| Electrical output | Cable with connector |
| Function | Magnetic safety switch |
| Housing material | Plastic |
| Housing quality | Thermoplastic material |
| Max. range (mm) | 14 |
| Output function | Potential-free |
| PL acc. to EN ISO 13849-1 | Level e |
| Protection class | IP67 |
| SIL acc. to IEC 61508 | 3 |
| Special features | Wash down |
| Switching element function | NO/NC |
| Coding level/tamper protection | Low |
