Sensing Tip TGRM8MM
Sensing Tip
| Ambient temperature max. (°C) | 249 |
|---|---|
| Ambient temperature min. (°C) | -140 |
| Construction size | Ø 9.5 mm |
| Design | Smooth barrel |
| Detection type | medium contact |

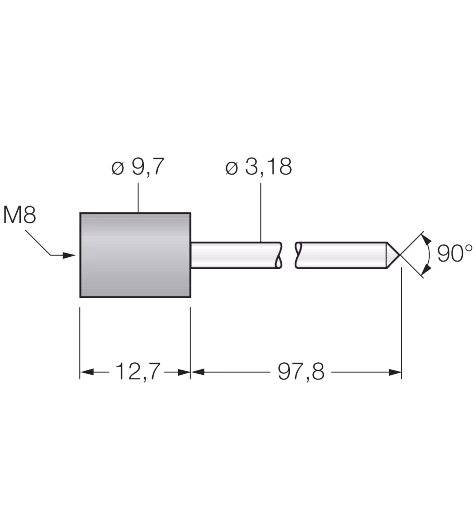

| Dimensions | 9.5 mm x 113 mm |
| Function | Optical fiber end piece |
| Function accessories for | Photoelectric sensors |
| Housing material | Glass, Stainless steel |
| Materials (contact with media) | Glass |
| Measuring principle | Optical |
| Media temperature max. (°C) | 249 |
| Media temperature min. (°C) | -140 |
| Medium | liquids |
| Process connection | M8 × 1 female thread |
| Protection class | IP67 |
