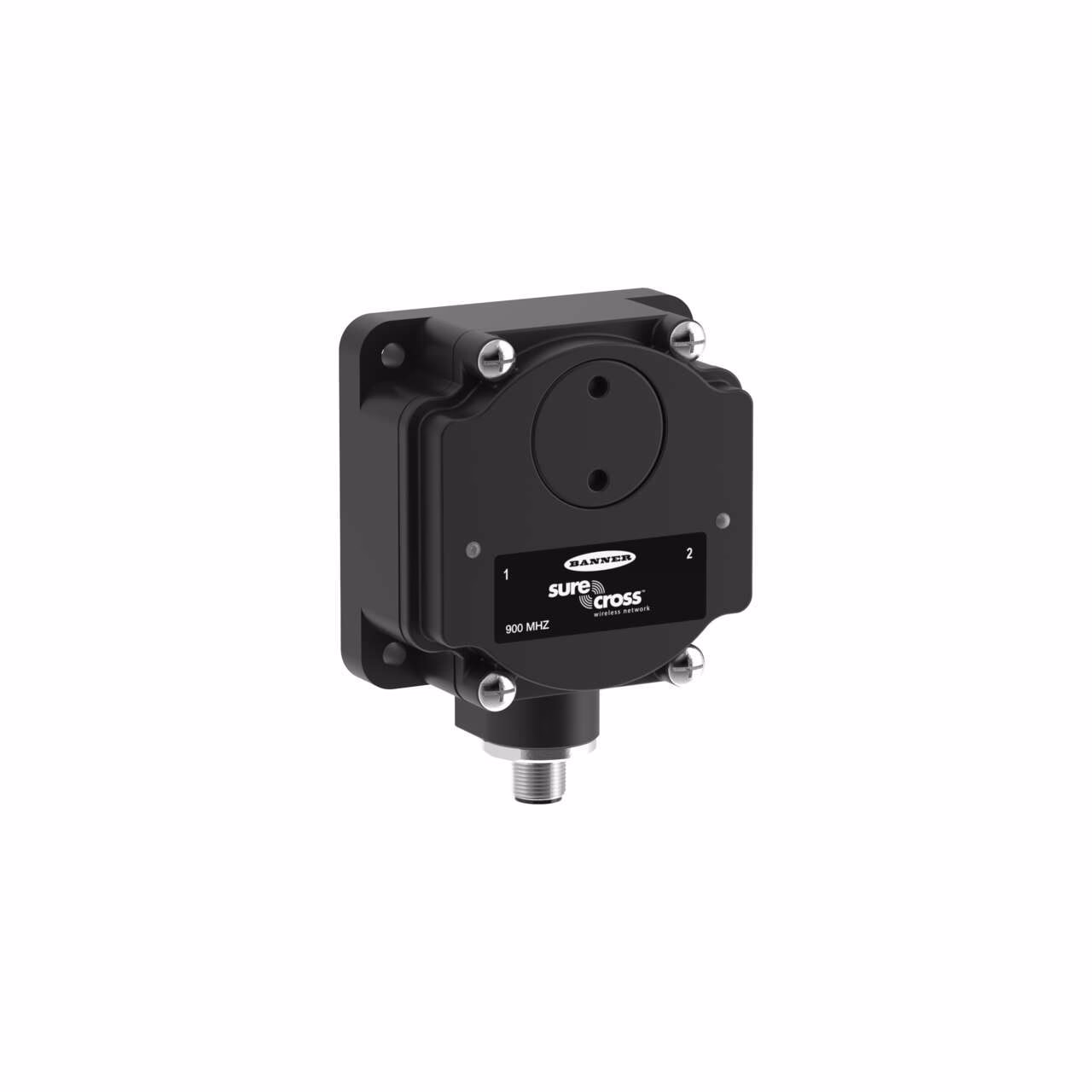

Serial Data Radios – Banner – DX80SR9M-HL
Serial Data Radio Multihop 900 MHz 1 W
Internal Antenna
No Inputs or Outputs
5-pin M12 Integral QD
| 1-wire Serial Interface | No |
|---|---|
| Analog Inputs | No |
| Analog Outputs | No |
| Connection | Integral QD |
| Discrete Inputs | No |
| Discrete Outputs | No |
| LCD Display | No |
| Max Temp Operating Conditions (C) | 85.0 |
| Min Temp Operating Conditions (C) | -40.0 |
| Output Details | Serial |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Star Topology | Yes |
| Tree Topology | Yes |
| Wireless Radio Frequency | 900 MHz |
| Cert | Australia/New Zealand, Canada, Korea, Thailand |
| Connection mode | Serial |
| Device type | Multihop Data Radio |
| EtherNet/IP | No |
| Feature | Quick Disconnect |
| Housing Style | Enclosed Terminals |
| Intrinsically Safe | No |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Modbus RTU | Yes |
| Operating voltage | 10-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP67 |
| Radio interface | Yes |
| RS-232 | Yes |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
Description
Serial Data Radio Multihop 900 MHz 1 W
Internal Antenna
No Inputs or Outputs
5-pin M12 Integral QD
