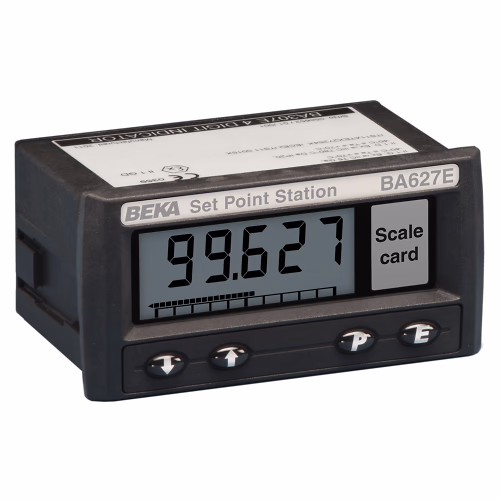

Set point stations [set point generator], General purpose, panel mounting – BA627E
Features:
Loop powered
Front panel push buttons
5 digit 11mm high + bargraph
Noryl or rugged 316 stainless steel enclosure, both provide IP66 front of panel protection.
-40 to +70°C operation
Optional:
Backlight – may be loop or separately poweredBA490 Rotary encoder
96 x 48mm Product dimensions105 x 60mm Product dimensions (Rugged SS)
| Display | 5 digits 12.7mm high + bargraph |
|---|---|
| Protection class | IP20, IP66 |
| Brand | Beka |
| Mounting | Panel |
| Options Available | Backlight, Rotary Encoder |
Description
Product details
These general purpose panel mounting set point stations [set point generators] enable the current in a 4/20mA loop to be manually adjusted from within a process area. The set point station incorporates a 5 digit display plus a bargraph which can be calibrated to show the 4/20mA current in engineering units. Adjustment is via the front panel push buttons.
