Sign up to our Newsletter PVA225P6EQ
Sign up to our Newsletter
| Ambient temperature max. (°C) | 50 |
|---|---|
| Ambient temperature min. (°C) | |
| Cable length (m) | 2 |
| Connector type | M12 × 1 |
| Design | Rectangular |

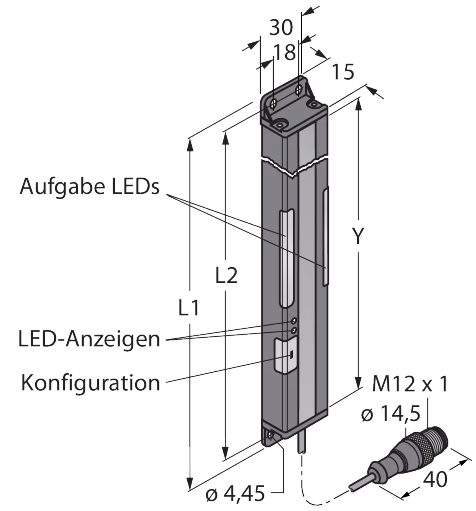

| Dimensions | 266.4 mm x 30 mm x 15 mm |
| Electrical output | Cable with connector |
| Function | Opposed mode sensor |
| Housing material | Metal |
| Housing quality | AL |
| Input type | Bipolar (PNP/NPN)22 |
| Light type | IR |
| Max. range (mm) | 2000 |
| Number of beams | 10 |
| Number of colors/segments | 1 |
| Operating mode | Emitter |
| Operating voltage | DC |
| Optical resolution (mm) | 25 |
| Protection class | IP62 |
| Scan field (mm) | 225 |
| Wavelength (nm) | 880 |
