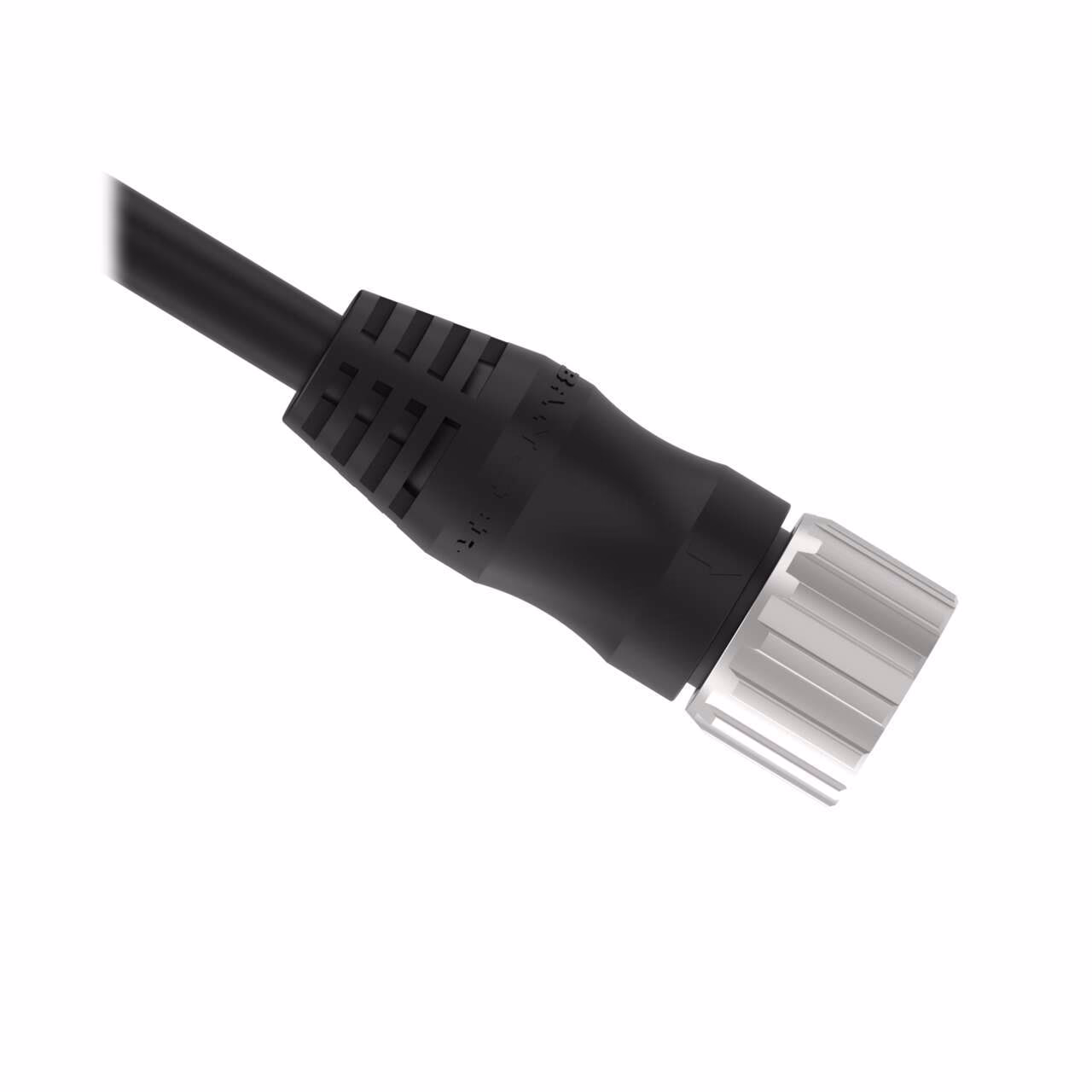

Single-Ended – Banner – BC-M23F19-1822-1
Cordset: Single-Ended M23
19-pin Straight Female Connector
1 m (3.28 ft) 3×18+16×22 Black PVC Jacket
Nickel-Plated Brass Coupling Nut
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Cordset Length (m) | 1.0 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 9.8 |
| Shield/No Shield | No Shield |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M23 |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Current (A) | 4.0 |
| EPLAN Original Sent Date | 02/14/2025 |
| EPLAN Status | Published |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Operating voltage | 150 V ac/dc |
| Overmold Material and Color | TPU Black |
| Maximum Temp. (Celsius) | 80.0 |
| Number of pins.1 | 19.0 |
| Minimum Temp. (Celsius) | -25.0 |
Description
Cordset: Single-Ended M23
19-pin Straight Female Connector
1 m (3.28 ft) 3×18+16×22 Black PVC Jacket
Nickel-Plated Brass Coupling Nut
