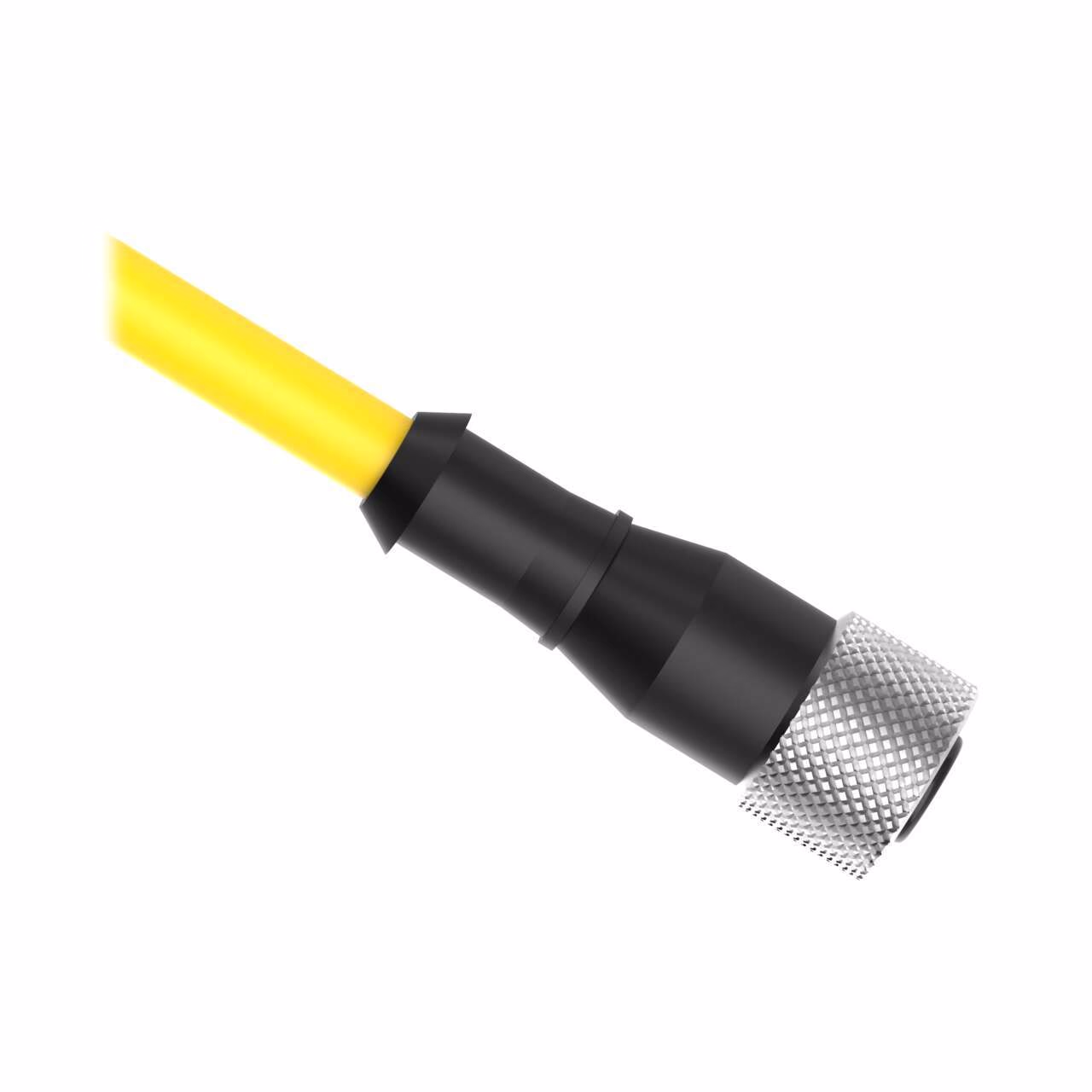

Single-Ended – Banner – QDE-1215E
Cordset: Single-Ended M12
11-pin Straight Female
4.57 m 11×24 Yellow PVC Jacket
Nickel-Plated Brass Coupling Nut
| Cable Jacket Color | Yellow |
|---|---|
| Cable Jacket Material | PVC |
| Cordset Length (m) | 4.57 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 6 |
| Shield/No Shield | No Shield |
| Coiled | No |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Current (A) | 2 |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 60 V ac / 75 V dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70 |
| Number of pins.1 | 11 |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Single-Ended M12
11-pin Straight Female
4.57 m 11×24 Yellow PVC Jacket
Nickel-Plated Brass Coupling Nut
