Single-Ended – Banner – SMICC-3100

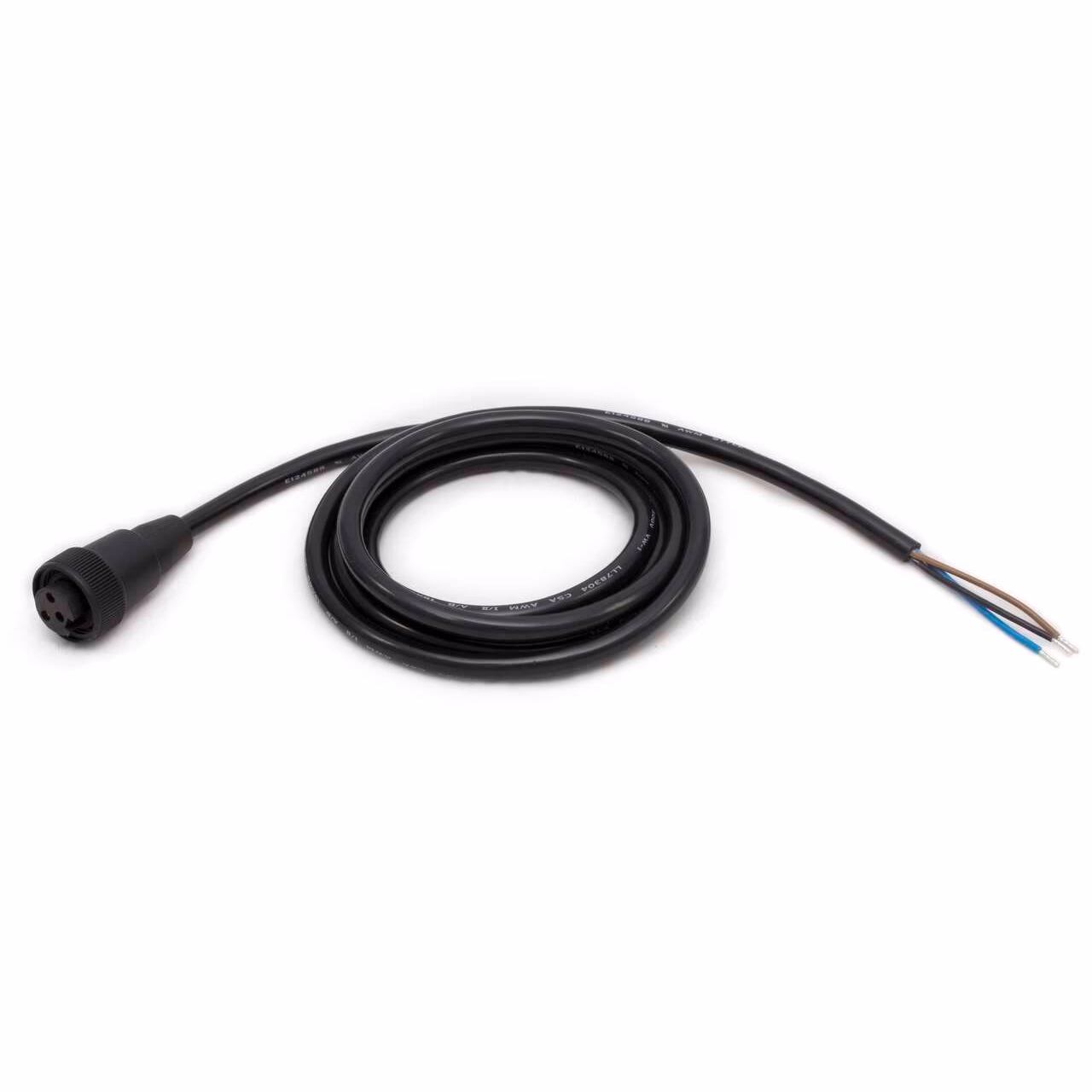

Cordset: Single-Ended 7/8 in

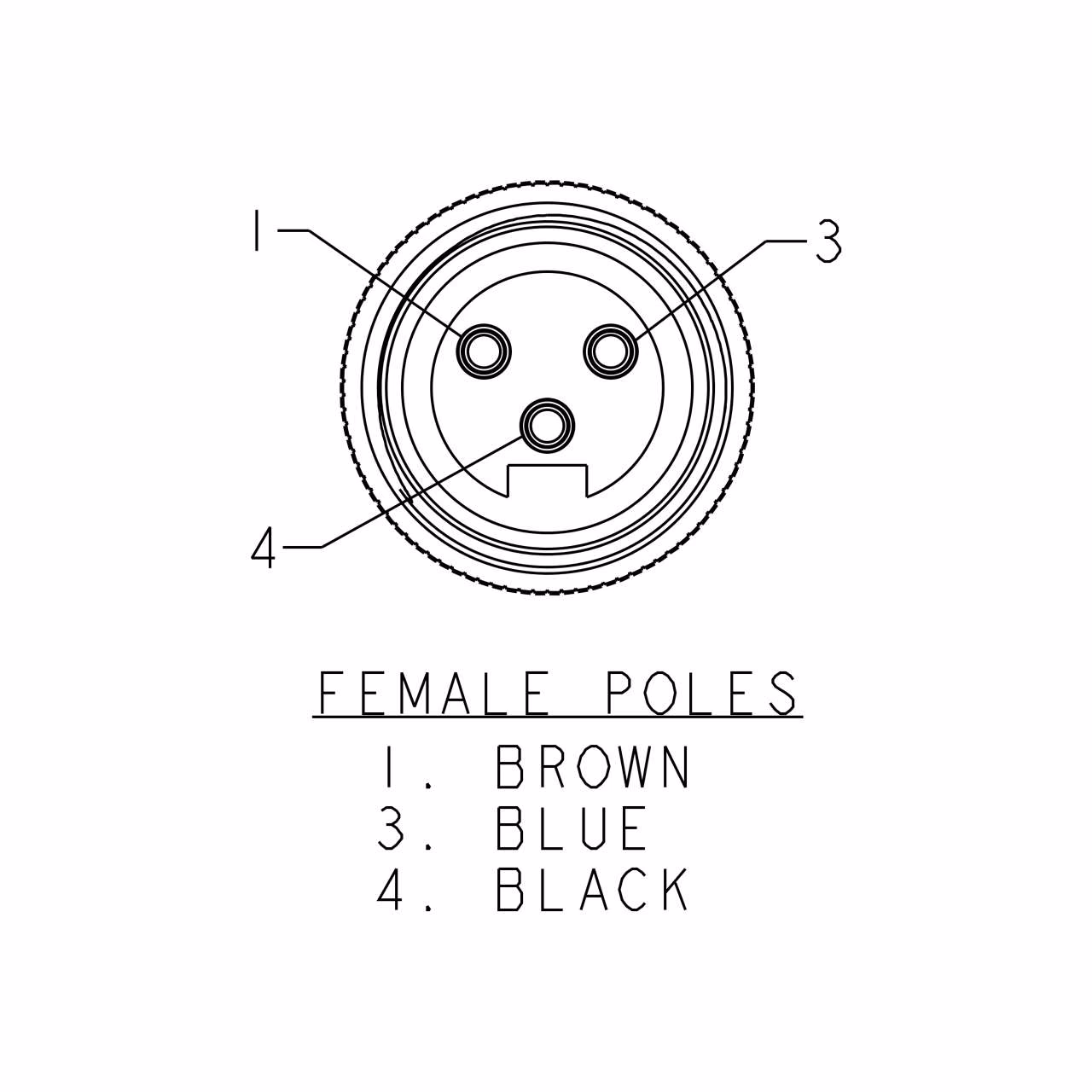

3-pin Straight Female
30.5 m 3×18 Black PVC Jacket
Nylon Black Coupling Nut
| Application | Signal |
|---|---|
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Connector 1 Coupling Nut Material | Nylon Black |
| Connector 1 Overmold Material and Color | PUR Black |
| Connector 1 Thread/Snap | Threaded |
| Cordset Length (m) | 30.5 |
| Coupling Nut Material | Nylon Black |
| Number of Conductors | 3 |
| Outside Cable Diameter (mm) | 7 |
| Wire AWG | 18 |
| Connector 1 Orientation | Straight |
| Connector 1 Type | 7/8 in. (Mini) |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Current (A) | 8 |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 60 V dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70 |
| Number of pins.1 | 3 |
| Minimum Temp. (Celsius) | -40 |
Description
Cordset: Single-Ended 7/8 in
3-pin Straight Female
30.5 m 3×18 Black PVC Jacket
Nylon Black Coupling Nut
