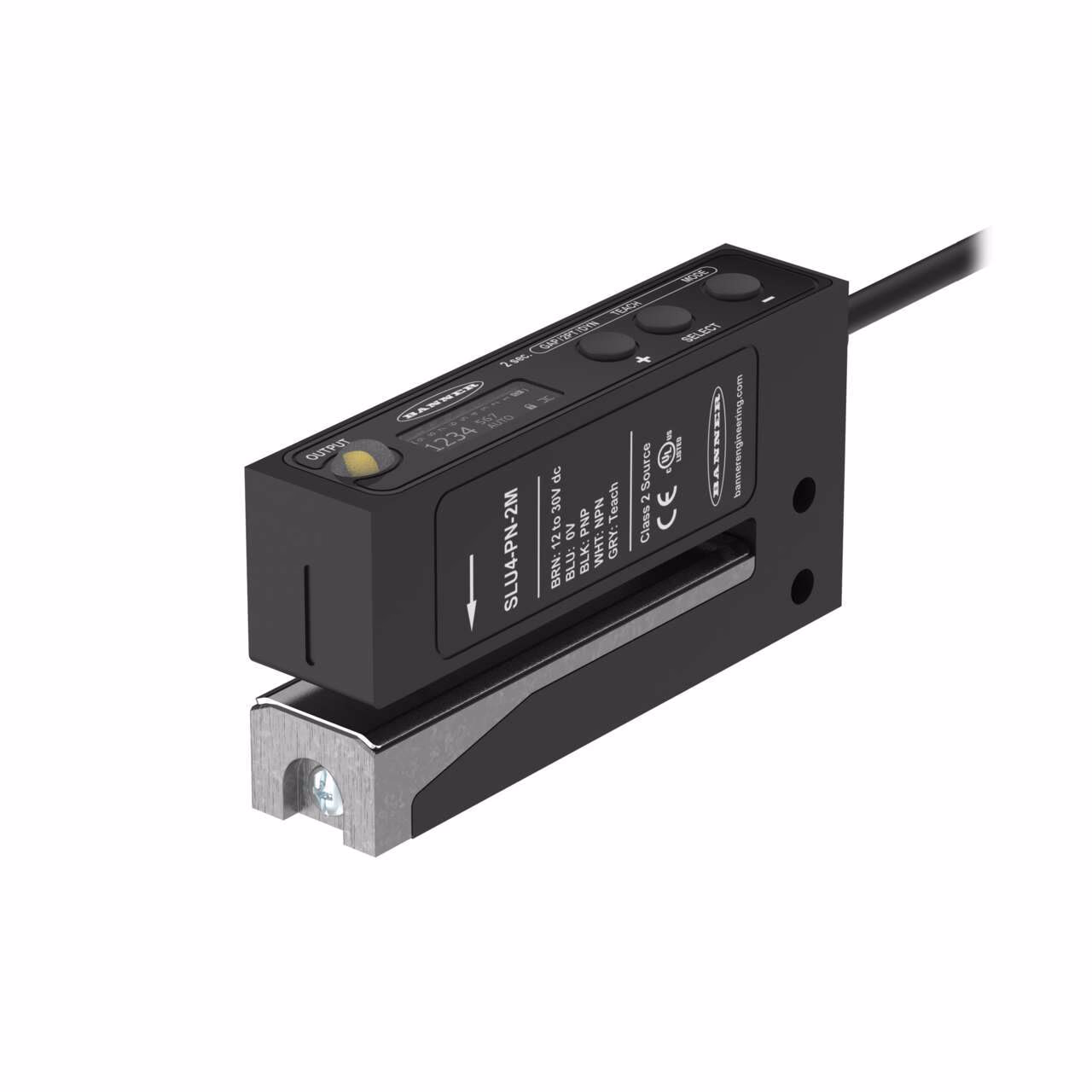

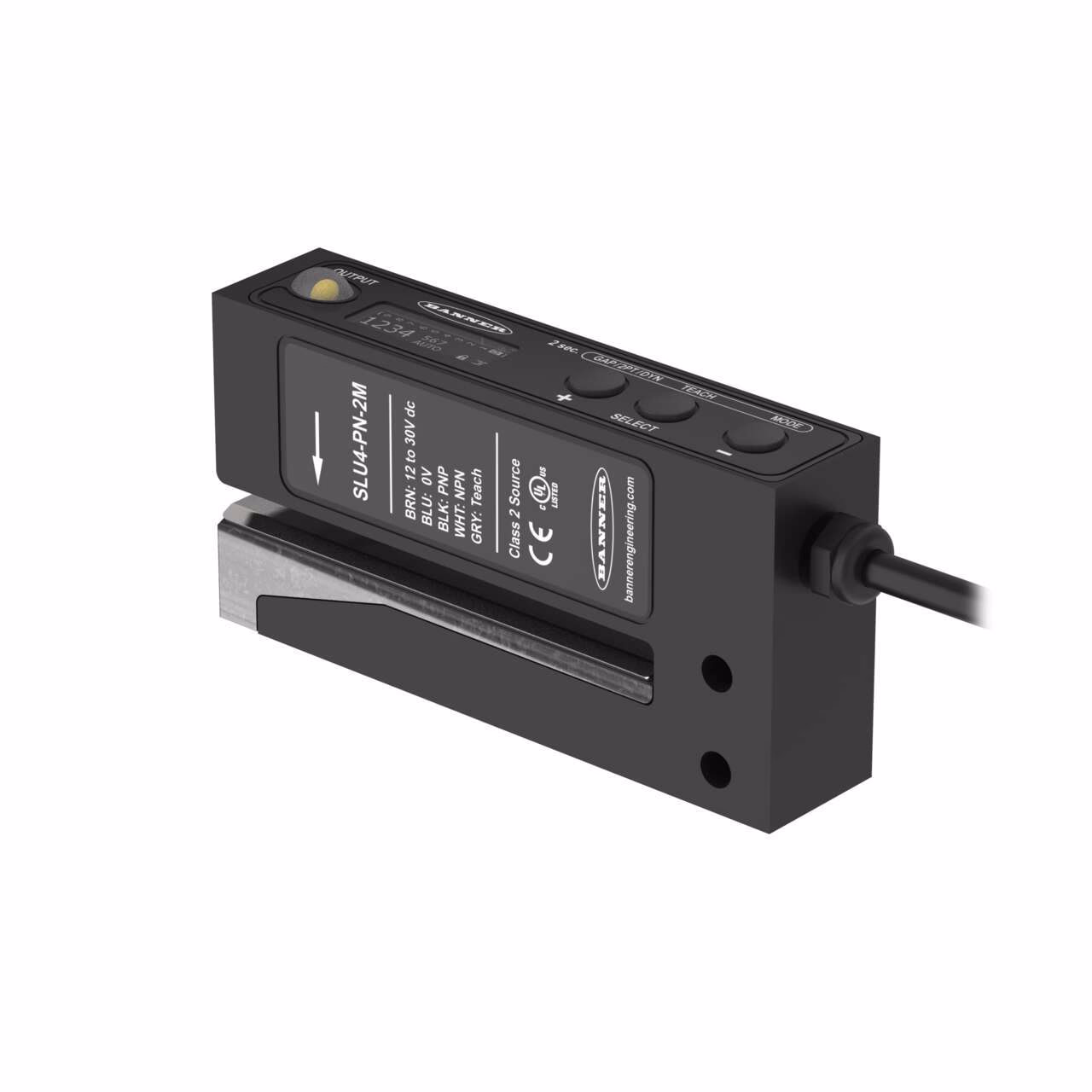

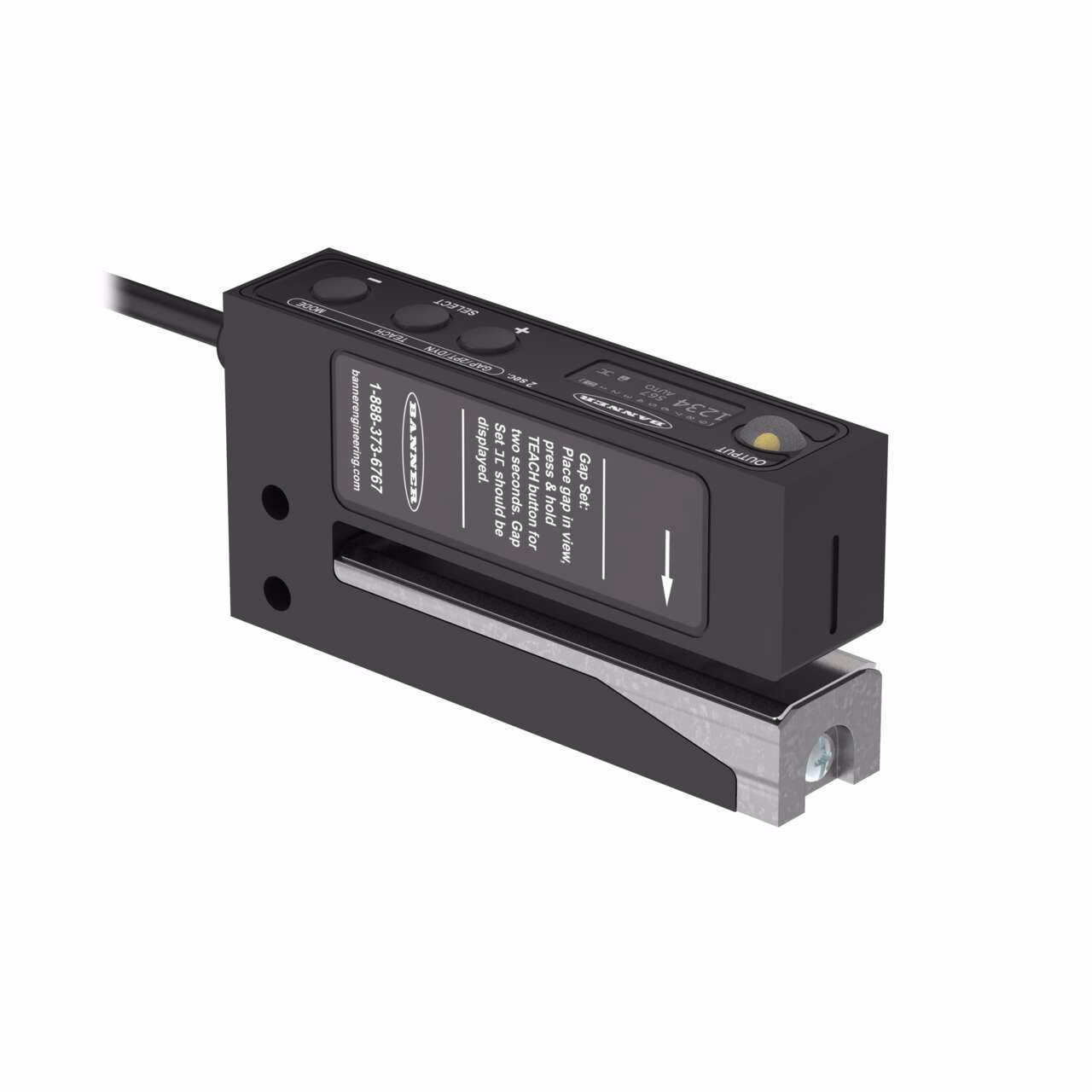

SLU4 Series Ultrasonic Label Sensor – Banner – SLU4-PN-2M
SLU4 Series: Ultrasonic Label Sensor
Slot width: 4 mm; Input: 12-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
1.8 m (6 ft) Cable
| Connection | Cable |
|---|---|
| Max Op. Temperature [?C] | 50.0 |
| Max Sensing Range (mm) | 4.0 |
| Min Op. Temperature [?C] | 4.0 |
| Outputs | Bipolar (NPN & PNP) |
| Power Supply/Supply Voltage | 12-30 V dc |
| Adjustments | Teach Button |
| Connection technology signal | Emitter/Receiver Pair |
| Homerun Exit Location | 0.2 |
| Housing Style | Label |
| Indicator | LEDs |
| Item Status | RELEASED |
| Number of beams | 1.0 |
| Number of pins | 5 |
| Operation | Light/Dark Operate |
| Protection class shaft | IP65 |
| Receptacle housing material B | Aluminum |
| Slot width (mm) | 1.8 |
| Special feature | Remote Teach |
| NEMA / UL Type Rating | NEMA 4X |
| Slot Overall Depth (mm) | 21.0 |
| Slot Depth/Array Length (mm) | 79.0 |
Description
SLU4 Series: Ultrasonic Label Sensor
Slot width: 4 mm; Input: 12-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
1.8 m (6 ft) Cable
