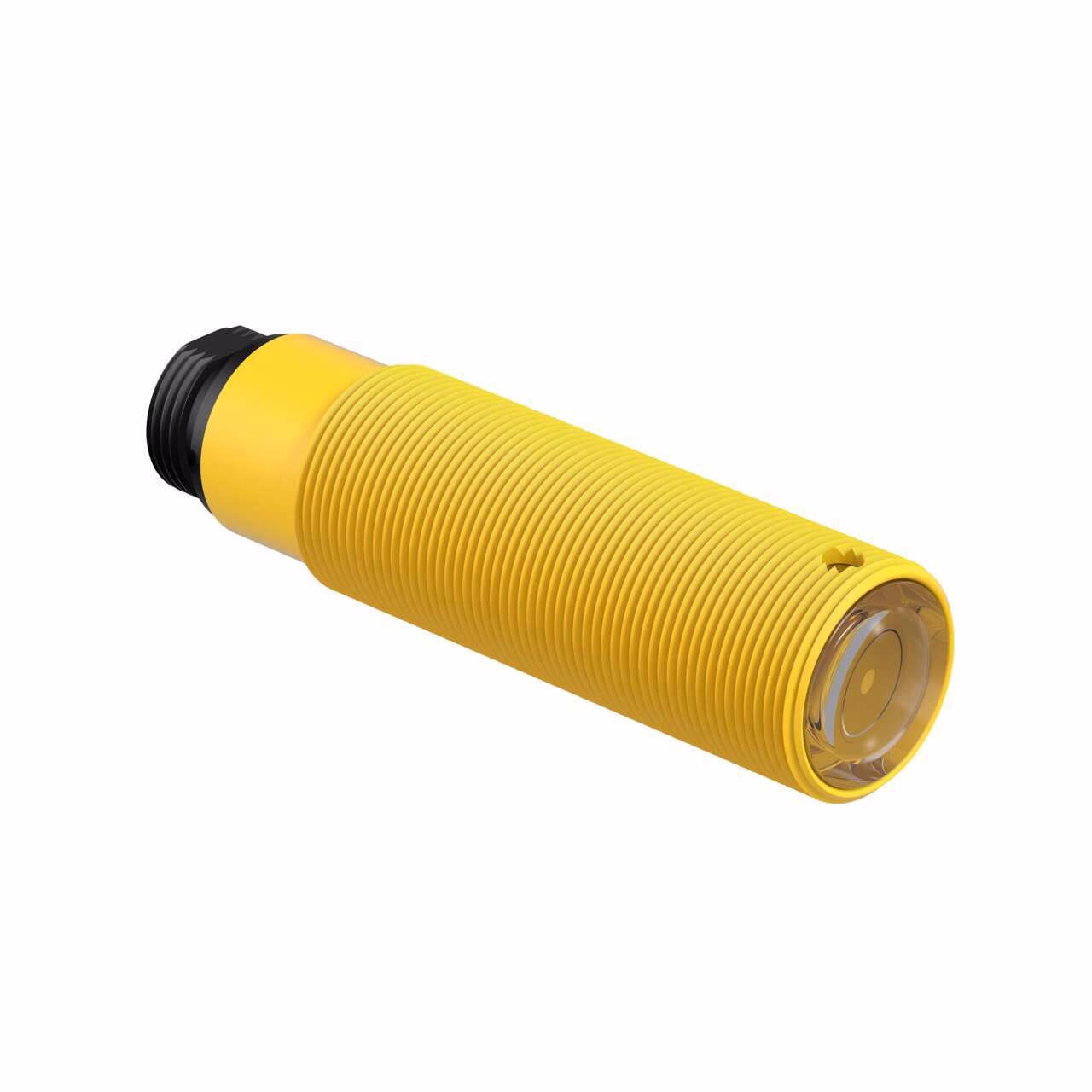

SM30 Series 150 m Range Opposed Mode Barrel Sensor – Banner – SM30PRLQ5
SM30PRLQ5 4-PIN M12
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Outputs | Bipolar (NPN & PNP) |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Receiver |
| DeviceNet | No |
| Feature | Encapsulated, Quick Disconnect |
| Homerun Exit Location | 10 |
| Housing Style | Barrel |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Opposed Mode Emitter/Receiver | Receiver |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 150000 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Barrel Diameter (mm) | 30 |
Description
SM30PRLQ5 4-PIN M12
