Splitters – Banner – CSA-M1241M1241

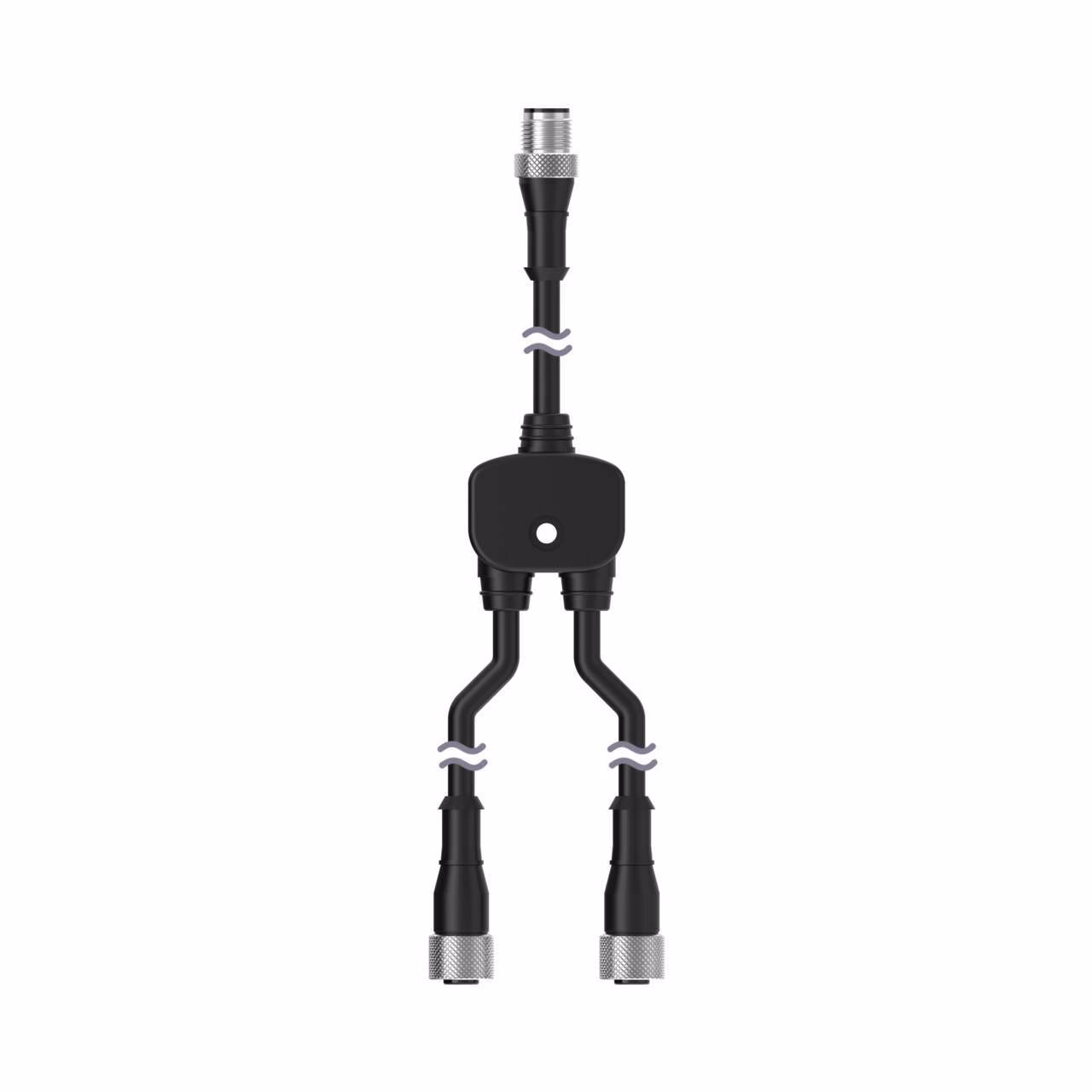

Splitter Cable, 4-pin M12 QD
Straight Male Trunk 0.3 m
Two Straight Female Branches 0.3 m

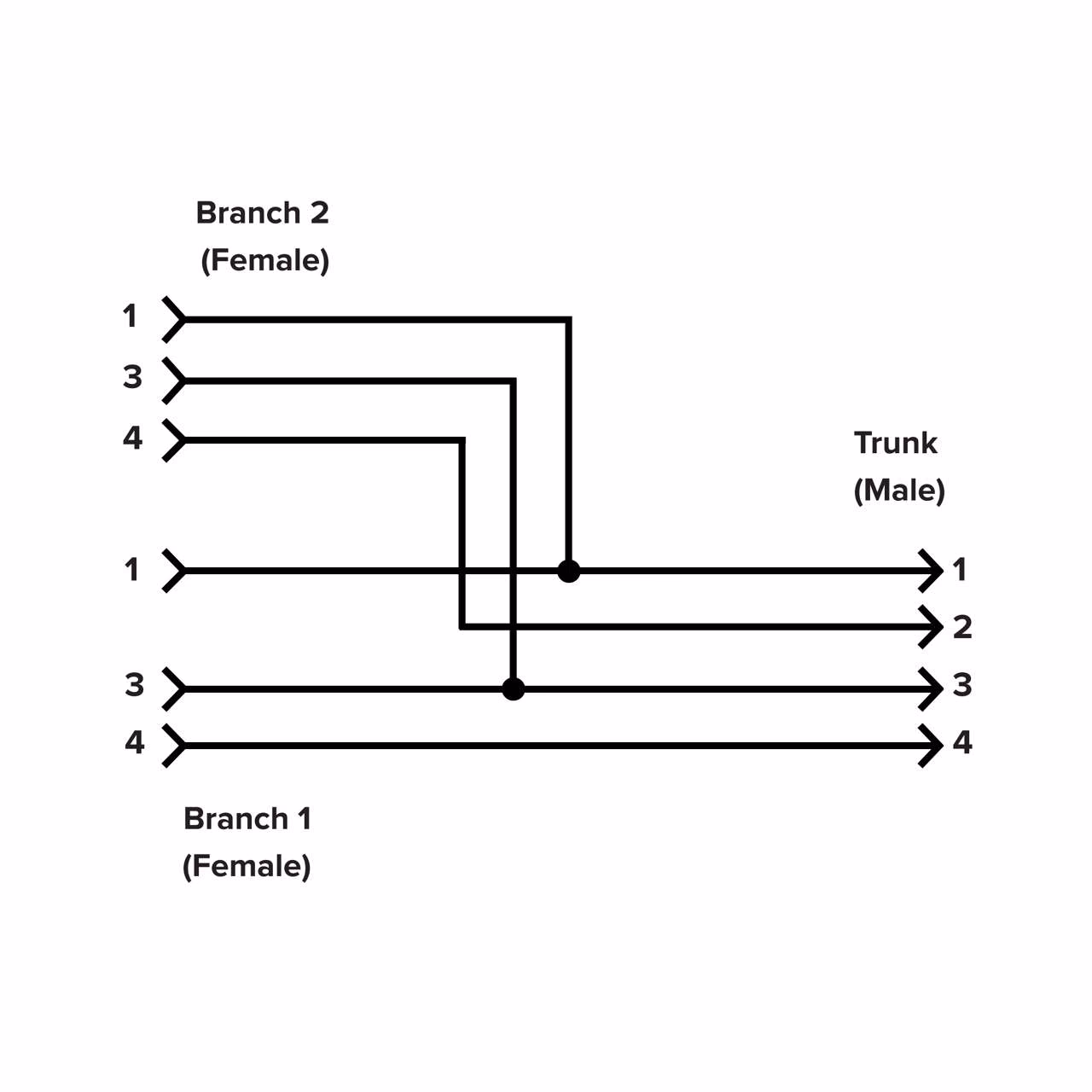

Standard Wiring for Two Separate Black Wire Outputs
| Branches: Cable Jacket Material | PVC, PVC |
|---|---|
| Branches: Genders | Female, Female |
| Branches: Number of Contacts | 4, 4 |
| Number of Branches | 2 |
| Shield/No Shield | No Shield |
| Splitter: Overmold Material and Color | PUR Black |
| Trunk: Connector Type | M12 |
| Trunk: Gender | Male |
| Trunk: Number of Contacts | 4 |
| Trunk: Orientation | Straight |
| Wiring | Dual Sensor |
| Cable quality | PVC |
| Current (A) | 4 |
| Indication | No |
| Item Status | RELEASED |
| Oil/Grease Resistant | No |
| Operating voltage | 250 V ac/dc |
| Protection class shaft | IP67 |
| Radiation direction | Straight, Straight |
| Maximum Temp. (Celsius) | 105 |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | 0.3 |
| Connector type.1 | M12, M12 |
| Start/Restart interlock | Y |
Description
Splitter Cable, 4-pin M12 QD
Straight Male Trunk 0.3 m
Two Straight Female Branches 0.3 m
Standard Wiring for Two Separate Black Wire Outputs
