Splitters – Banner – CSB-M121701USB02M121702

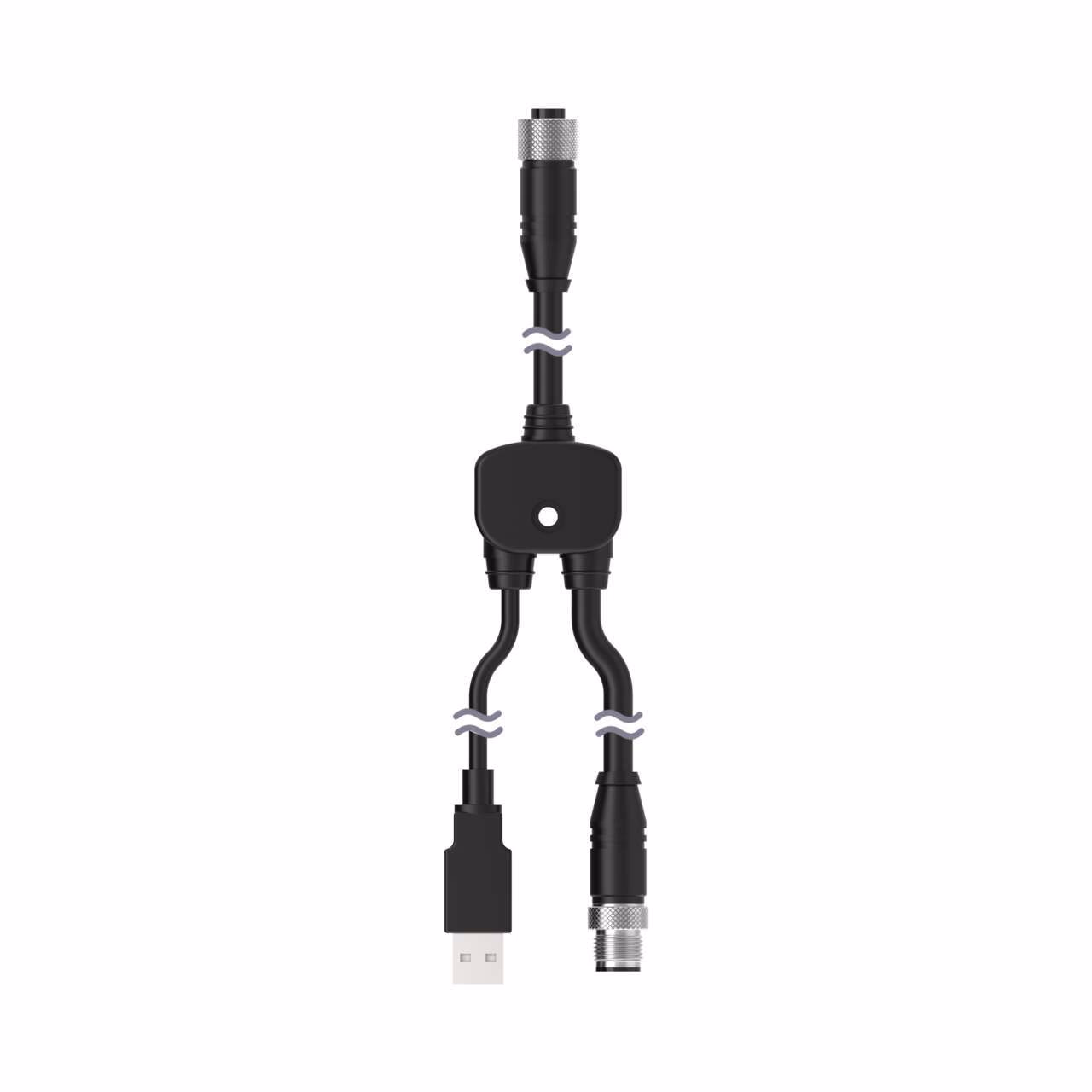

M12 Splitter Cable
17-pin Female Straight 0.3 m (1 ft) Trunk
0.6 m (2 ft) 17-pin Male Straight Branch
0.6 m (2 ft) USB-A Male Straight Branch
Black, PVC, Nickel-Plated Brass Coupling Nut
| Branches: Cable Jacket Material | PVC, PVC |
|---|---|
| Branches: Genders | Male, Male |
| Branches: Number of Contacts | 4, 17 |
| Number of Branches | 2.0 |
| Shield/No Shield | Shield – Tied to Coupling Nut |
| Splitter: Overmold Material and Color | PUR Black |
| Trunk: Connector Type | M12 |
| Trunk: Gender | Female |
| Trunk: Number of Contacts | 17.0 |
| Trunk: Orientation | Straight |
| Wiring | Custom |
| Cable quality | PVC |
| Current (A) | 1.5 |
| Indication | No |
| Item Status | RELEASED |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V ac / 36 V dc |
| Protection class shaft | IP20 |
| Radiation direction | Straight, Straight |
| Start/Restart interlock | Y |
| Maximum Temp. (Celsius) | 105.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | 0.30 |
| Connector type.1 | USB-A, M12 |
Description
M12 Splitter Cable
17-pin Female Straight 0.3 m (1 ft) Trunk
0.6 m (2 ft) 17-pin Male Straight Branch
0.6 m (2 ft) USB-A Male Straight Branch
Black, PVC, Nickel-Plated Brass Coupling Nut
