Splitters – Banner – CSB-M1253.3M1281.6

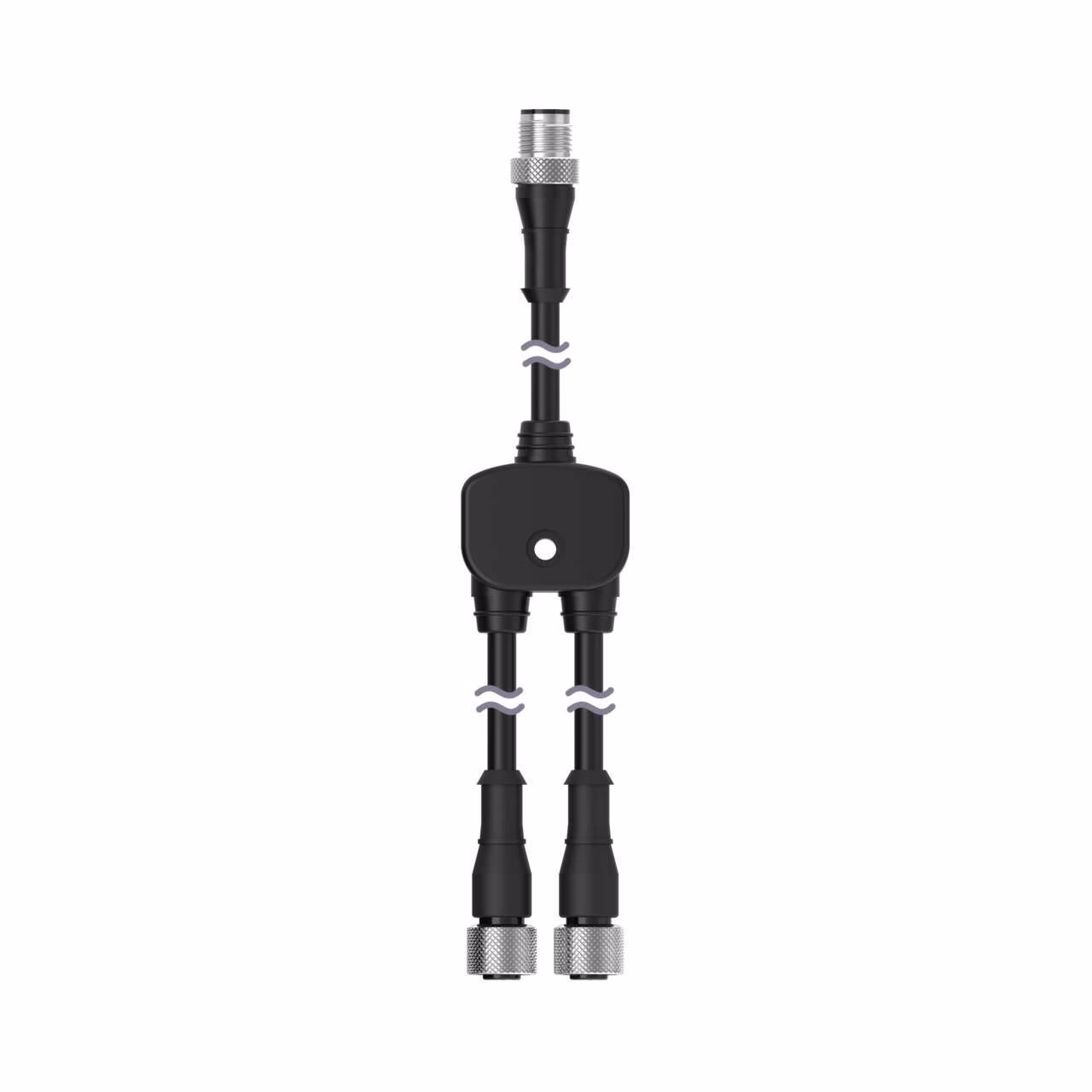

M12 QD Splitter Cordset
5-pin Male Straight Trunk
1 m (3.3 ft)
8-pin Female Straight Branches (2)
0.5 m (1.64 ft)
Black PUR Splitter Junction
Yellow PVC Cable Jacket
| Branches: Cable Jacket Material | PVC, PVC |
|---|---|
| Branches: Genders | Female, Female |
| Branches: Number of Contacts | 8, 8 |
| Number of Branches | 2 |
| Shield/No Shield | No Shield |
| Splitter: Overmold Material and Color | PUR Black |
| Trunk: Connector Type | M12 |
| Trunk: Gender | Male |
| Trunk: Number of Contacts | 5 |
| Trunk: Orientation | Straight |

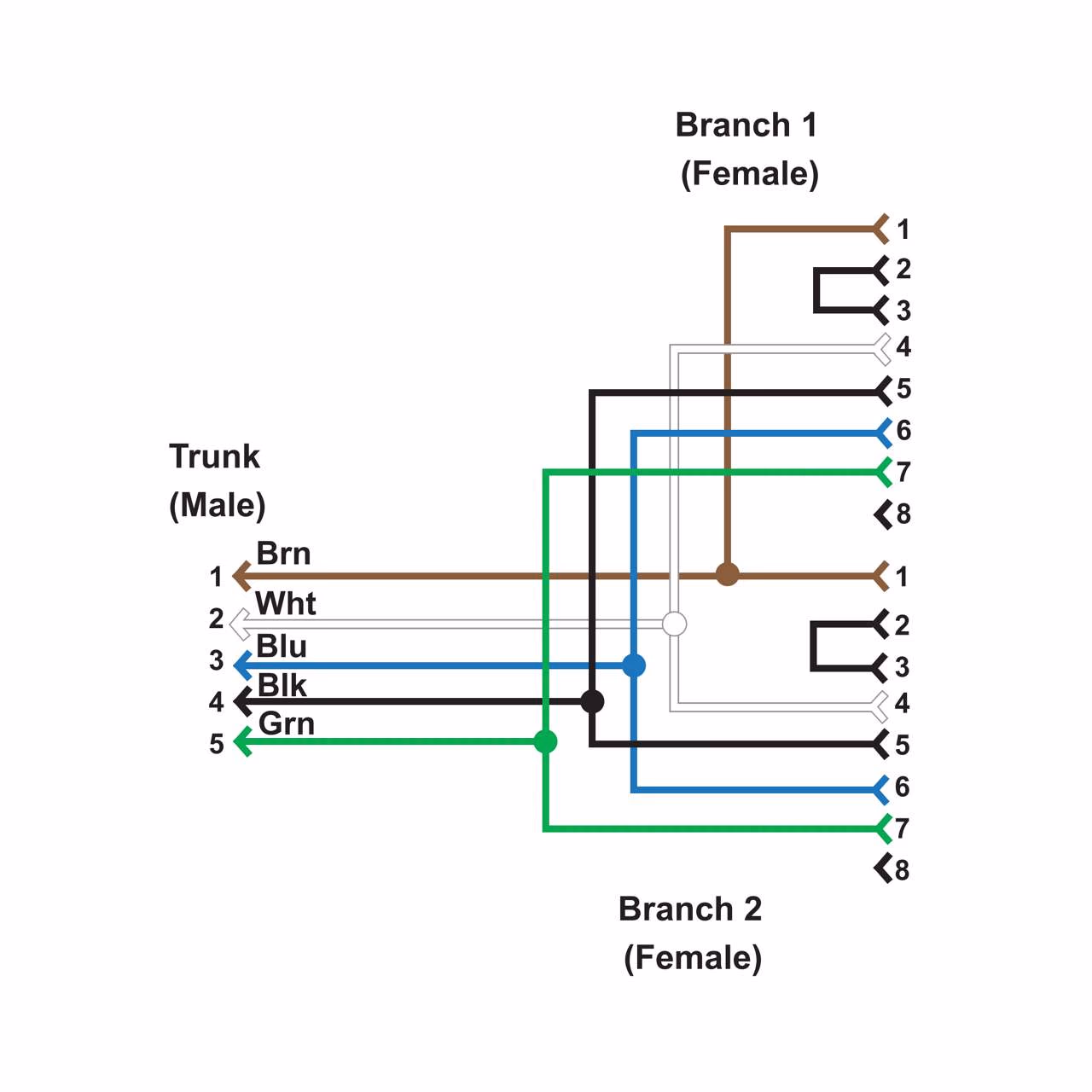

| Wiring | Parallel |
| Cable quality | PVC |
| Current (A) | 2 |
| Indication | No |
| Item Status | RELEASED |
| Oil/Grease Resistant | No |
| Operating voltage | 75 V ac/dc |
| Protection class shaft | IP67 |
| Radiation direction | Straight, Straight |
| Maximum Temp. (Celsius) | 105 |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | 1 |
| Connector type.1 | M12, M12 |
| Start/Restart interlock | Y |
Description
M12 QD Splitter Cordset
5-pin Male Straight Trunk
1 m (3.3 ft)
8-pin Female Straight Branches (2)
0.5 m (1.64 ft)
Black PUR Splitter Junction
Yellow PVC Cable Jacket
