Splitters – Banner – CSB-UNT810M1282M1284.5

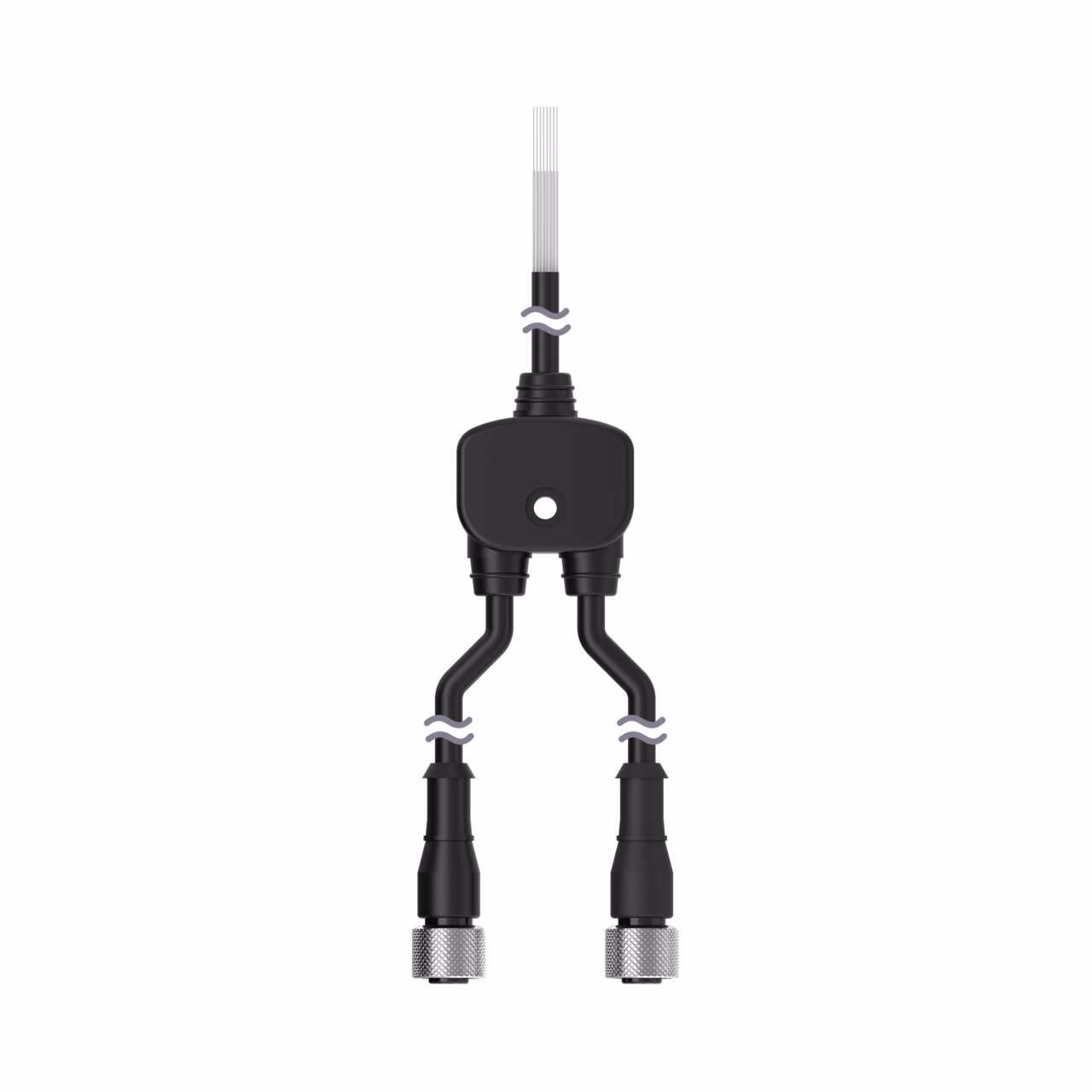

M12 QD Splitter Cable
8×22 AWG Unterminated 3.05 m (10 ft) Trunk
8-pin Straight Female M12 0.61 m (2 ft) Branch 1
8-pin Straight Female M12 1.37 m (4.5 ft) Branch 2
| Branches: Cable Jacket Material | PVC, PVC |
|---|---|
| Branches: Genders | Female, Female |
| Branches: Number of Contacts | 8, 8 |
| Number of Branches | 2 |
| Shield/No Shield | No Shield |
| Splitter: Overmold Material and Color | PUR Black |
| Trunk: Connector Type | Flying Leads |
| Trunk: Number of Contacts | 8 |
| Wiring | Parallel |
| Cable quality | PVC |
| Current (A) | 2 |
| Indication | No |
| Item Status | RELEASED |
| Oil/Grease Resistant | No |
| Operating voltage | 75 V ac/dc |
| Protection class shaft | IP20 |
| Radiation direction | Straight, Straight |
| Maximum Temp. (Celsius) | 105 |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | 3.05 |
| Connector type.1 | M12, M12 |
| Start/Restart interlock | Y |
Description
M12 QD Splitter Cable
8×22 AWG Unterminated 3.05 m (10 ft) Trunk
8-pin Straight Female M12 0.61 m (2 ft) Branch 1
8-pin Straight Female M12 1.37 m (4.5 ft) Branch 2
