Splitters – Banner – CSF3A-M12F81M12M41

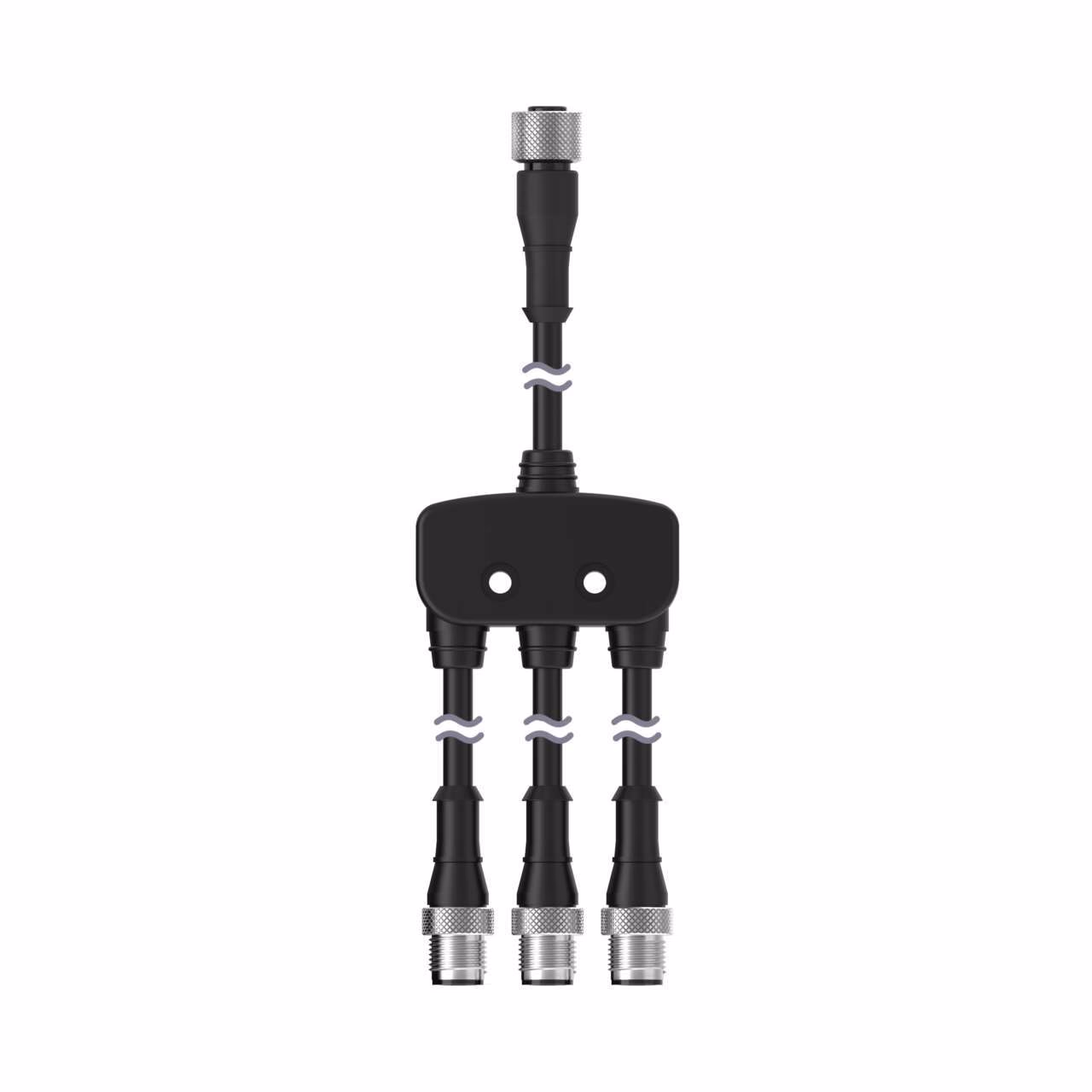

M12 QD Splitter Cable
8-pin Female 0.3 m (1 ft) 8×22 AWG Trunk
4-pin Male 0.3 m (1 ft) 4×22 AWG Branches (x3)

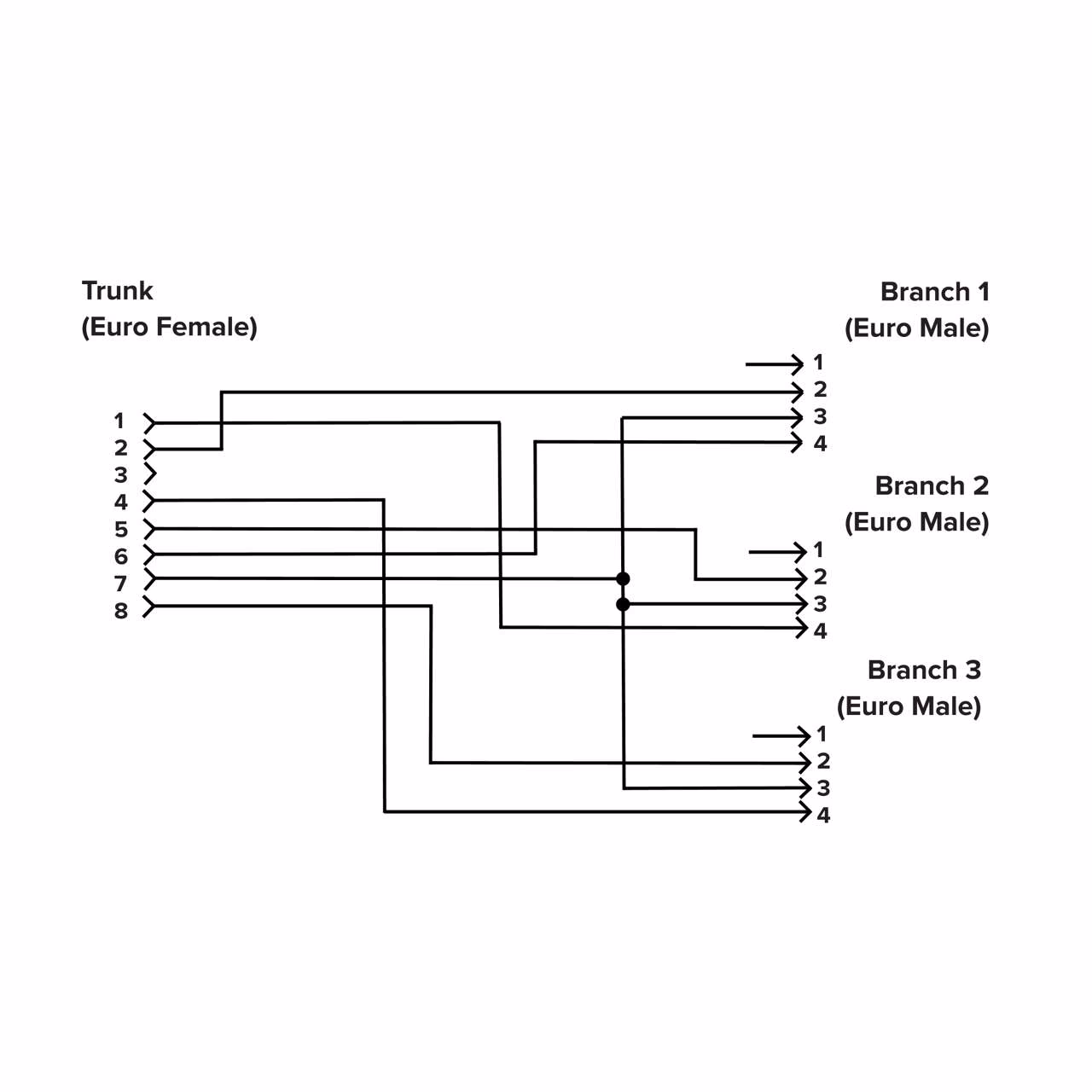

Black PVC; Special Wiring
| Shield/No Shield | No Shield |
|---|---|
| Cable quality | PVC |
| Current (A) | 2.0 |
| Indication | No |
| Item Status | RELEASED |
| Oil/Grease Resistant | No |
| Operating voltage | 75 V ac/dc |
| Protection class shaft | IP67 |
| Radiation direction | Straight, Straight, Straight |
| Start/Restart interlock | Y |
| Maximum Temp. (Celsius) | 105.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | 0.30 |
| Number of Branches | 3.0 |
| Branches: Number of Contacts | 4, 4, 4 |
| Connector type.1 | M12, M12, M12 |
| Branches: Genders | Male, Male, Male |
| Trunk: Connector Type | M12 |
| Wiring | Combiner |
| Splitter: Overmold Material and Color | PUR Black |
| Trunk: Number of Contacts | 8.0 |
| Trunk: Gender | Female |
| Trunk: Orientation | Straight |
| Branches: Cable Jacket Material | PVC, PVC, PVC |
Description
M12 QD Splitter Cable
8-pin Female 0.3 m (1 ft) 8×22 AWG Trunk
4-pin Male 0.3 m (1 ft) 4×22 AWG Branches (x3)
Black PVC; Special Wiring
