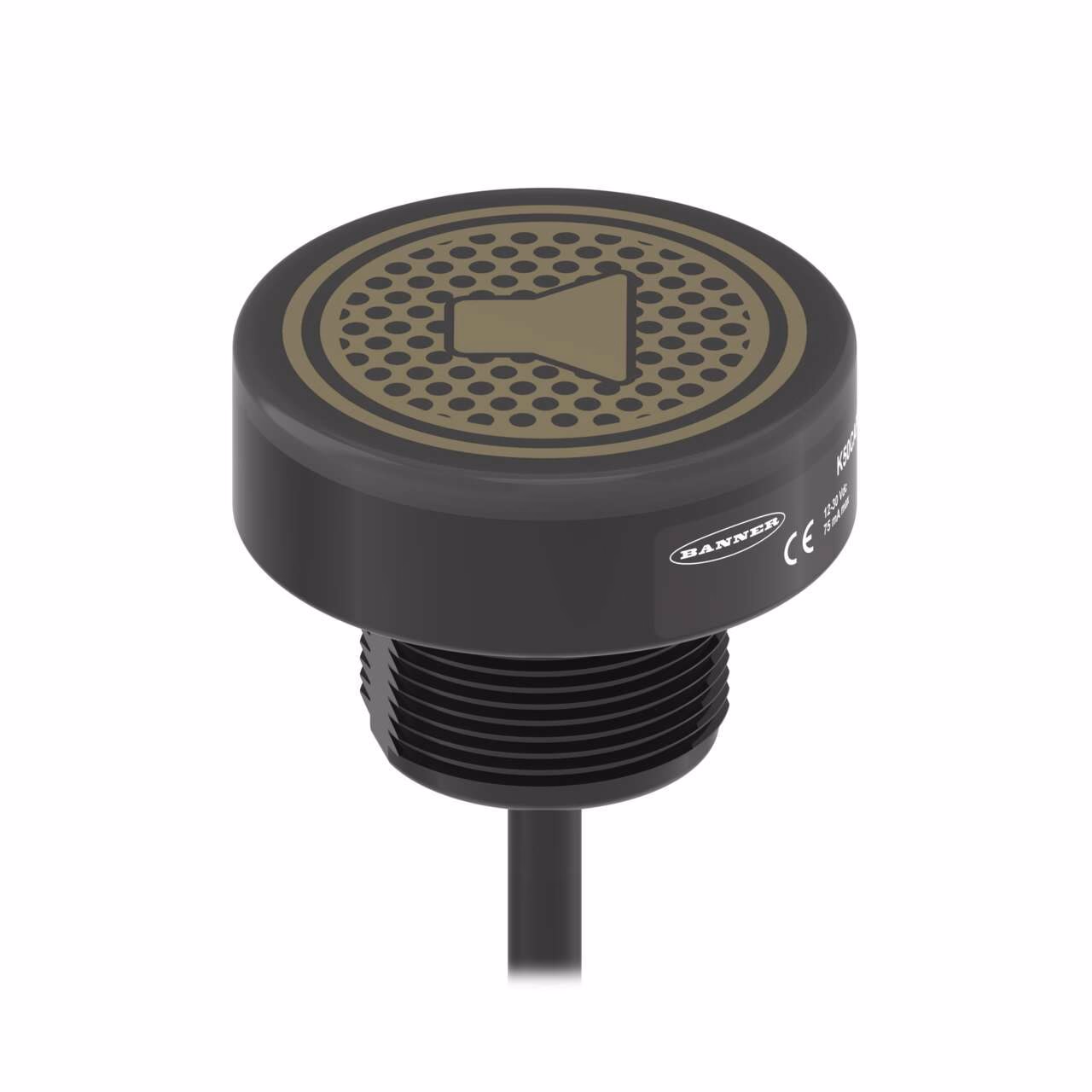

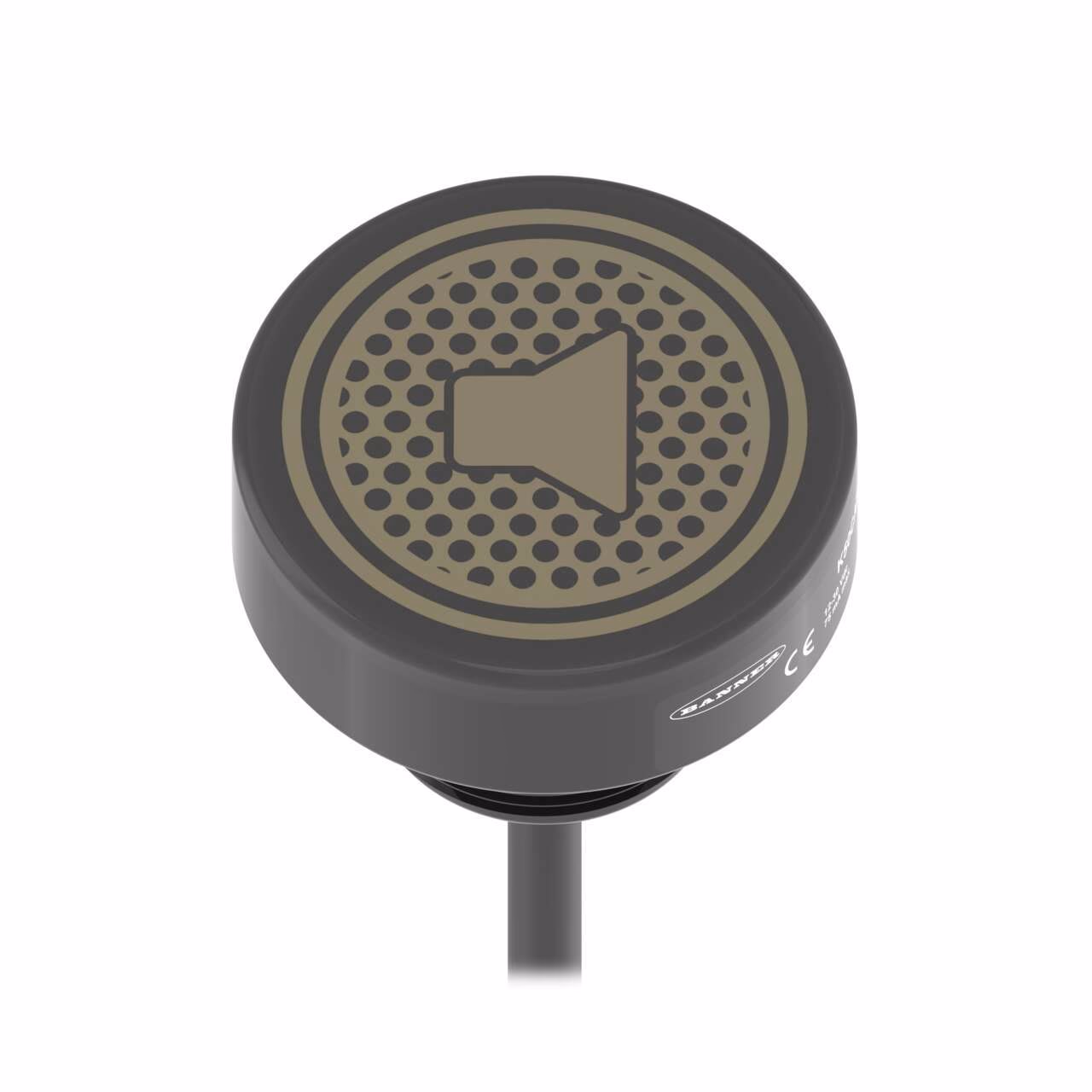

Standalone Audible – Banner – K50PCLA
K50 Pro Compact Audible
12-30 V dc; Polycarbonate; IP66, IP67, IP69K
Input: Bimodal
2 m (6.5 ft) Integral Cable
| Audible Alarm Type | Programmable |
|---|---|
| Connection | Cable |
| Discrete | Yes |
| Feature: Audible | Audible Only |
| Input Type | Bimodal (PNP/NPN) |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate |
| Pro-Editor Compatible (Discrete) | Yes |
| Environmental Rating | IP67; IP69K |
| Eye Shield | No |
| Feature | Washdown Rated |
| Housing Style | Compact |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Indicator |
| Max Audible Intensity (dB at 1m) | 92.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Min Audible Intensity (dB at 1m) | 83.0 |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Non-Illuminated | No |
| Number of Conductors | 5.0 |
| Operating voltage | 12-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 69.6 |
| Power Good Output | DC |
| Programmable | Yes |
| Protection class shaft | IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Slot width (mm) | 2 |
| Switching frequency (kHz) | 2.9 |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 25.0 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 250.0 |
Description
K50 Pro Compact Audible
12-30 V dc; Polycarbonate; IP66, IP67, IP69K
Input: Bimodal
2 m (6.5 ft) Integral Cable
