Status Displays – Banner – SD50P300WSQP

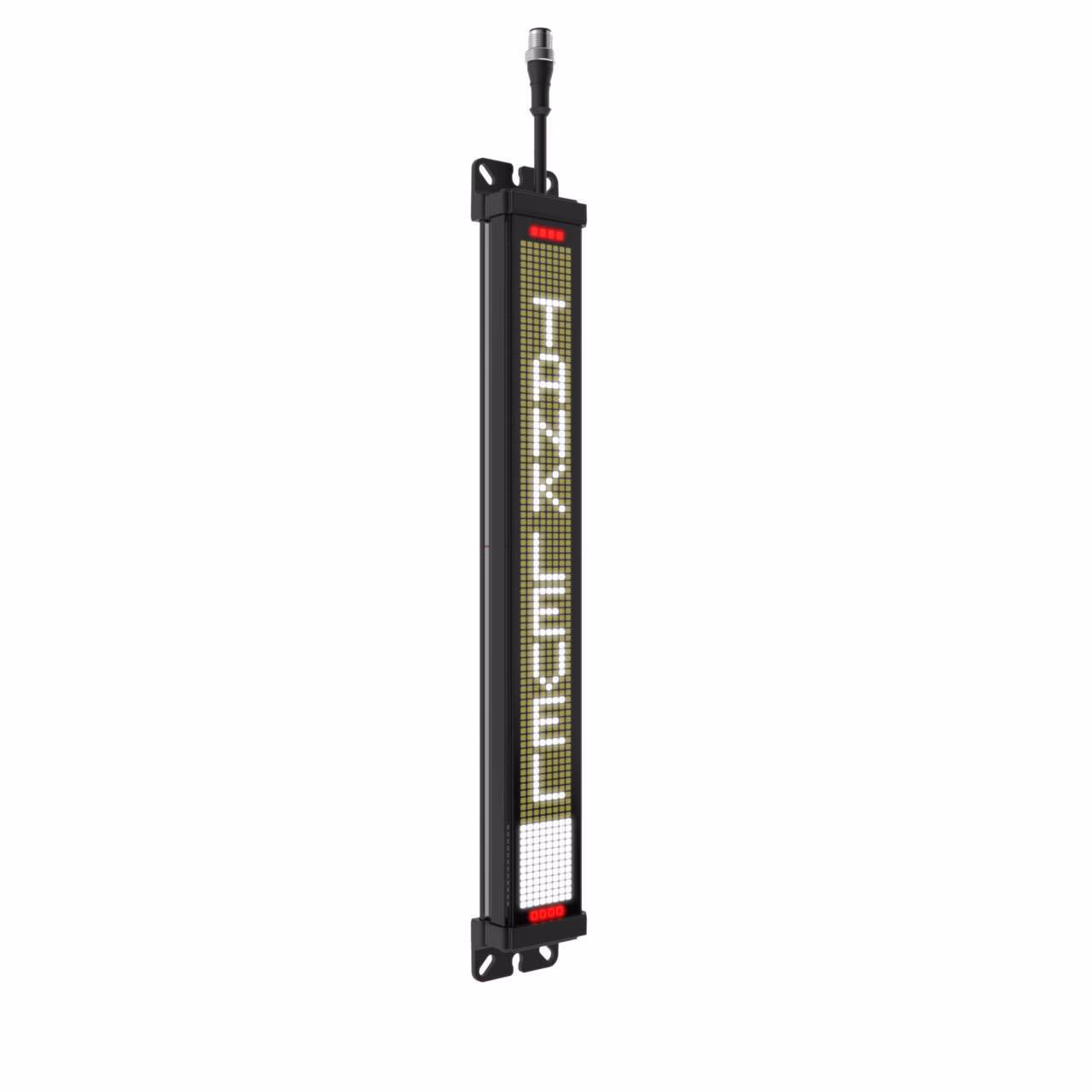

SD50 Status Display with Modbus
8 x 96 pixels; White Display LEDs; RGB Indicator LEDs
300 mm Display length; Polycarbonate; 12-30 V dc; IP65
150 mm (6 in) 4-pin M12 PVC Pigtail QD
| Array Length (mm) | 300.0 |
|---|---|
| Color Technology | RGB Configurable |
| Connection | Integral QD |
| PICK-IQ (Modbus RTU) | Yes |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate |
| Pro-Editor Compatible (Discrete) | No |
| Ships With Battery | No |
| Wire Selectable Function | Programmable |
| Animation Option 1 | Programmable |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Color Option 1 | White |
| EPLAN Original Sent Date | 05/07/2025 |
| EPLAN Status | Published |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Number of colors/segments | 14 |
| Number of Conductors | 4.0 |
| Physical Dimensions (LxWxH or DxH mm) | 325x50x28 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP65 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | Yes |
| Product Size (mm) | 50 |
Description
SD50 Status Display with Modbus
8 x 96 pixels; White Display LEDs; RGB Indicator LEDs
300 mm Display length; Polycarbonate; 12-30 V dc; IP65
150 mm (6 in) 4-pin M12 PVC Pigtail QD
