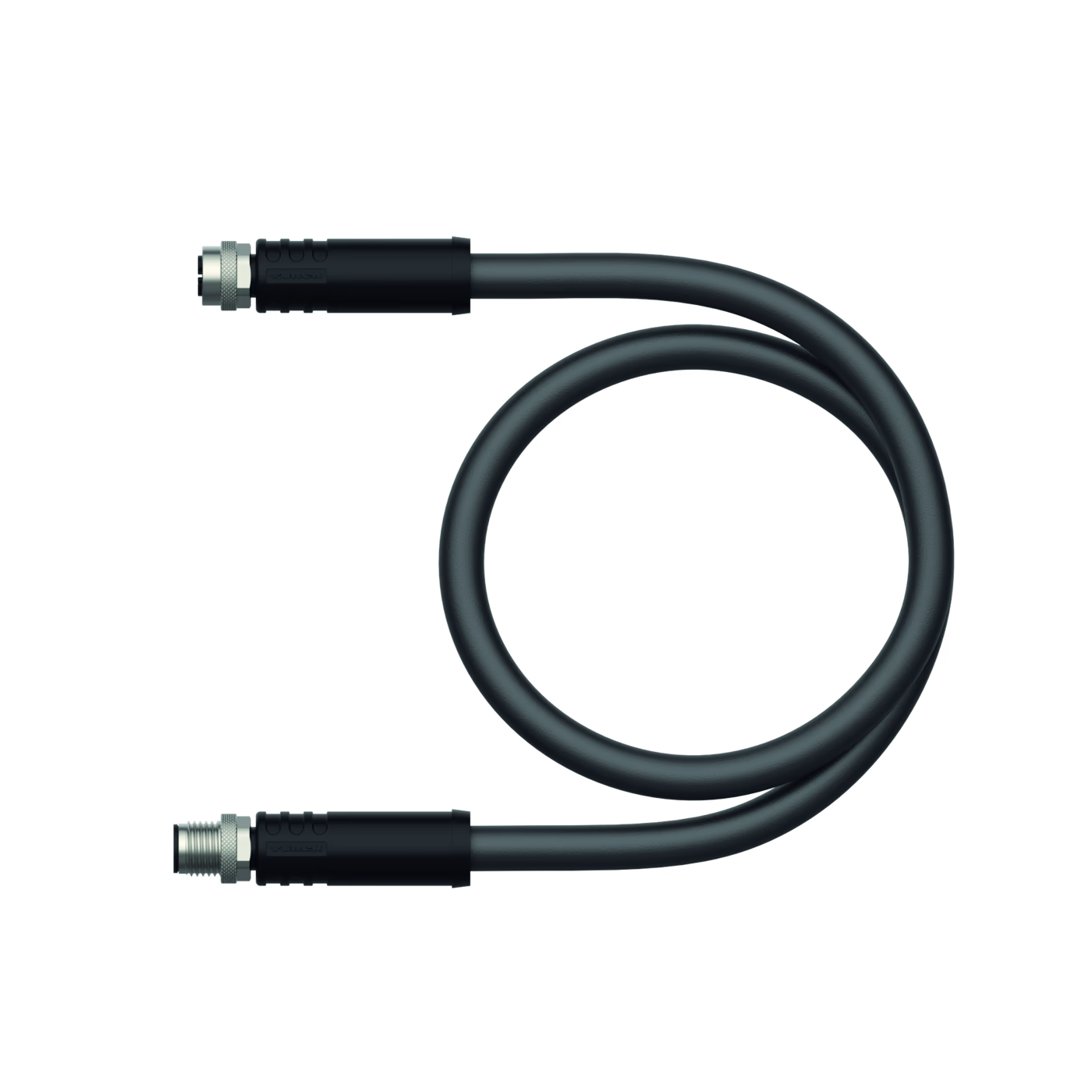

Supply Cable – M12 Power RKP44PLA-10-RSP44PLA/TXL
Supply Cable – M12 Power
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Application | Power |
| Cable color | Black |
| Cable length (m) | 10 |
| Cable quality | PUR |
| Connector A | Female, L-coded, M12×1, Straight |
| Connector B | L-coded, M12×1, Male, Straight |
| Coupling nut/screw material A | Brass |
| Coupling nut/screw material B | Brass |
| Current (A) | 16 |
| Design | Extension Cable |
| Number of Conductors | 4 |
| Number of pins | 4 |
| Plug body | Plastic |
| Special features | Suitable for drag chain use |
| Cable diameter (mm) | 8.7 |
| Core cross section mm? | 2.5 |
