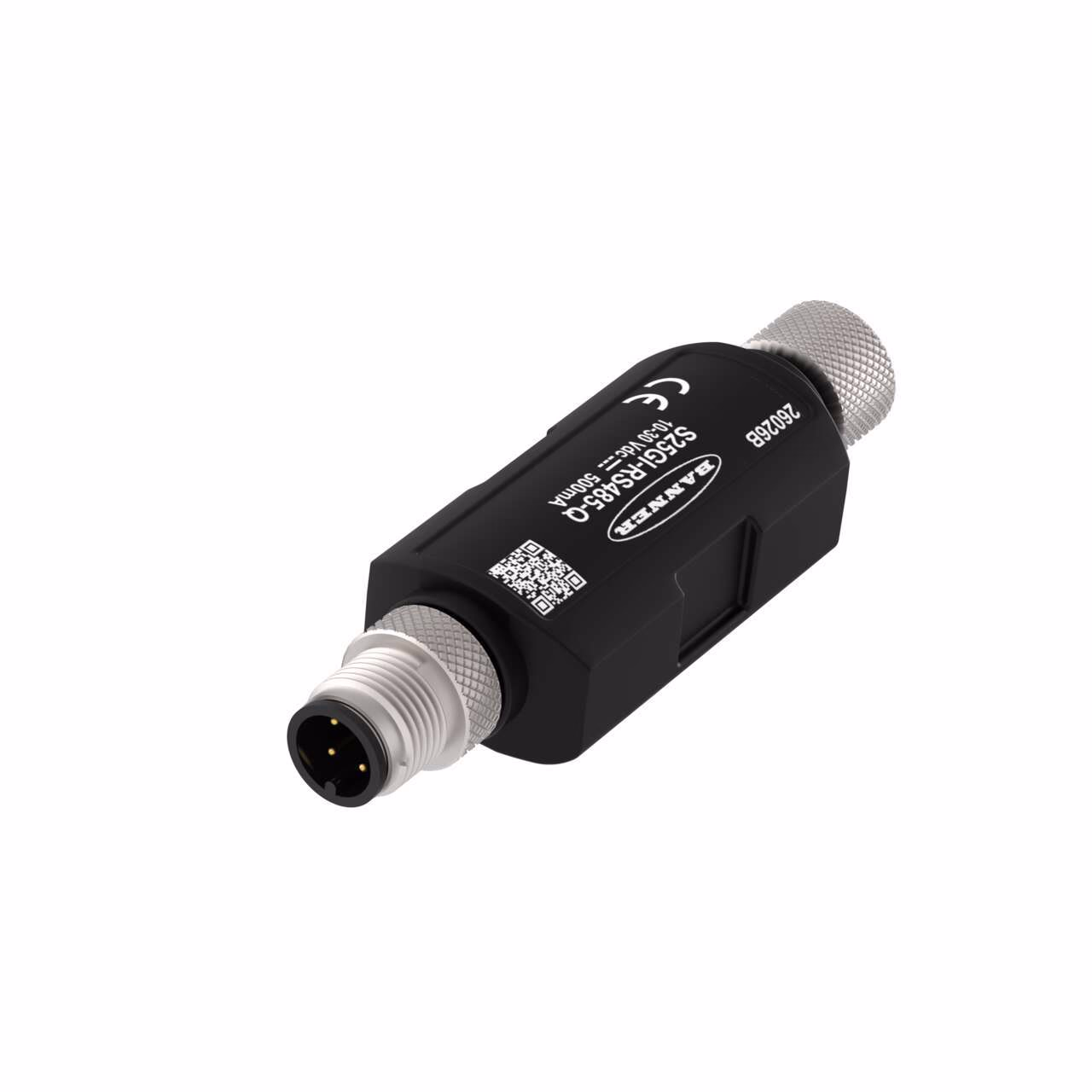

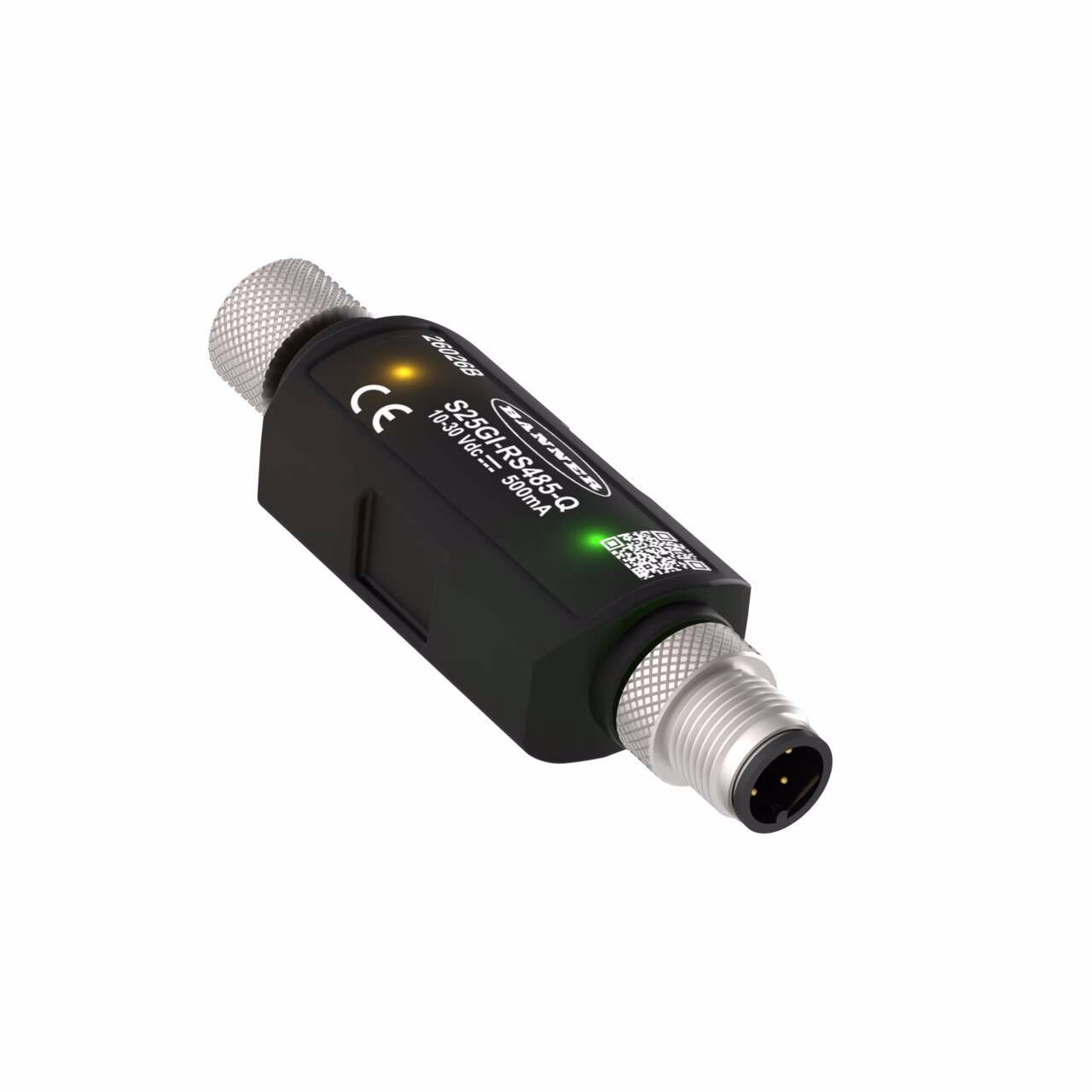

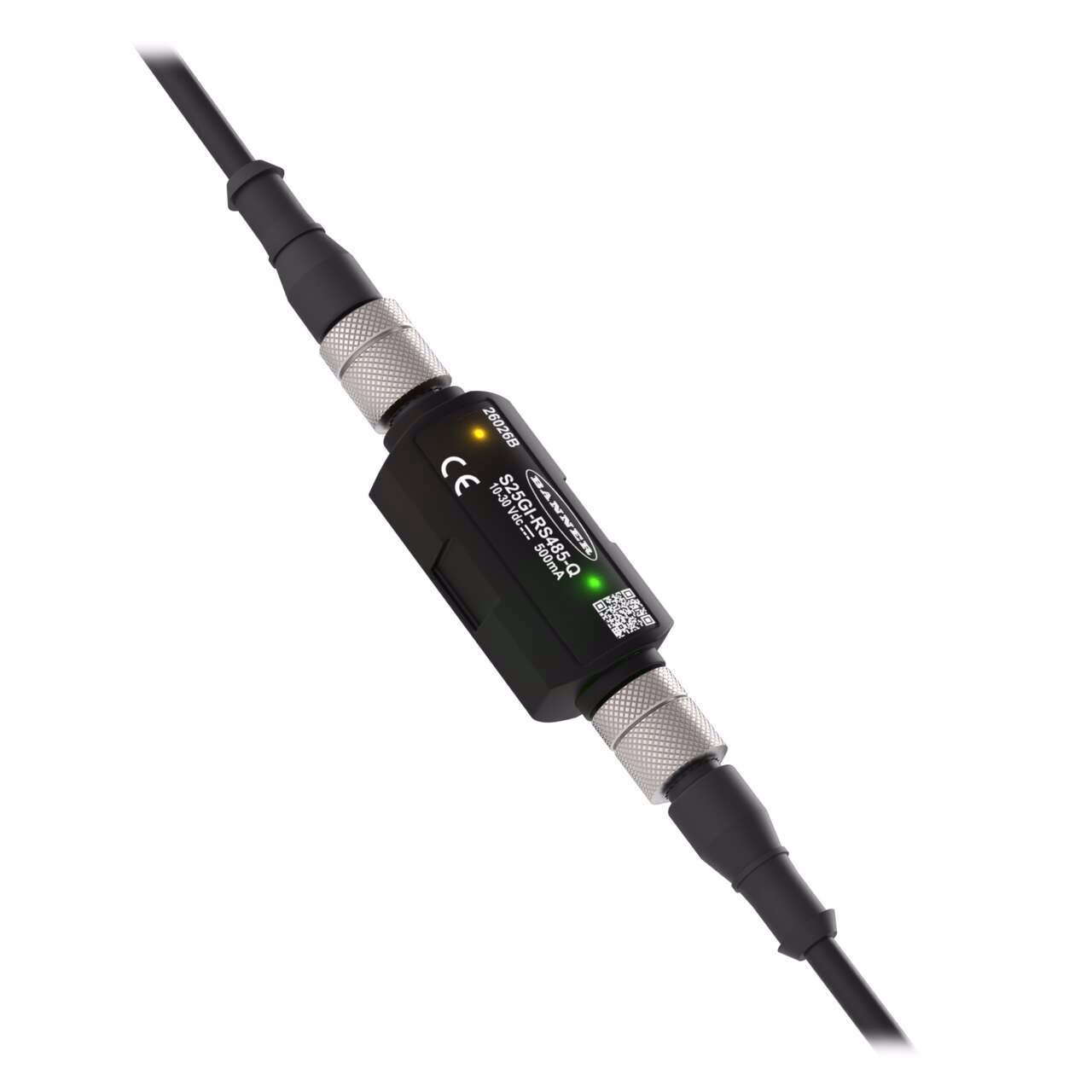

Suppressors, Filters & Isolators – Banner – S25GI-RS485-Q
RS-485 Galvanic Isolator
Voltage: 10-30 V dc; IP65/IP67/IP68
Input: RS-485; Output: RS-485
Female-Male 5-pin M12 QD
| Connector 2 Gender | Male |
|---|---|
| Connector B | Female |
| Item Status | RELEASED |
| Operating voltage | 10-30 V dc |
| Protection class shaft | IP65, IP67, IP68 |
| Connector 1 | Integral M12 |
| Function | Galvanic Isolator |
| Form Factor | S25 |
| Device Size (mm) | 25 x 85 |
| Connector 1 Pin Count | 5.0 |
| Connector 2 | Integral M12 |
| Connector 2 Pin Count | 5.0 |
Description
RS-485 Galvanic Isolator
Voltage: 10-30 V dc; IP65/IP67/IP68
Input: RS-485; Output: RS-485
Female-Male 5-pin M12 QD
