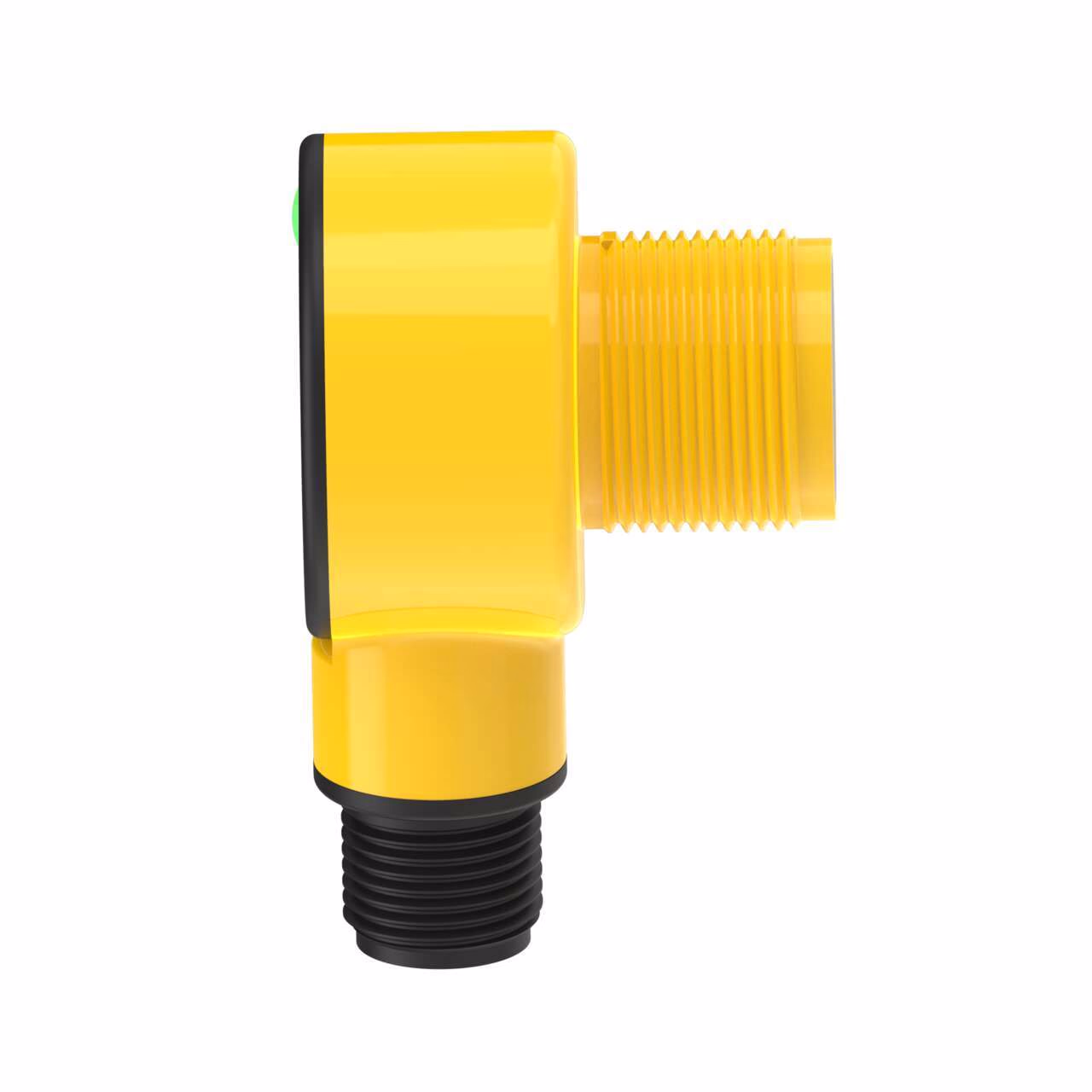

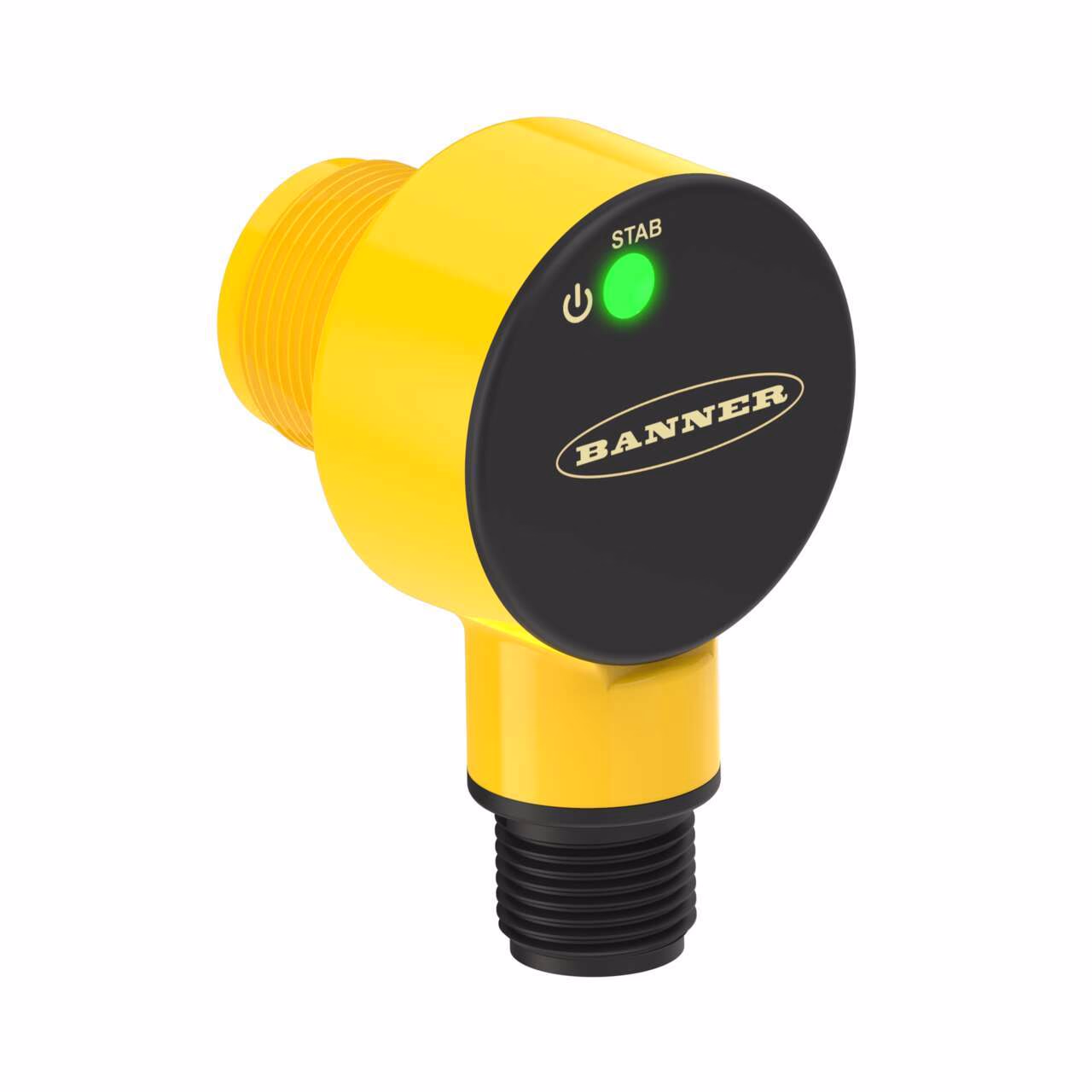

T18-2 Series Rugged, Washdown Sensors for Harsh Environments – Banner – T18-2NAELIR-Q8
T18-2 Series: IR Emitter; Long Range
Range: 25 m; Input: 10-30 V dc
Outputs: None
4-pin M12 Integral QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Emitter |
| DeviceNet | No |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Feature | Chemical Resistant, Ecolab Certified, Encapsulated, Quick Disconnect, Washdown Rated |
| Housing Style | Barrel |
| Indicator | Indicator LEDs |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 2 |
| Operating voltage | 10-30 V dc |
| Opposed Mode Emitter/Receiver | Emitter |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP68, IP69K |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Sensing Beam Wavelength | 850 |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 500 |
| Max Sensing Distance (mm) | 25000.0 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Barrel Diameter (mm) | 18.0 |
Description
T18-2 Series: IR Emitter; Long Range
Range: 25 m; Input: 10-30 V dc
Outputs: None
4-pin M12 Integral QD
