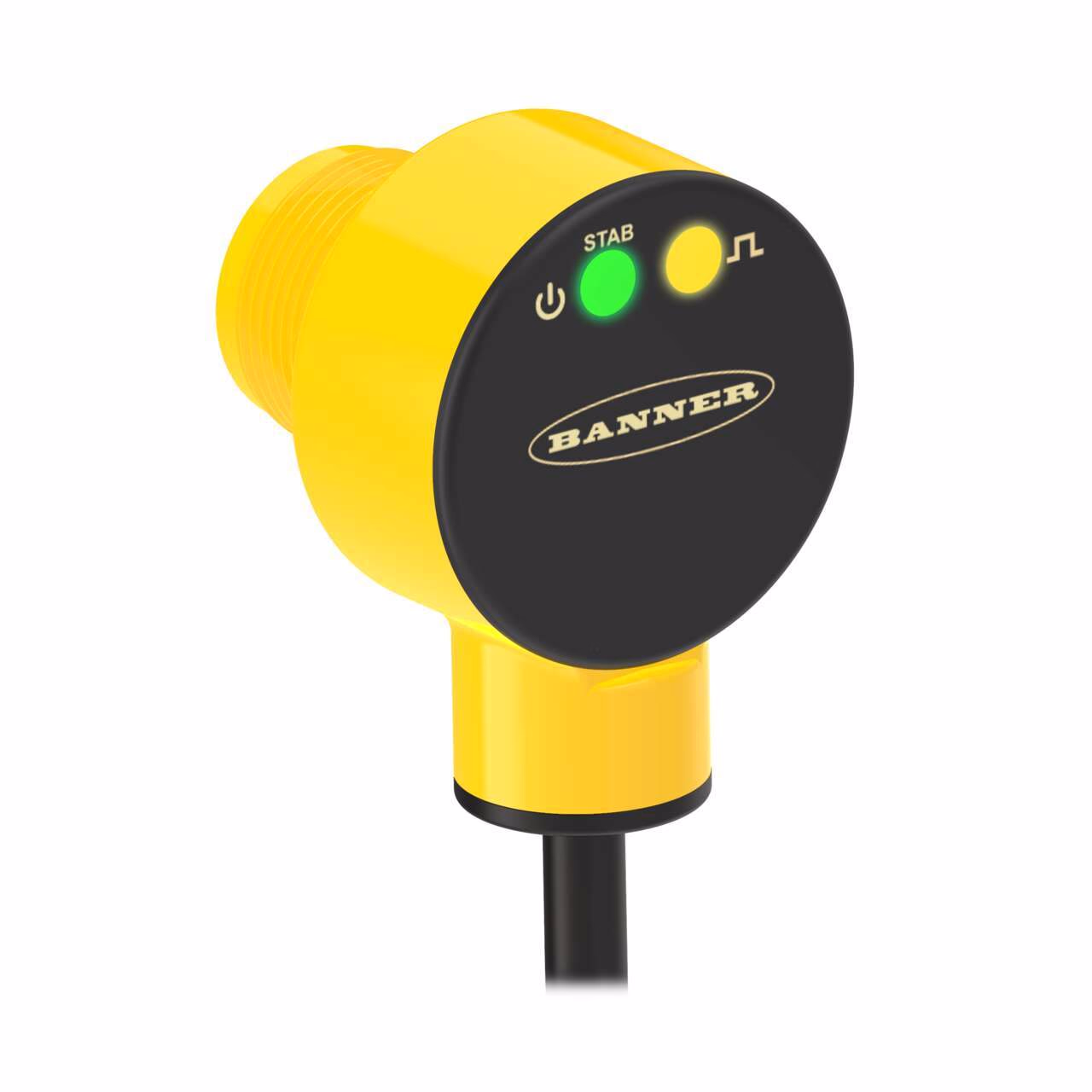

T18-2 Series Rugged, Washdown Sensors for Harsh Environments – Banner – T18-2VNRL-2M
T18-2 Series: Receiver
Range: 25 m; Input: 10-30 V dc
Outputs: complementary NPN
2 m 4-conductor PVC Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Outputs | NPN |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Receiver |
| DeviceNet | No |
| EPLAN Original Sent Date | 04/13/2022 |
| EPLAN Status | Published |
| Feature | Chemical Resistant, Ecolab Certified, Encapsulated, Washdown Rated |
| Homerun Exit Location | 1.5 |
| Housing Style | Barrel |
| Indicator | Indicator LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Opposed Mode Emitter/Receiver | Receiver |
| Power Good Output | DC |
| Protection class shaft | IP67, IP68, IP69K |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Visible Red or IR |
| Sensing Beam Wavelength | 624 |
| Min Op. Temperature (C) | -40 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 2 |
| Delay at Power-up (ms) | 500 |
| Max Sensing Distance (mm) | 25000 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Barrel Diameter (mm) | 18 |
Description
T18-2 Series: Receiver
Range: 25 m; Input: 10-30 V dc
Outputs: complementary NPN
2 m 4-conductor PVC Cable
