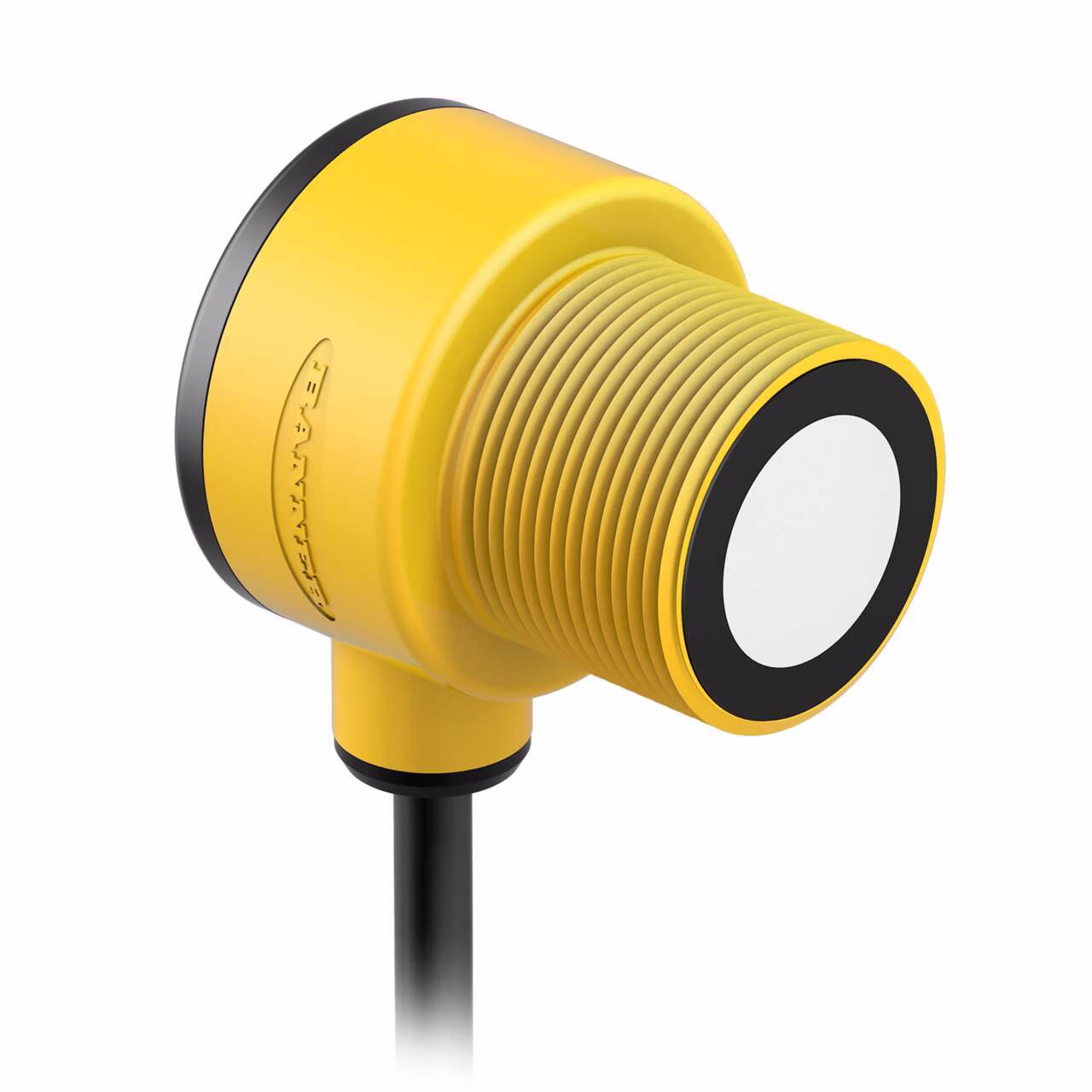

T30UX Series Temp Compensation Ultrasonic Sensor – Banner – T30UXDBQPMA
T30UX Series w/ Discrete Output
Range: 200 mm – 2 m; Input: 10-30 V dc
Output: NPN PNP NO NC selectable
150 mm (6 in) M12 PUR Pigtail QD
| Connection | Pigtail PUR QD |
|---|---|
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Jam Detection | No |
| Laser Control | No |
| Min Operating Temperature (C) | -40 |
| Minimum Sensing Distance (mm) | 200 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Ultrasonic Frequency (kHz) | 174 |
| Adjustments | Teach Button |
| Connection technology signal | Time of Flight |
| Device type | Sensor |
| Feature | Clear Object Detection, Quick Disconnect, Remote Teach |
| Housing Style | Barrel |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Network protocol | No |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | PBT |
| RS-232 | No |
| Screw-in thread | M30 |
| Sensing Beam | Ultrasonic |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 0.15 |
| Max Sensing Distance (mm) | 2000 |
| Minimum Response Time (ms) | 92 |
| Application.1 | Ultrasonic |
Description
T30UX Series w/ Discrete Output
Range: 200 mm – 2 m; Input: 10-30 V dc
Output: NPN PNP NO NC selectable
150 mm (6 in) M12 PUR Pigtail QD
