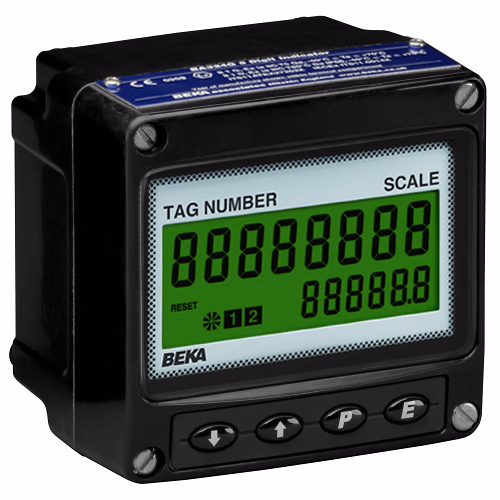

Tachometers, Intrinsically safe, field mounting – BA314E
Features:
Intrinsic safety certification
Proximity detector, open collector, magnetic pick-off, voltage pulse, or switch contact input.
Separate speed and run-time displays
Isolated synchronous pulse output
Optional:
Internally powered display backlightIsolated AlarmsIsolated 4/20mA outputStainless steel legend plate
‘E’ Product dimensions’G’ Product dimensionsNew application guide
| Approvals | ATEX, CCC, CCOE, ETL, IECEx, UKEX |
|---|---|
| Display | Speed: 8 digits 18mm highRun-time: 6 digits 12mm high |
| Protection class | IP66 |
| Brand | Beka |
| Mounting | Field |
| Options Available | Backlight, Alarms, 4-20mA Output, CCOE Dust |
Product details
These easy to use, intrinsically safe tachometers can display speed in engineering units from a wide variety of pulse output sensors such as a proximity detector or switch contact. To simplify maintenance, the instruments also contain a second display which can simultaneously show the run-time of the monitored machinery. International certification allows worldwide installation.
Accessories, include a display backlight, isolated dual alarms and an isolated 4/20mA output.
Tachometers can be supplied configured and fitted with a customer specified printed scale card showing the units of measurement for no additional charge. An optional Stainless Steel legend plate is also available which can be supplied laser engraved with customer specified tag and application information.
