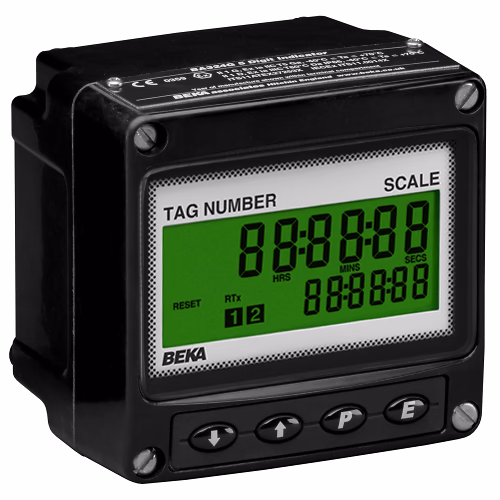

Timer or Clock, General Purpose, field mounting – BA574G
Features:
Reliable and cost effective
Proximity detector, open collector, magnetic pick-off, voltage pulse, or switch contact input.
Two separate displays
Two inputs
Isolated dual Control Outputs
Isolated status output
Optional:
Internally powered display backlightStainless steel legend plate
New application guide
| Display | 8 digits 18mm highand 6 digits 12mm high |
|---|---|
| Protection class | IP66 |
| Brand | Beka |
| Mounting | Field |
| Options Available | Backlight |
Product details
This versatile general purpose instrument can perform a host of timing and control functions such as sampling or dosing within a process area. An easy to use state and event structure enables relatively complex timing functions to be easily configured. Timing operations may be started and stopped via the inputs, or from the front panel buttons. The instrument display shows progress of the operation.
An internally powered backlight is available as a factory fitted accessory.
Timer or Clocks can be supplied configured and fitted with a customer specified printed scale card showing the units of time for no additional charge. An optional Stainless Steel legend plate is also available which can be supplied laser engraved with customer specified tag and application information.
