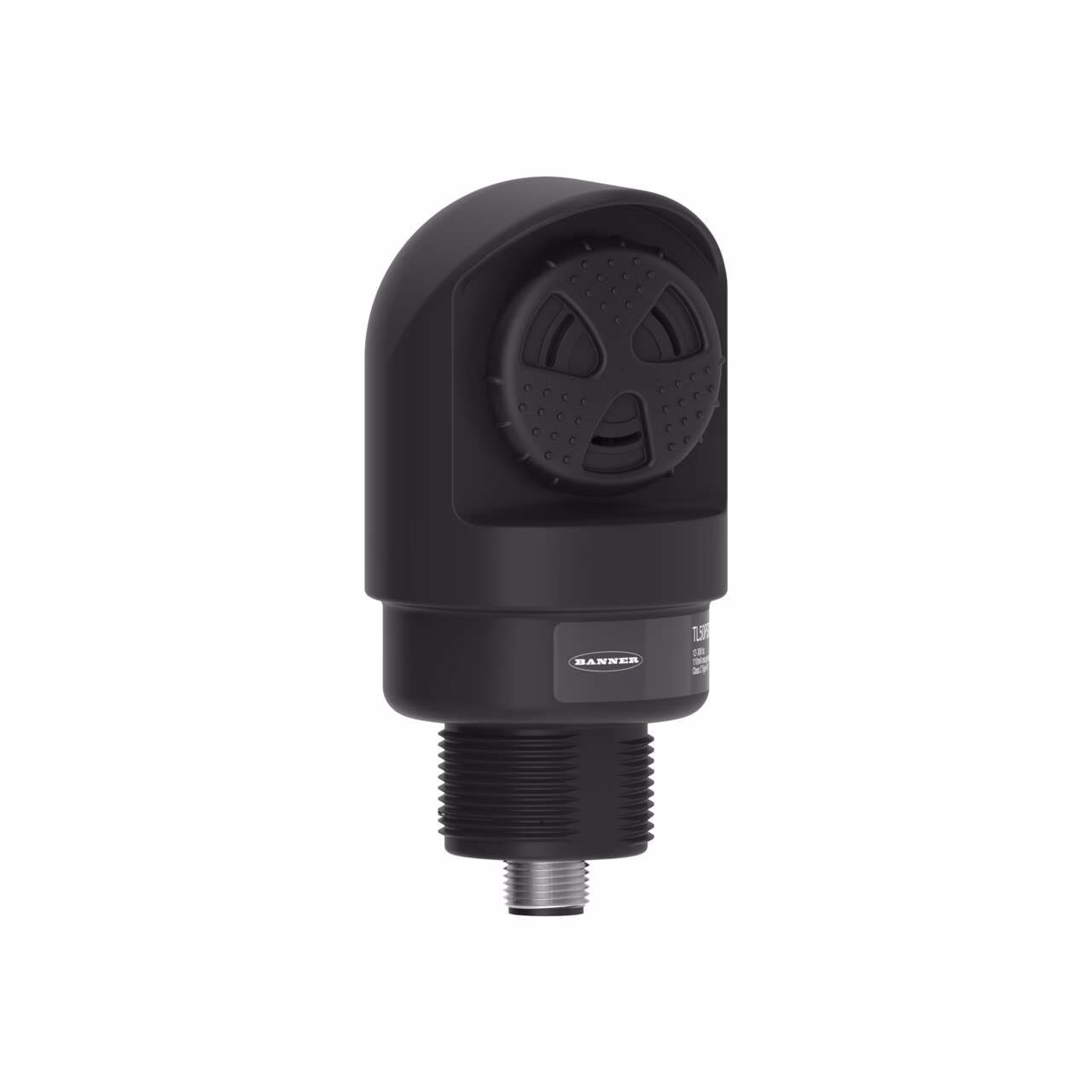

TL50 Core Series 50 mm LED Tower Light – Banner – TL50ALSQ
TL50 Tower Light: Sealed Audible Indicator
Voltage: 12-30 V dc or 24 V ac; Environmental Rating: IP67
Input: Bimodal
M12 Integral QD
| Audible Alarm Type | Continuous |
|---|---|
| Connection | Integral QD |
| Feature: Audible | Audible Only |
| Input Type | Bimodal (PNP/NPN) |
| Primary Housing Color | Black |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Environmental Rating | IP67 |
| EPLAN Original Sent Date | 12/18/2023 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Tower |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Max Audible Intensity (dB at 1m) | 94 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Min Audible Intensity (dB at 1m) | 74 |
| Mounting | M30 x 1.5 |
| Non-Illuminated | Yes |
| Number of Conductors | 4 |
| Operating voltage | 12-30 V dc / 24 V ac |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 101.7 |
| Port | M12 |
| Power Good Output | DC or AC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | ABS |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA and UL 13 |
| High Temperature (up to 100 C) | 50 |
| Product Size (mm) | 50 |
| Touchscreen | No |
| USB | No |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 10 |
| Number of Tower Light Segments | 1 |
| Switching frequency (kHz) | 2.9 |
| Max Current - Audible Alarm (mA) | 35 |
Description
TL50 Tower Light: Sealed Audible Indicator
Voltage: 12-30 V dc or 24 V ac; Environmental Rating: IP67
Input: Bimodal
M12 Integral QD
