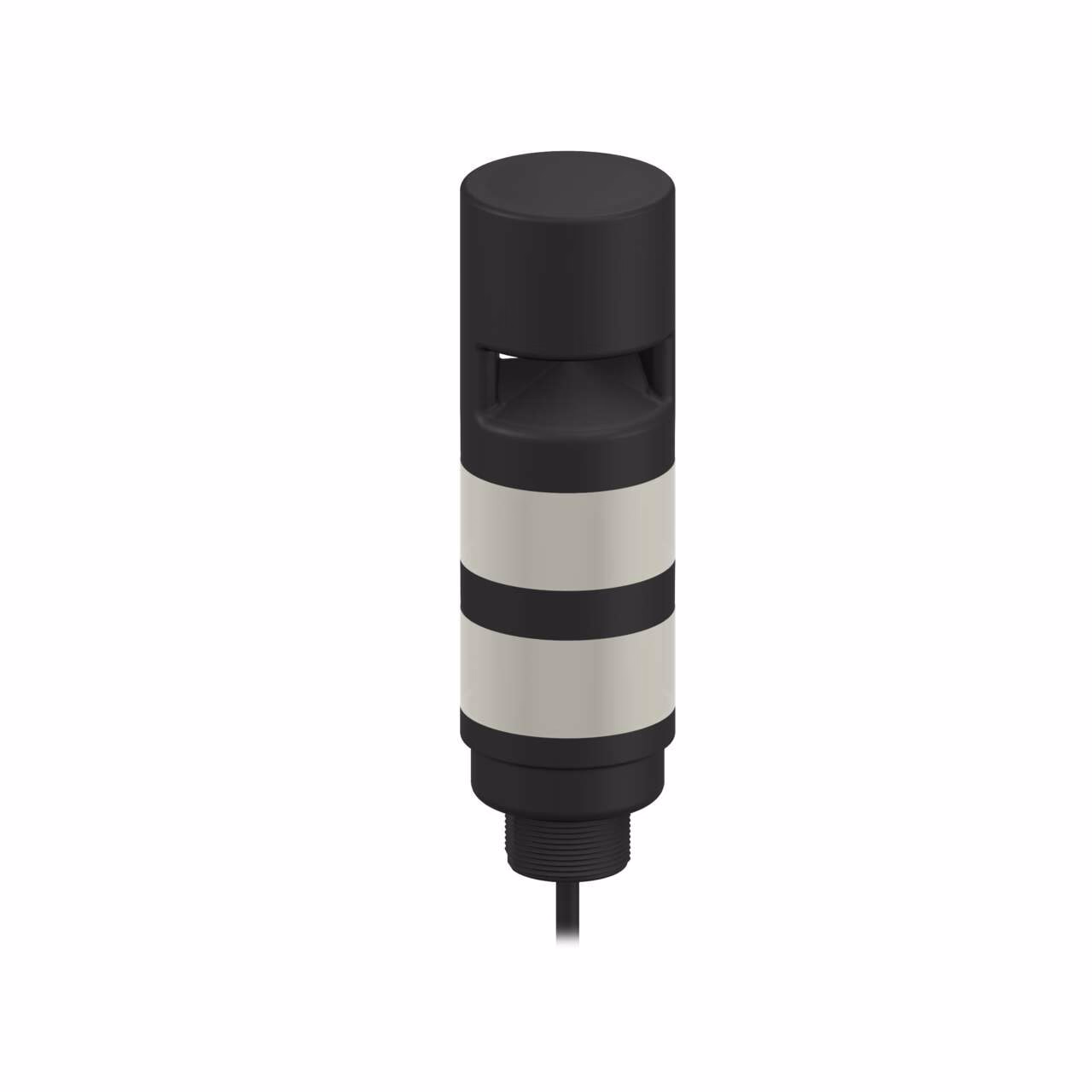

TL50 Core Series 50 mm LED Tower Light – Banner – TL50GRAOSI
TL50 Tower Light: 2-Color Sealed Omnidirectional
Continuous Audible Indicator w/ Intensity Adjust
Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP67
Input: Bimodal; Colors: Green Red
2 m (6.5 ft) Integral Cable
| Audible Alarm Type | Adjustable Continuous |
|---|---|
| Color Option 2 | Red |
| Color Technology | Standard LED |
| Connection | Cable |
| Feature: Audible | Yes |
| Input Type | Bimodal (PNP/NPN) |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | No |
| Animation Option 1 | Solid On |
| Animation Option 2 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 528 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 625 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Green |
| Environmental Rating | IP67 |
| Eye Shield | No |
| Housing Style | Base Mount – Tower |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lumens Color 1 | 23.0 |
| Lumens Color 2 | 7.5 |
| Max Audible Intensity (dB at 1m) | 95.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Min Audible Intensity (dB at 1m) | 83.0 |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | 2 |
| Number of Conductors | 4.0 |
| Operating voltage | 18-30 V dc / 24 V ac |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 188.9 |
| Power Good Output | DC or AC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | ABS |
| Slot width (mm) | 2 |
| Switching frequency (kHz) | 2.1 |
| Touchscreen | No |
| Number of Tower Light Segments | 3.0 |
| USB | No |
| Min Op. Temperature (C) | -20.0 |
| NEMA / UL Type Rating | NEMA and UL 13 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 45.0 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 10.0 |
| Max Current - Audible Alarm (mA) | 45.0 |
Description
TL50 Tower Light: 2-Color Sealed Omnidirectional
Continuous Audible Indicator w/ Intensity Adjust
Voltage: 18-30 V dc or 24 V ac; Environmental Rating: IP67
Input: Bimodal; Colors: Green Red
2 m (6.5 ft) Integral Cable
