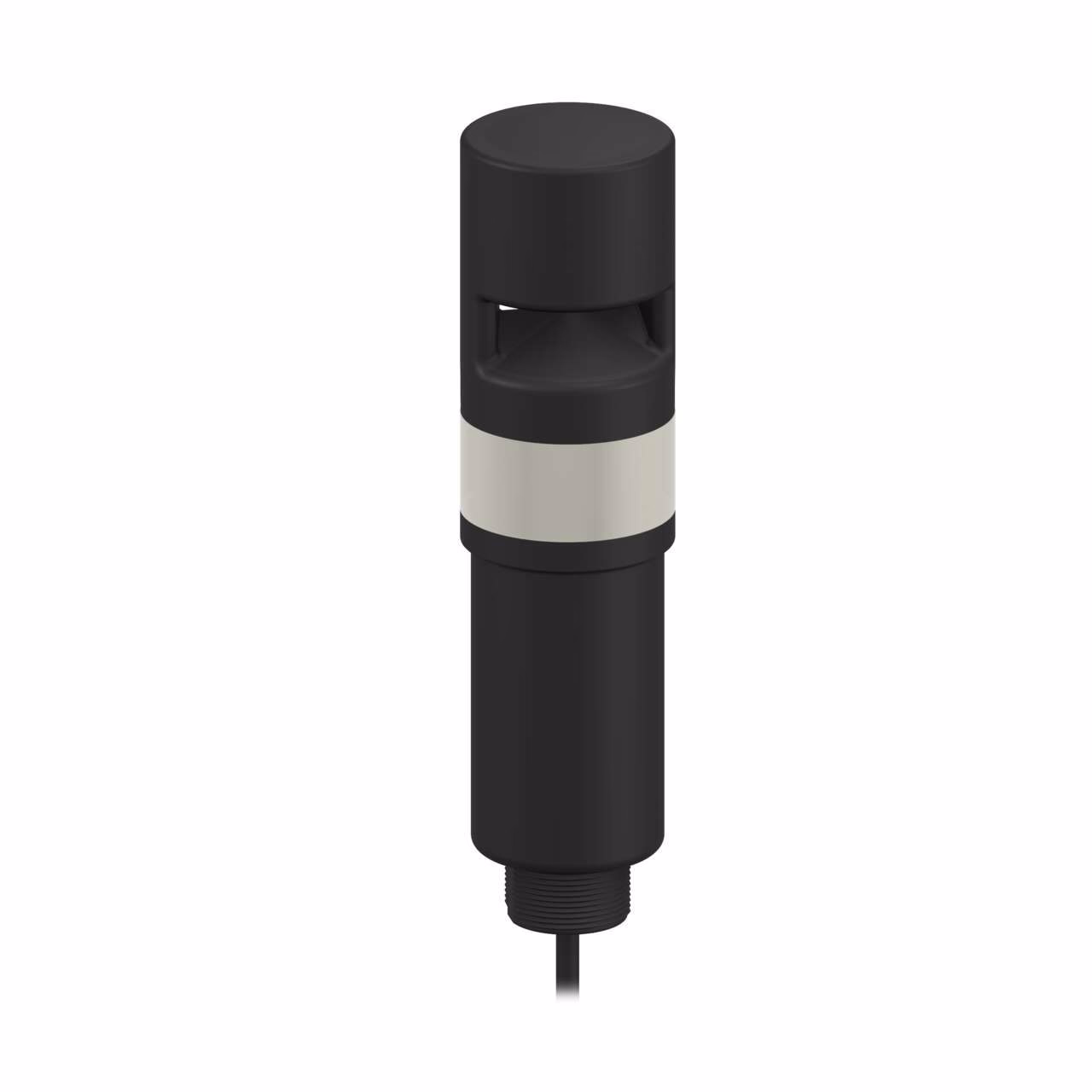

TL50 Core Series 50 mm LED Tower Light – Banner – TL50HZRAOSIQP
TL50 High Intensity Tower Light: 1-Color Sealed
Omnidirectional Continuous Audible Indicator w/Intensity Adjust
Voltage: 100-240 V ac; Environmental Rating: IP67
Colors: Red
150 mm (6 in) Micro PVC Pigtail QD
| Audible Alarm Type | Adjustable Continuous |
|---|---|
| Color Technology | Standard LED |
| Connection | Pigtail QD |
| Feature: Audible | Yes |
| Input Type | AC |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | No |
| Animation Option 1 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 625 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Red |
| Environmental Rating | IP67 |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Tower |
| Indication | Yes |
| Indication Intensity | High Brightness |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lumens Color 1 | 32.0 |
| Max Audible Intensity (dB at 1m) | 95.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Min Audible Intensity (dB at 1m) | 83.0 |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 4.0 |
| Operating voltage | 100-240 V ac |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 202.7 |
| Port | 1/2 in. (Micro) |
| Power Good Output | AC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | ABS |
| Slot width (mm) | 0.15 |
| Switching frequency (kHz) | 2.1 |
| Touchscreen | No |
| Number of Tower Light Segments | 2.0 |
| USB | No |
| Min Op. Temperature (C) | -20.0 |
| NEMA / UL Type Rating | NEMA and UL 13 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 60.0 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 500.0 |
| Max Current - Audible Alarm (mA) | 45.0 |
Description
TL50 High Intensity Tower Light: 1-Color Sealed
Omnidirectional Continuous Audible Indicator w/Intensity Adjust
Voltage: 100-240 V ac; Environmental Rating: IP67
Colors: Red
150 mm (6 in) Micro PVC Pigtail QD
