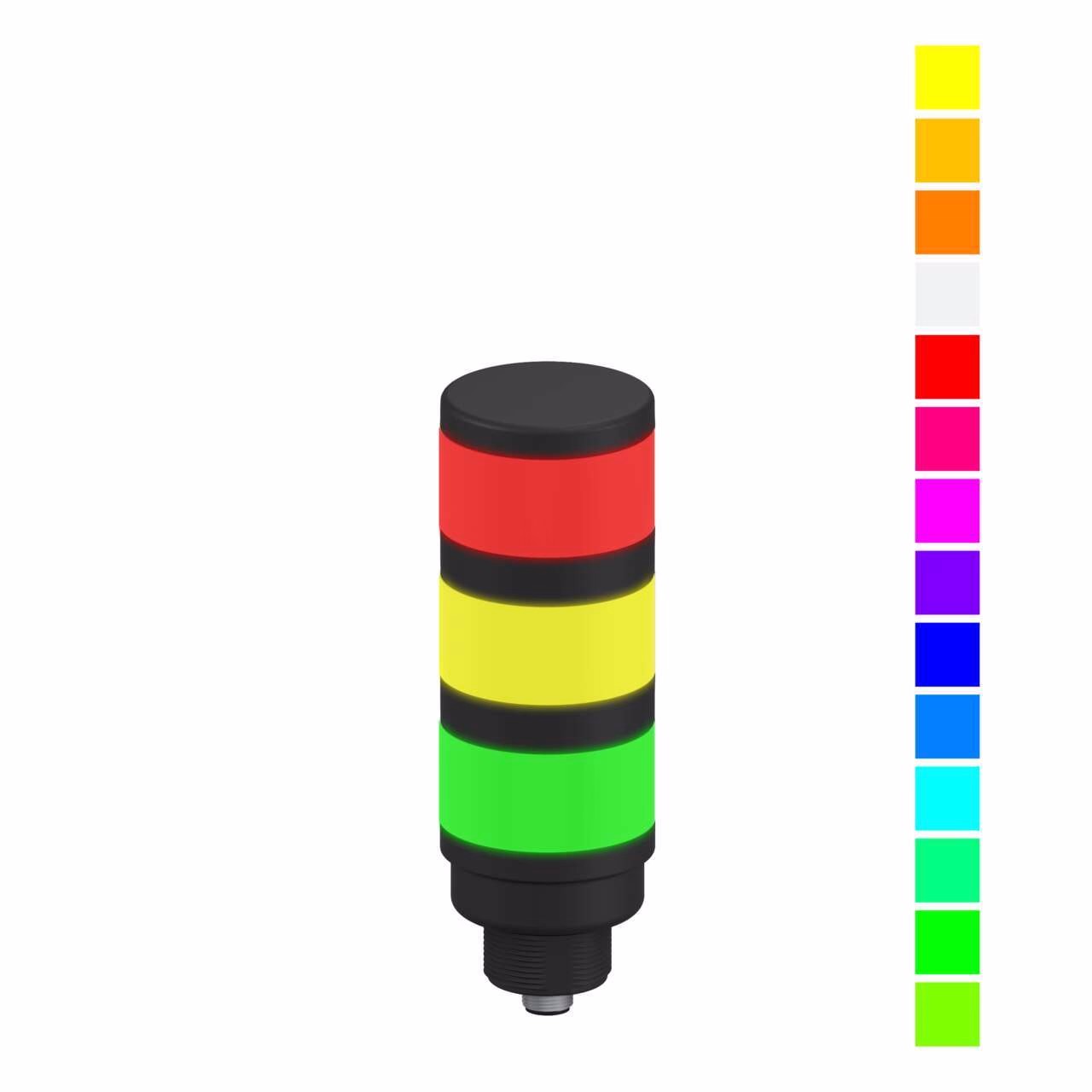

TL50 Pro Series 50 mm Programmable Tower Light – Banner – TL503KQ
TL50 Tower Light IO-Link Series, Black Housing: 3-Color Indicator
Voltage: 18-30 V dc; Environmental Rating: IP67
Colors: Multicolor
4-pin M12 Integral QD
| Color Technology | RGB IO-Link |
|---|---|
| Connection | Integral QD |
| Dimming Option | Programmable |
| Feature: Audible | No |
| Input Type | Communication Protocol |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | No |
| Animation Option 1 | Programmable |
| Color Input Control | Communication Protocol |
| Color Option 1 | RGB |
| Environmental Rating | IP67 |
| EPLAN Original Sent Date | 06/08/2023 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Tower |
| Indication | Yes |
| IO Link | Yes |
| Item Status | RELEASED |
| Light type | No |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | 3 |
| Number of Conductors | 4 |
| Operating voltage | 18-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 169.9 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | ABS |
| Min Op. Temperature (C) | -40 |
| NEMA / UL Type Rating | NEMA and UL 13 |
| High Temperature (up to 100 C) | 50 |
| Product Size (mm) | 50 |
| Touchscreen | No |
| USB | No |
| Max Current Color (mA) | 100 |
| Max Input Response Time (ms) | 20 |
| Number of Tower Light Segments | 3 |
Description
TL50 Tower Light IO-Link Series, Black Housing: 3-Color Indicator
Voltage: 18-30 V dc; Environmental Rating: IP67
Colors: Multicolor
4-pin M12 Integral QD
