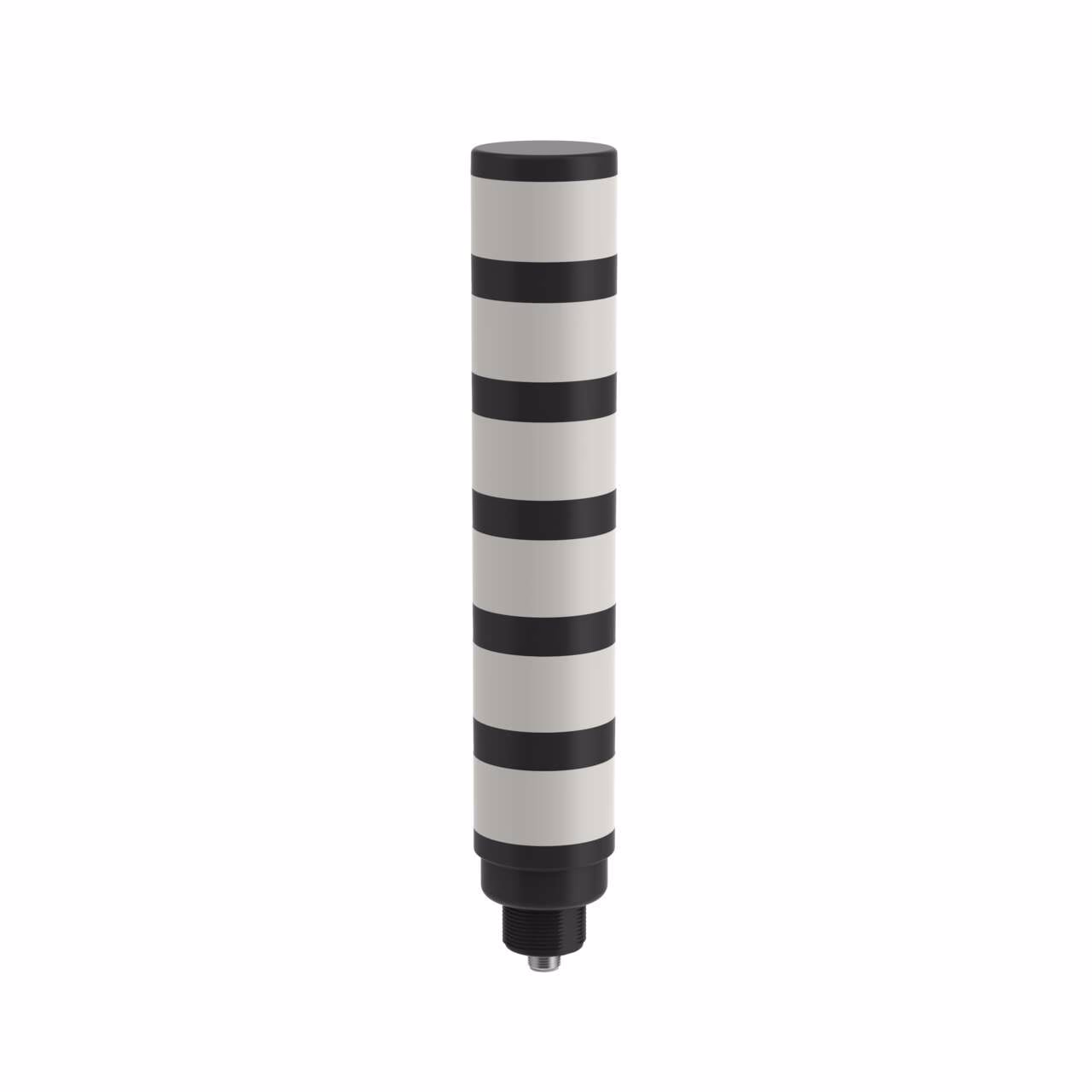

TL50 Pro Series 50 mm Programmable Tower Light – Banner – TL50P6Q
TL50 Pro Tower Light, Standard Black Housing: 6 Segment
Voltage: 10-30 V dc; Environ. Rating: IP67
Colors: Multicolor
8-pin M12 Integral QD
| Color 5 - Wavelength/Color Temp/Coordinates | 576 nm |
|---|---|
| Color Option 2 | White |
| Color Option 5 | Yellow |
| Color Technology | RGB Configurable |
| Connection | Integral QD |
| Feature: Audible | No |
| Input Type | Bimodal (PNP/NPN) |
| Lumens Color 5 | 23.8 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | Yes |
| Color 1 - Wavelength/Color Temp/Coordinates | 599 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 5700K |
| Color 3 - Wavelength/Color Temp/Coordinates | 466 nm |
| Color 4 - Wavelength/Color Temp/Coordinates | 522 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Orange |
| Color Option 3 | Blue |
| Color Option 4 | Green |
| Environmental Rating | IP67 |
| EPLAN Original Sent Date | 05/29/2025 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Tower |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lumens Color 1 | 11.3 |
| Lumens Color 2 | 24.8 |
| Lumens Color 3 | 3.4 |
| Lumens Color 4 | 17.5 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | 6 |
| Number of Conductors | 8.0 |
| Operating voltage | 10-30 V dc |
| PFM Input | Yes |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 292.0 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | ABS |
| Touchscreen | No |
| Number of Tower Light Segments | 6.0 |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | NEMA and UL 13 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 220.0 |
| Max Input Response Time (ms) | 250.0 |
| Lumens Color 6 | 7.2 |
| Color Option 6 | Red |
| Color 6 - Wavelength/Color Temp/Coordinates | 620 nm |
Description
TL50 Pro Tower Light, Standard Black Housing: 6 Segment
Voltage: 10-30 V dc; Environ. Rating: IP67
Colors: Multicolor
8-pin M12 Integral QD
