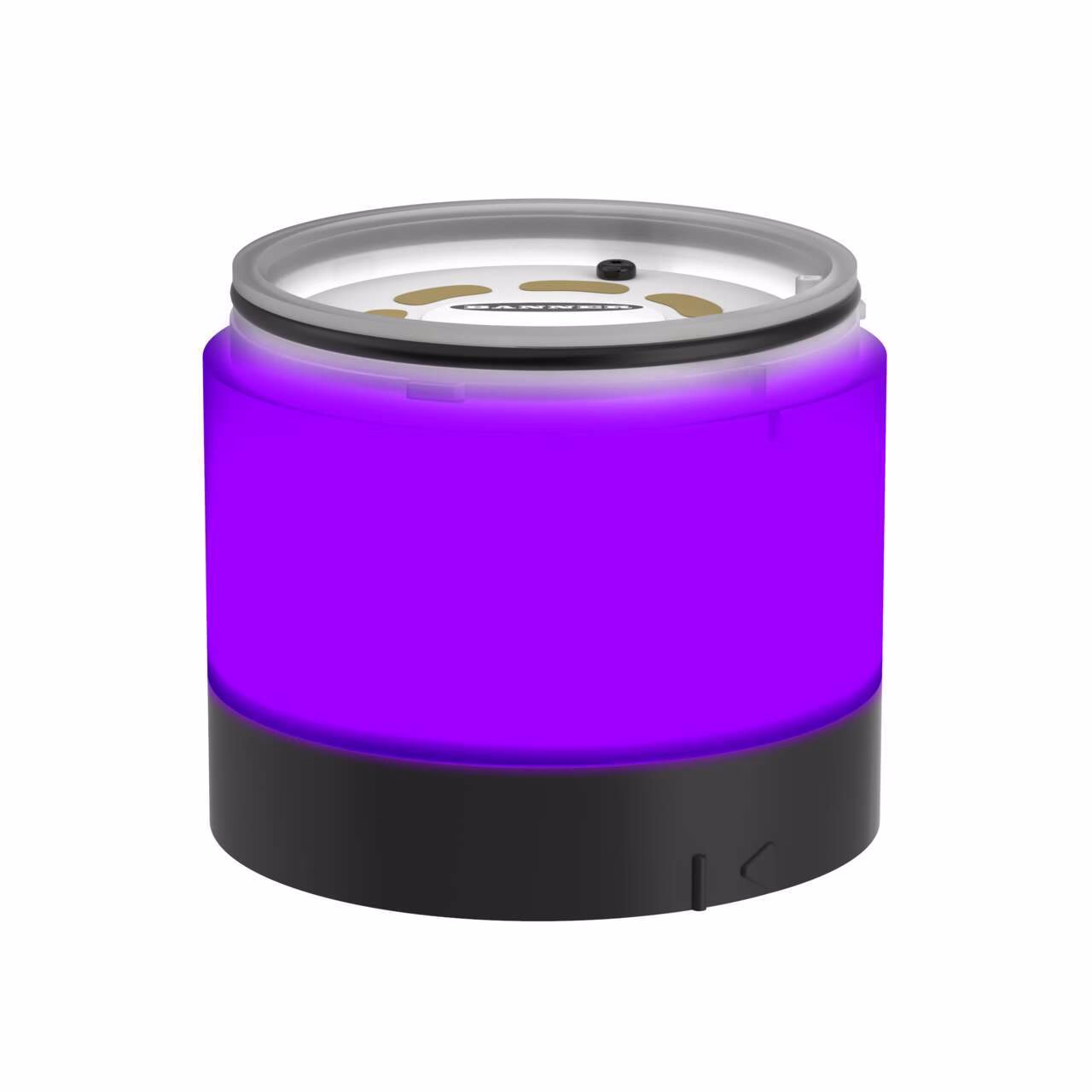

TL70 Basic Series 70mm Tower Lights – Banner – SG-TL70B-V
TL70 Basic Light Module; Color: Violet
Voltage: 12-30 V dc; Environmental Rating: IP65
Steady On/Flashing
Black Housing; Use with B-TL70B-Q5, B-TL70B-Q8 or B-TL70BK-Q bases
| Color Technology | Standard LED |
|---|---|
| Feature: Audible | No |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Product Type | B |
| Animation Option 1 | Dip-Switch Controlled |
| Color 1 - Wavelength/Color Temp/Coordinates | 0.214, 0.133 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Violet |
| Eye Shield | No |
| Housing Style | Segment – Light |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Light Module |
| Lumens Color 1 | 28.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Modbus RTU | No |
| Mounting | No Thread |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 50.0 |
| Power Good Output | DC |
| Programmable | No |
| Protection class shaft | IP65 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Number of Tower Light Segments | 1.0 |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 70 |
| Max Current Color (mA) | 120.0 |
| Storage Temp (C) | -40 to 70 |
Description
TL70 Basic Light Module; Color: Violet
Voltage: 12-30 V dc; Environmental Rating: IP65
Steady On/Flashing
Black Housing; Use with B-TL70B-Q5, B-TL70B-Q8 or B-TL70BK-Q bases
