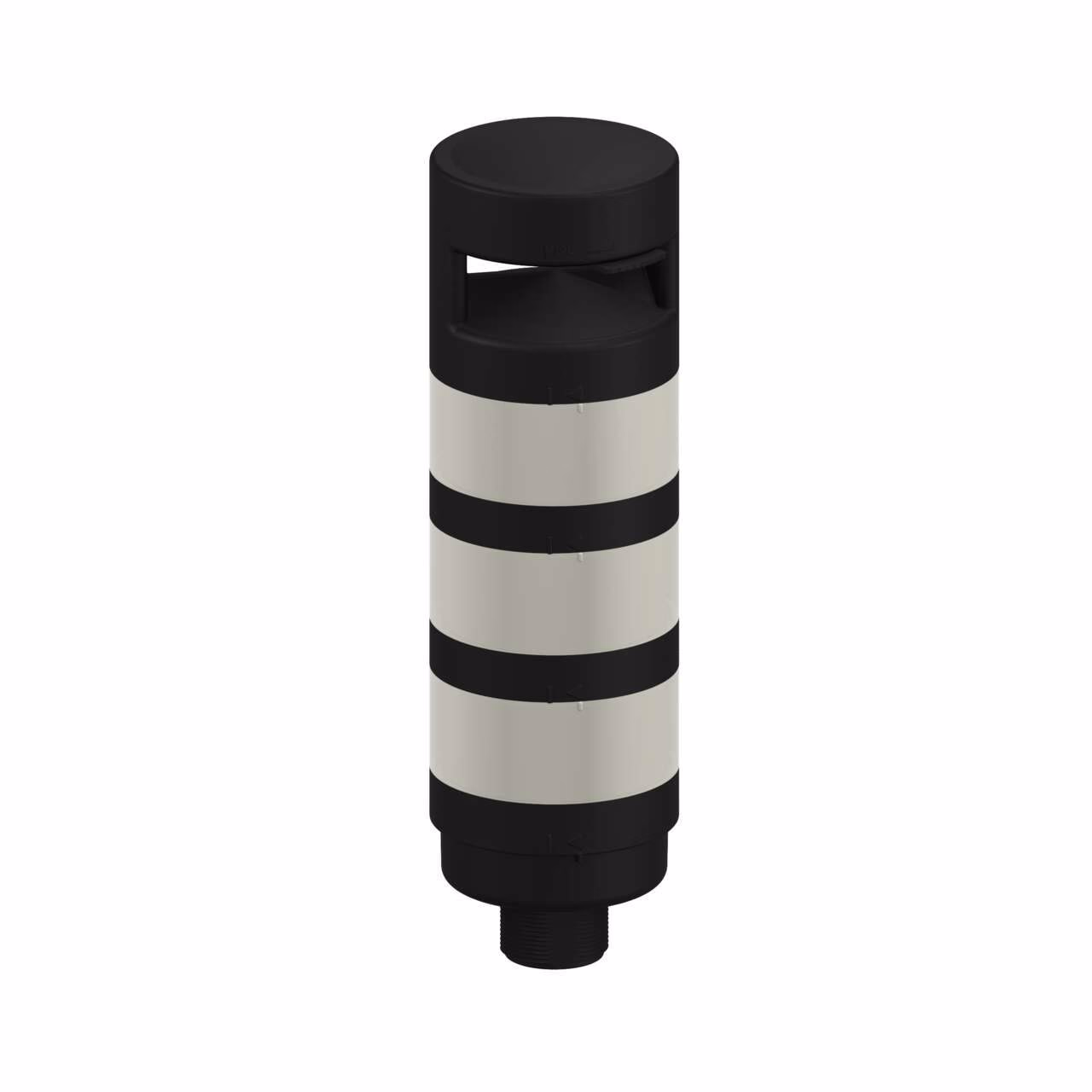

TL70 Core Series 70mm Modular Tower Lights – Banner – TL70RYGALT
TL70 Tower Light; Black Housing: 3-Color Loud Audible Indicator
Voltage: 12-30 V dc; Environmental Rating: IP65
Input: Bimodal; Colors: Red Yellow Green
8 Screw Terminal Wiring
| Audible Alarm Type | Multitone Loud Audible |
|---|---|
| Color Option 2 | Yellow |
| Color Technology | Standard LED |
| Connection | Terminal |
| Feature: Audible | Yes |
| Input Type | Bimodal (PNP/NPN) |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Animation Option 1 | Dip-Switch Controlled |
| Animation Option 2 | Dip-Switch Controlled |
| Animation Option 3 | Dip-Switch Controlled |
| Color 1 - Wavelength/Color Temp/Coordinates | 625 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 590 nm |
| Color 3 - Wavelength/Color Temp/Coordinates | 525 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Red |
| Color Option 3 | Green |
| Environmental Rating | IP65 |
| Eye Shield | No |
| Housing Style | Base Mount – Tower |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Modular Tower Light |
| Lumens Color 1 | 40 |
| Lumens Color 2 | 22 |
| Lumens Color 3 | 92 |
| Max Audible Intensity (dB at 1m) | 101 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Min Audible Intensity (dB at 1m) | 85 |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | 3 |
| Number of Conductors | 5 |
| Operating voltage | 12-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 268.6 |
| Power Good Output | DC |
| Programmable | No |
| Protection class shaft | IP65 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Min Op. Temperature (C) | -40 |
| High Temperature (up to 100 C) | 50 |
| Product Size (mm) | 70 |
| Touchscreen | No |
| USB | No |
| Max Current Color (mA) | 420 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 180 |
| Number of Tower Light Segments | 4 |
| Switching frequency (kHz) | 2.6 |
| Max Current - Audible Alarm (mA) | 350 |
Description
TL70 Tower Light; Black Housing: 3-Color Loud Audible Indicator
Voltage: 12-30 V dc; Environmental Rating: IP65
Input: Bimodal; Colors: Red Yellow Green
8 Screw Terminal Wiring
