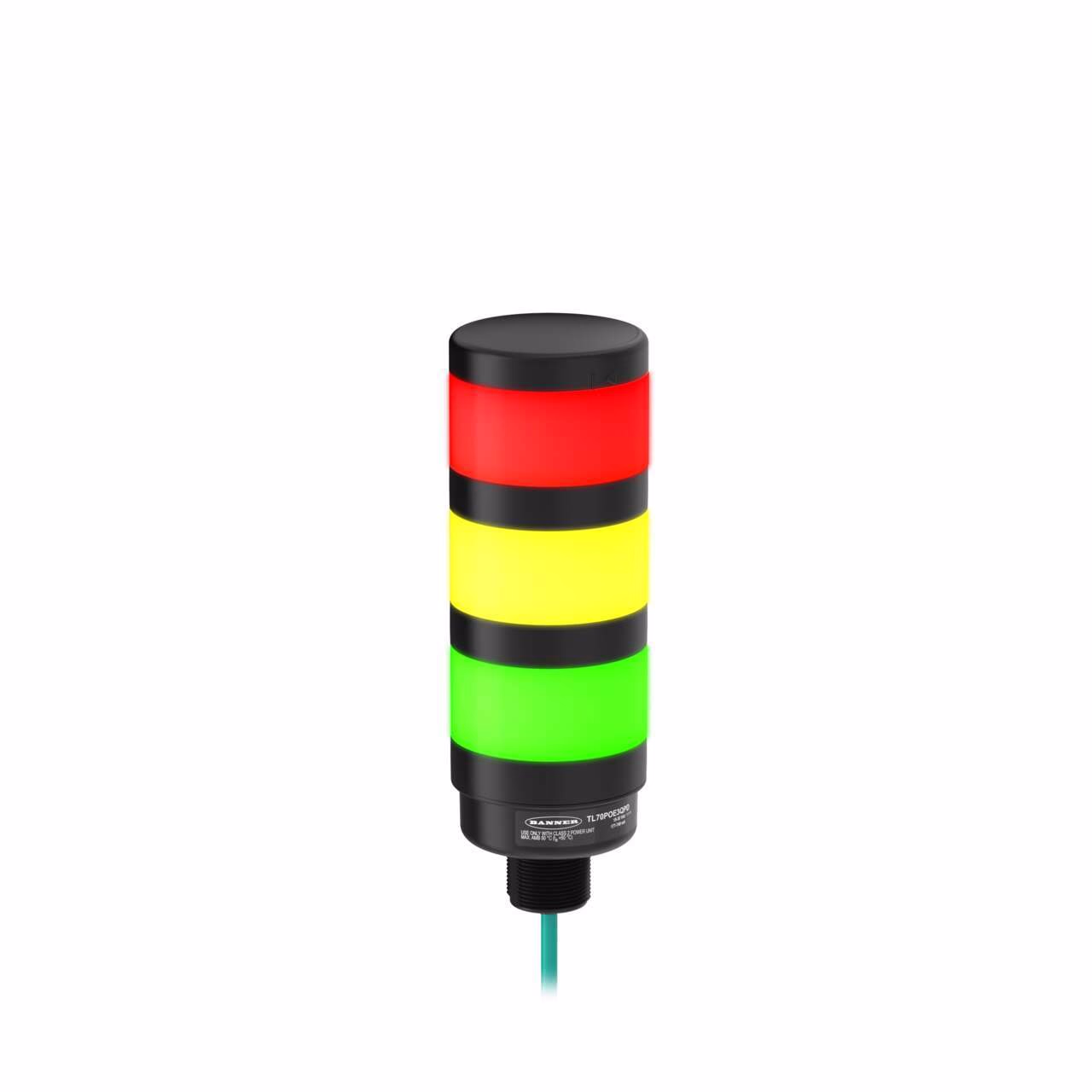

TL70 Pro Series 70mm Tower Lights – Banner – TL70POE3QPD
TL70 Pro Tower Light Power Over Ethernet; 3 RGB LED Segments
Voltage: 37-57 V dc; IP65; Black Housing; Colors: 14-color RGB
PVC Pigtail, 475 mm (18.7 in) 4-pin M12 D-Code Female
Black Housing
| Color Technology | RGB Configurable |
|---|---|
| Connection | Pigtail QD |
| Dimming Option | Ethernet IP Controlled |
| Feature: Audible | No |
| Input Type | Communication Protocol |
| Power Over Ethernet (PoE) | Yes |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Animation Option 1 | Ethernet IP Controlled |
| Color Input Control | Communication Protocol |
| Color Option 1 | RGB |
| EPLAN Original Sent Date | 02/14/2025 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Tower |
| Indication | Yes |
| IO Link | No |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Modular Tower Light |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | 14 |
| Number of Conductors | 4.0 |
| Operating voltage | 42.5-57 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 212.0 |
| Port | M12 |
| Power Good Output | DC |
| PROFINET | Yes |
| Programmable | Yes |
| Protection class shaft | IP65 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Number of Tower Light Segments | 3.0 |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 70 |
| Max Current Color (mA) | 425.0 |
| Storage Temp (C) | -40 to 70 |
| Options Available | Modbus |
Description
TL70 Pro Tower Light Power Over Ethernet; 3 RGB LED Segments
Voltage: 37-57 V dc; IP65; Black Housing; Colors: 14-color RGB
PVC Pigtail, 475 mm (18.7 in) 4-pin M12 D-Code Female
Black Housing
