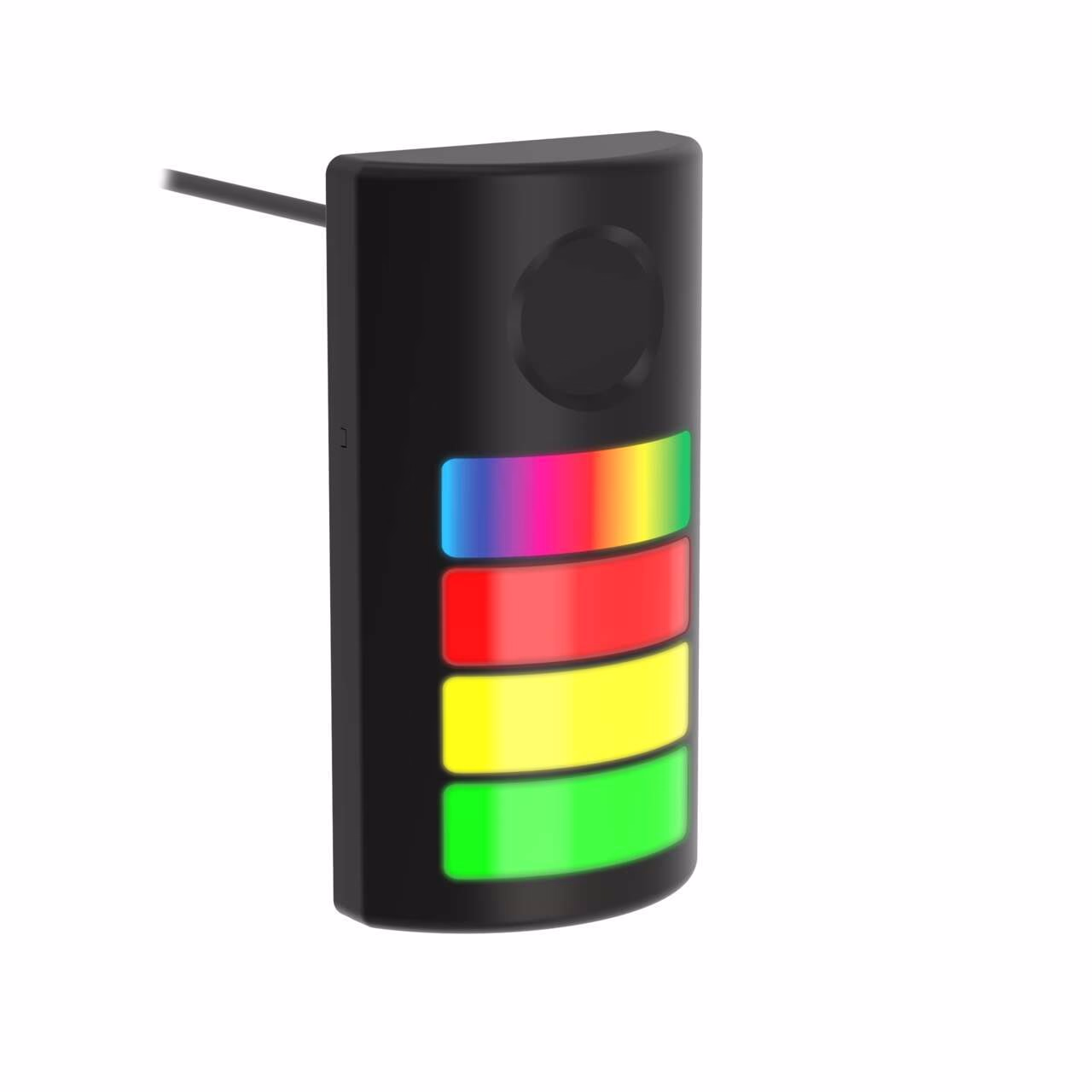

TLF100 Pro Flush Mount Tower Light – Banner – TLF100P4AKQP
TLF100 Pro with IO-Link
4 Lighted Segments with Audible; Black Housing; 18-30 V dc
Environ. Rating: IP65; IP69K; Colors: Multicolor
150 mm (6 in) 4-pin M12 PVC Pigtail QD
| Audible Alarm Type | Programmable |
|---|---|
| Color Technology | RGB IO-Link |
| Connection | Pigtail QD |
| Dimming Option | Programmable |
| Feature: Audible | Yes |
| Input Type | Communication Protocol |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | No |
| Animation Option 1 | IO-Link Controlled |
| Color Input Control | Communication Protocol |
| Environmental Rating | IP65; IP69K |
| EPLAN Original Sent Date | 12/07/2024 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Flat – Tower |
| Indication | Yes |
| IO Link | Yes |
| Item Status | RELEASED |
| Light type | No |
| Max Audible Intensity (dB at 1m) | 94.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Min Audible Intensity (dB at 1m) | 84.0 |
| Mounting | No Thread |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | 4 |
| Number of Conductors | 4.0 |
| Operating voltage | 18-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 100.0 x 190.0 x 42.2 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP65, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Slot width (mm) | 0.15 |
| Switching frequency (kHz) | 3.0 |
| Touchscreen | No |
| Number of Tower Light Segments | 5.0 |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | UL 4X |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 100 |
| Max Current Color (mA) | 150.0 |
| Max Input Response Time (ms) | 20.0 |
| Max Current - Audible Alarm (mA) | 56.0 |
Description
TLF100 Pro with IO-Link
4 Lighted Segments with Audible; Black Housing; 18-30 V dc
Environ. Rating: IP65; IP69K; Colors: Multicolor
150 mm (6 in) 4-pin M12 PVC Pigtail QD
