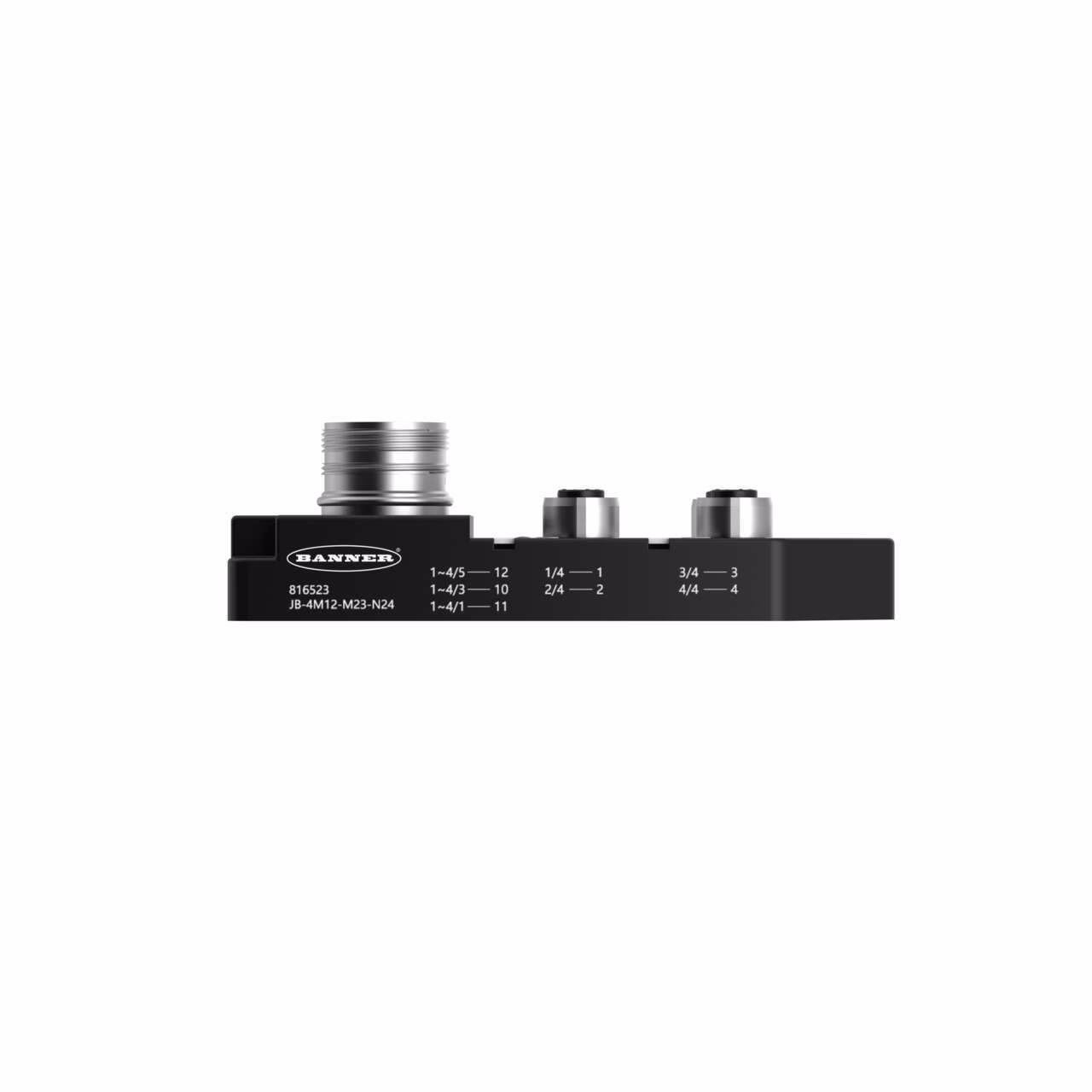

Top Exit – Banner – JB-4M12-M23-N24
Junction Box: 4-Port with LEDs
Homerun Connector: 12-pin M23 Male
4-Ports: 5-pin M12 Female NPN
8 Signal Contacts; 2 Channels per Port
| EPLAN Original Sent Date | 02/14/2025 |
|---|---|
| EPLAN Status | Published |
| Group terminal | Integral M23 |
| Item Status | RELEASED |
| Operating voltage | 10-30 V dc |
| Receptacle housing material B | PBT |
| Signal Port Type | M12 |
| Homerun Connector Pins | 12.0 |
| Signal Ports (Total) | 4.0 |
| Wiring Type | Discrete |
Description
Junction Box: 4-Port with LEDs
Homerun Connector: 12-pin M23 Male
4-Ports: 5-pin M12 Female NPN
8 Signal Contacts; 2 Channels per Port
