Touch Displays and Controllers – Banner – K50PTCD4UI4Q2PS

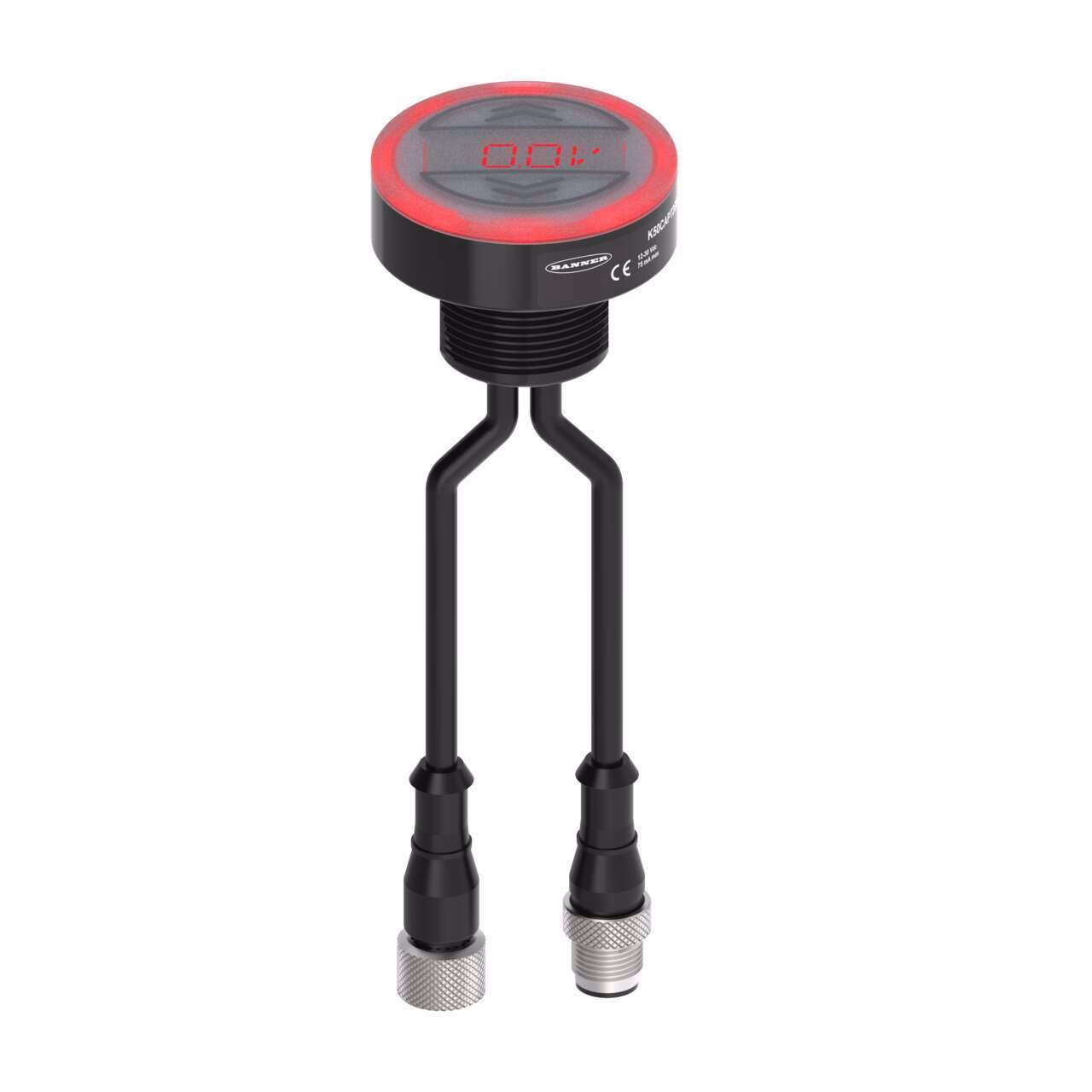

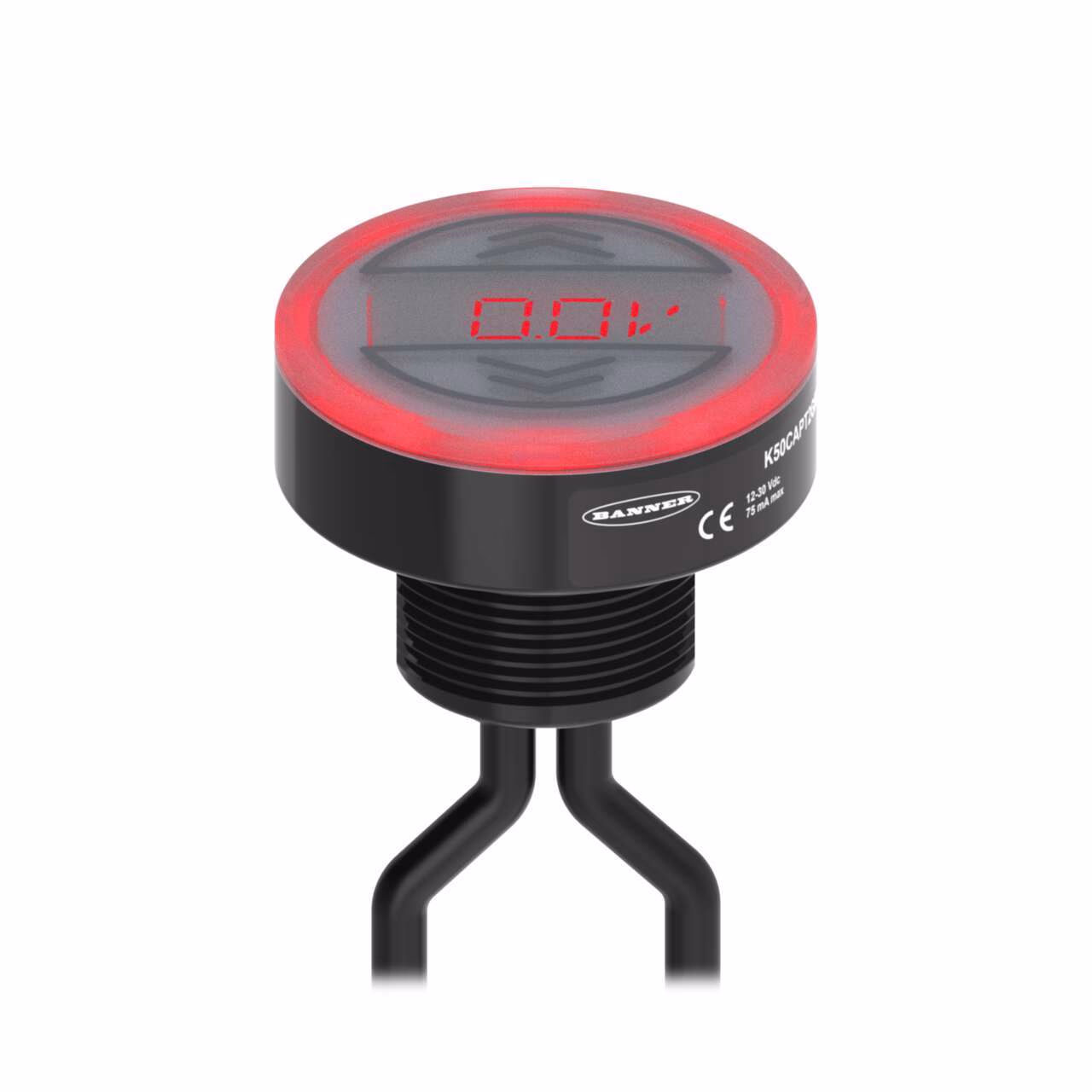

K50 I/O Touch Control with Display
Polycarbonate; 18-30 V dc; IP67, IP69K
4-digit 14-segment LED Display; Multicolor
240 mm (9.45 in) 5-pin M12 PVC Shielded Pigtail QDs, 0-10 V dc/4-20 mA Dimming Output Pin 4
| Analog | Yes |
|---|---|
| Connection | Integral QD |
| Feature: Audible | No |
| Pro-Editor Compatible (Discrete) | Yes |
| Animation Option 1 | Programmable |
| Color Option 1 | RGB |
| EPLAN Status | Published |
| Feature | Quick Disconnect |
| Housing Style | Compact |
| Indication | No |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Touch Button |
| Modbus RTU | No |
| Number of Conductors | 5.0 |
| Operating mode | Capacitive Touch |
| Operating voltage | 18-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Programmable | Yes |
| Touchscreen | Yes |
| Product Size (mm) | 50 |
Description
K50 I/O Touch Control with Display
Polycarbonate; 18-30 V dc; IP67, IP69K
4-digit 14-segment LED Display; Multicolor
240 mm (9.45 in) 5-pin M12 PVC Shielded Pigtail QDs, 0-10 V dc/4-20 mA Dimming Output Pin 4
