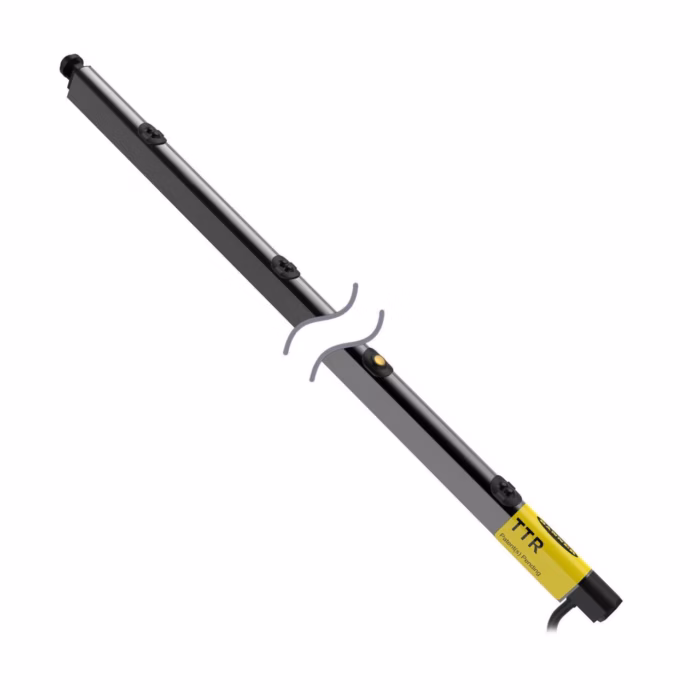

TTR Roller Conveyor Sensor – Banner – TTR653APSB7T-0.5Q5-063
TTR Series 7 Beam Sensor Array 25.7 in Between Frame
Beam Spacing: 93.1 mm; Standard Gain; Range: 120 mm
Output: LO PNP; Input: 18-30 V dc
0.5 m (1.6 ft) M12 Male Connector; Endcaps T: T-Slot Mounting
| Connection | Pigtail QD |
|---|---|
| Max Sensing Range (mm) | 120.0 |
| Outputs | PNP |
| Power Supply/Supply Voltage | 18-30 V dc |
| Connection technology signal | Diffuse |
| Feature | Quick Disconnect |
| Homerun Exit Location | 1 |
| Housing Style | Roller Conveyor |
| Indicator | Indicator LEDs |
| Item Status | RELEASED |
| Lens Material | Polycarbonate |
| Number of beams | 7.0 |
| Number of pins | 4 |
| Operation | Light Operate |
| Port | M12 |
| Protection class shaft | IP50 |
| Receptacle housing material B | Black Anodized Aluminum |
| Slot width (mm) | 0.5 |
| Min Op. Temperature (C) | -10.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 1500 |
| Max Op. Temperature (C) | 55.0 |
| Max op. relative humidity (%).1 | 95% @ 55°C |
| Slot Overall Depth (mm) | 12.0 |
| Slot Depth/Array Length (mm) | 647.0 |
| Distance to First Beam [mm] | 63.0 |
| Beam to Beam Spacing [mm] | 93.1 |
| Last Beam Distance (to End of Housing)(mm) | 25.35 |
| End Cap Type | T: T-Slot Mounting |
Description
TTR Series 7 Beam Sensor Array 25.7 in Between Frame
Beam Spacing: 93.1 mm; Standard Gain; Range: 120 mm
Output: LO PNP; Input: 18-30 V dc
0.5 m (1.6 ft) M12 Male Connector; Endcaps T: T-Slot Mounting
